KDFE105PPS0 02 – DOOR AND PANEL PARTS

KDFE105PPS0 02 – DOOR AND PANEL PARTS

Written by

in

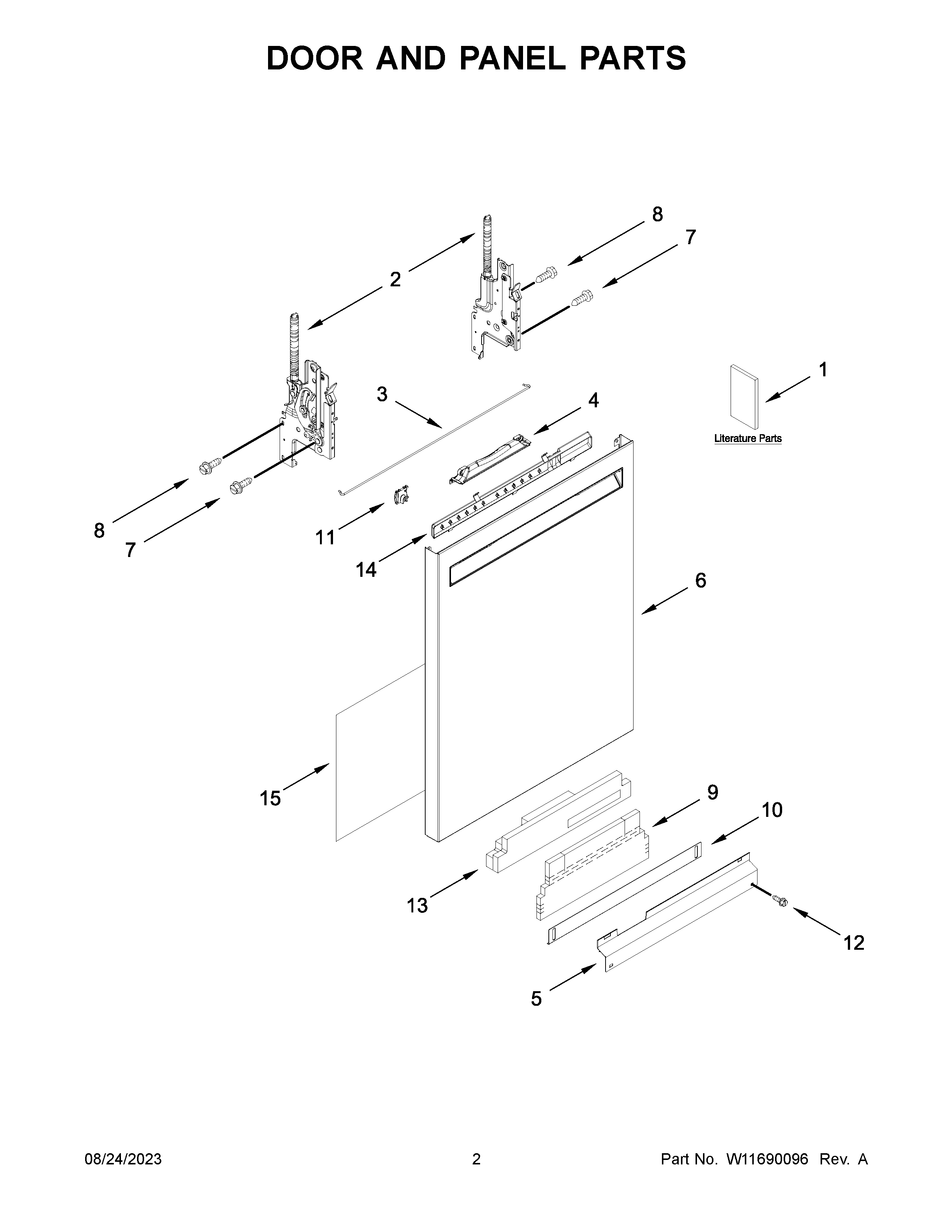

KDFE105PPS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11242122 Whirlpool Dishwasher Handle
5W11545318 Whirlpool Toekick Plate
6W11625194 Whirlpool Panel Assembly
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13W11573700 Whirlpool Shield
14W11731850 Whirlpool Cover Assembly
15W10919861 Whirlpool Insulation Pad
