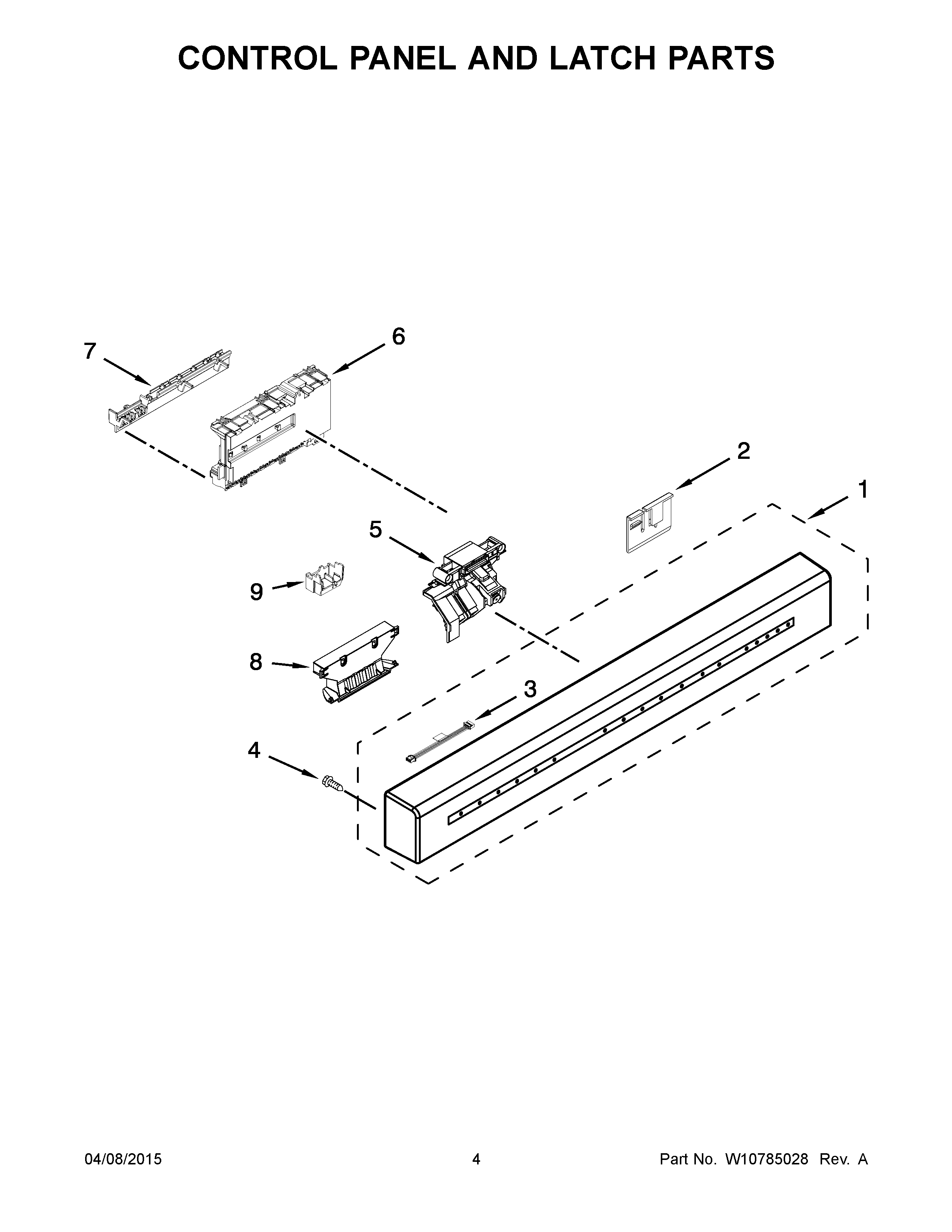

KDFE204EBL0 03 – CONTROL PANEL AND LATCH PARTS

KDFE204EBL0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDFE204EBL0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BCONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
1AW10740182 Whirlpool Dishwasher Control Panel
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2W11256107 Whirlpool Dishwasher Clip
3W10528492 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10854229 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10537379 Whirlpool Dishwasher Handle
9W10783730 Whirlpool Dishwasher Connector
