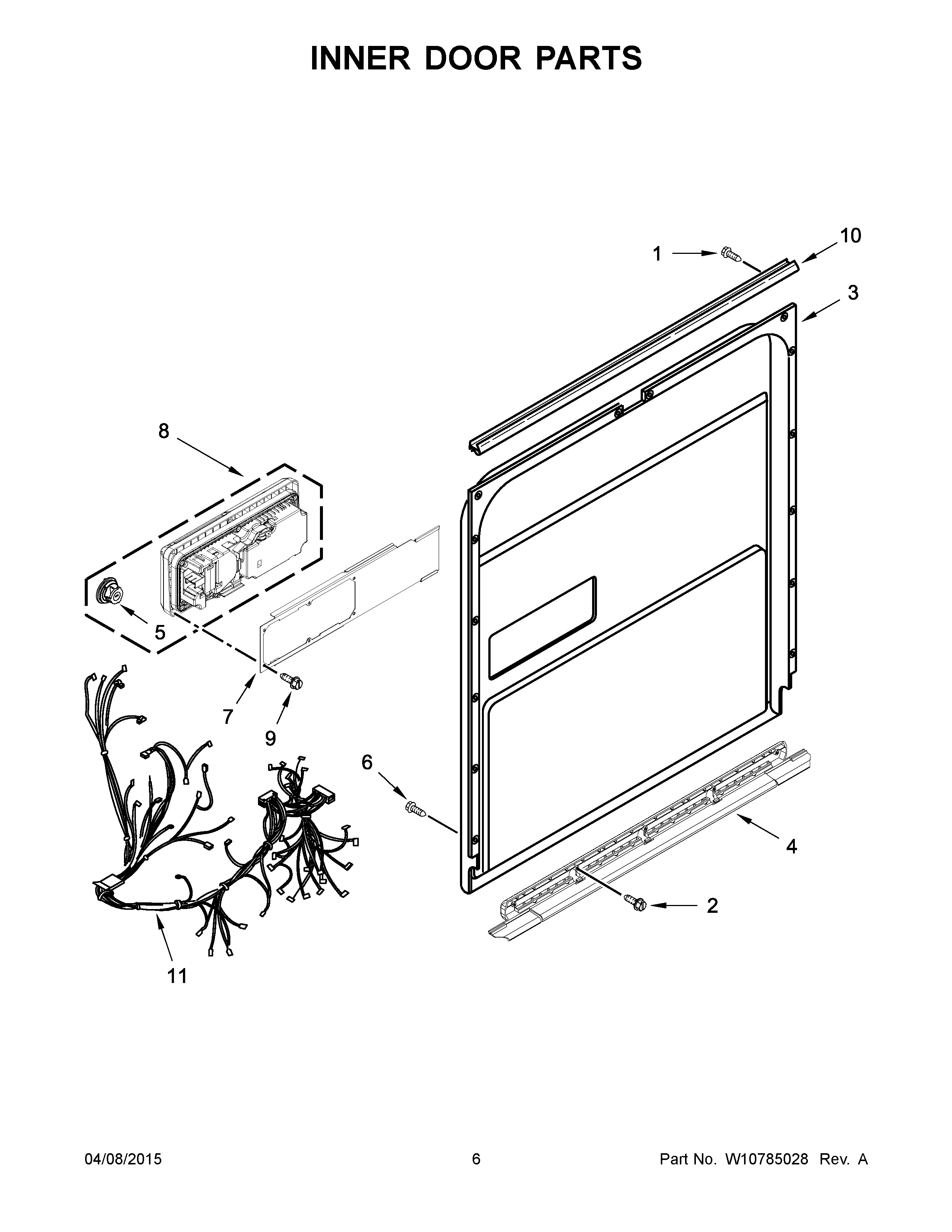

KDFE204EBL0 04 – INNER DOOR PARTS

KDFE204EBL0 04 – INNER DOOR PARTS

Written by

in

KDFE204EBL0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10309090 Whirlpool Dishwasher Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10524919 Whirlpool Dishwasher Dispenser Cap
6WPW10348409 Whirlpool Screw
7WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
8DISPENSER (DISHWASHER)
9WPW10177098 Whirlpool Dishwasher Screw
10WPW10195007 Whirlpool Dishwasher Seal
11W11027902 Whirlpool Dishwasher Wire Harness
