KDFE204EBL3 03 – CONTROL PANEL AND LATCH PARTS
Written by
in

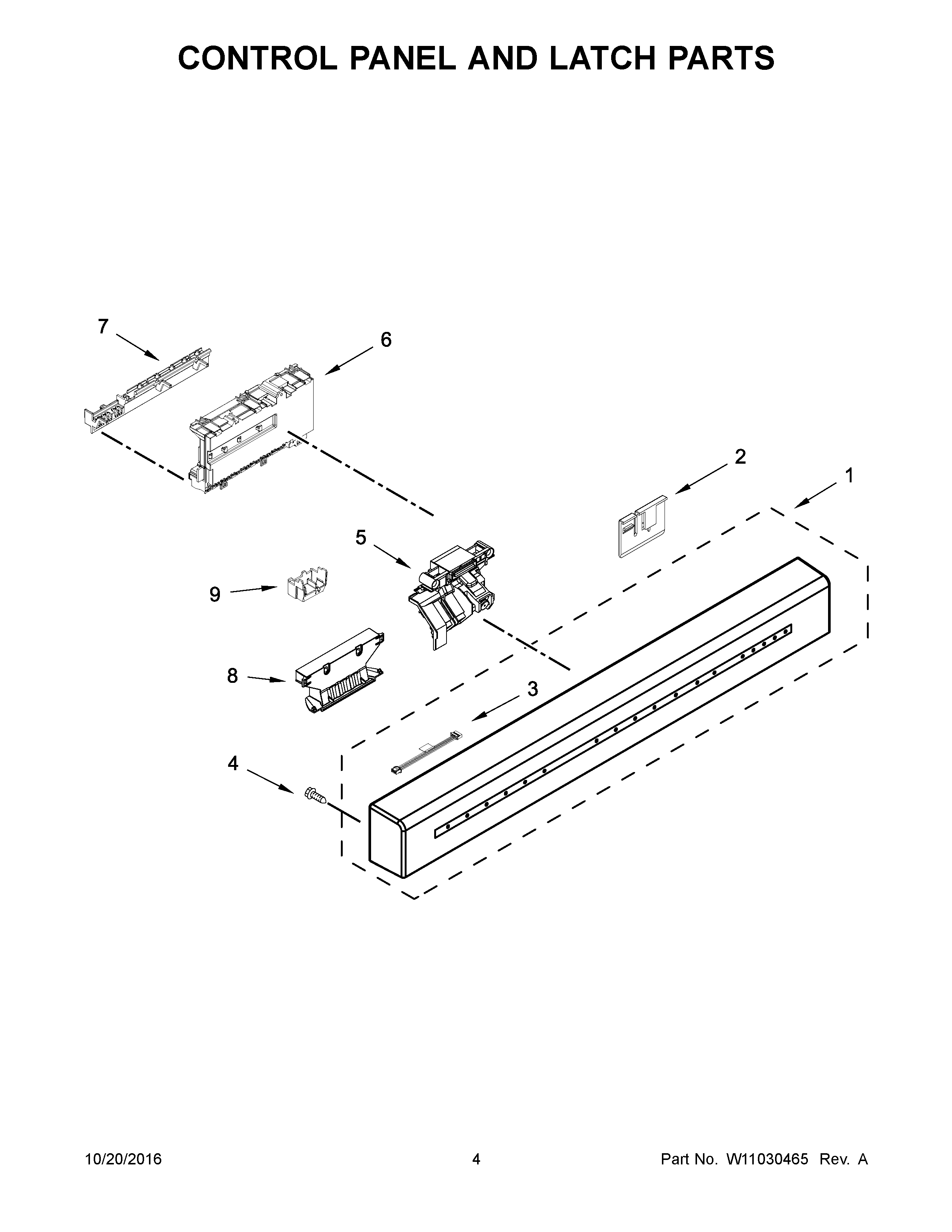

KDFE204EBL3 03 – CONTROL PANEL AND LATCH PARTS
Products
Position
Product
1B
W10891917 Whirlpool Dishwasher Control Panel
1A
W10891916 Whirlpool Dishwasher Control Panel
1
W10891915 Whirlpool Dishwasher Control Panel
2
W11256107 Whirlpool Dishwasher Clip
3
W10792164 Whirlpool Dishwasher Wire
4
WPW10348408 Whirlpool Dishwasher Screw
5
WPW10653840 Whirlpool Door Latch
6
W10909702 Whirlpool Dishwasher Electronic Control Board
7
WPW10194937 Whirlpool Dishwasher Control Bracket
8
W10537379 Whirlpool Dishwasher Handle
9
W10783730 Whirlpool Dishwasher Connector
←
