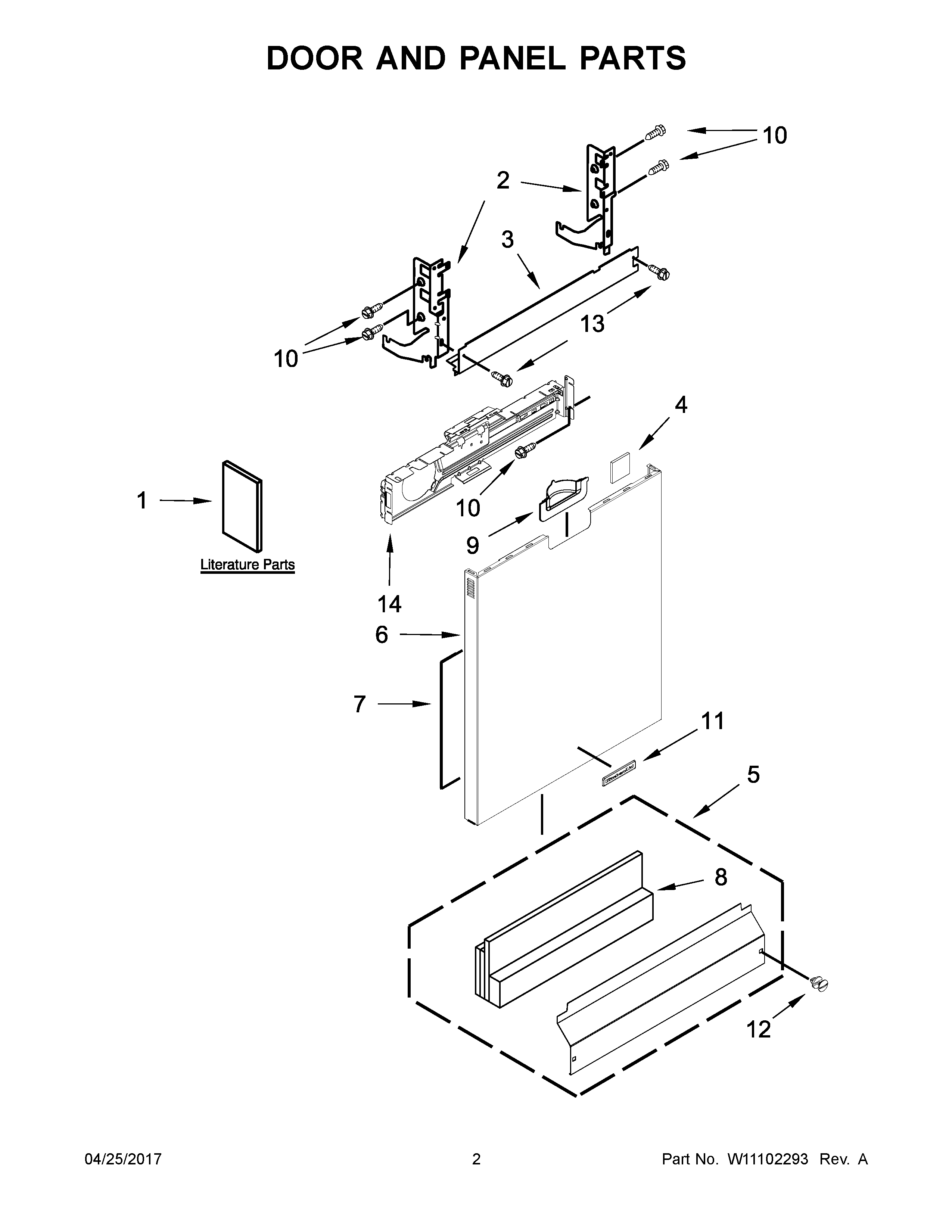

KDFE204EBL4 02 – DOOR AND PANEL PARTS

KDFE204EBL4 02 – DOOR AND PANEL PARTS

Written by

in

KDFE204EBL4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10622466 Whirlpool Dishwasher Spacer
5AWPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6AWPW10751394 Whirlpool Dishwasher Panel
6WPW10751393 Whirlpool Dishwasher Panel
6BWPW10751392 Whirlpool Dishwasher Panel
7WPW10073520 Whirlpool Dishwasher Insulation Pad
8SHIELD
9W10537395 Whirlpool Dishwasher Pocket Handle
9AW10537396 Whirlpool Dishwasher Pocket Handle
9BW10537398 Whirlpool Dishwasher Pocket Handle
10WP3400071 Whirlpool Screw
11W10839793 Whirlpool Refrigerator Nameplate
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
