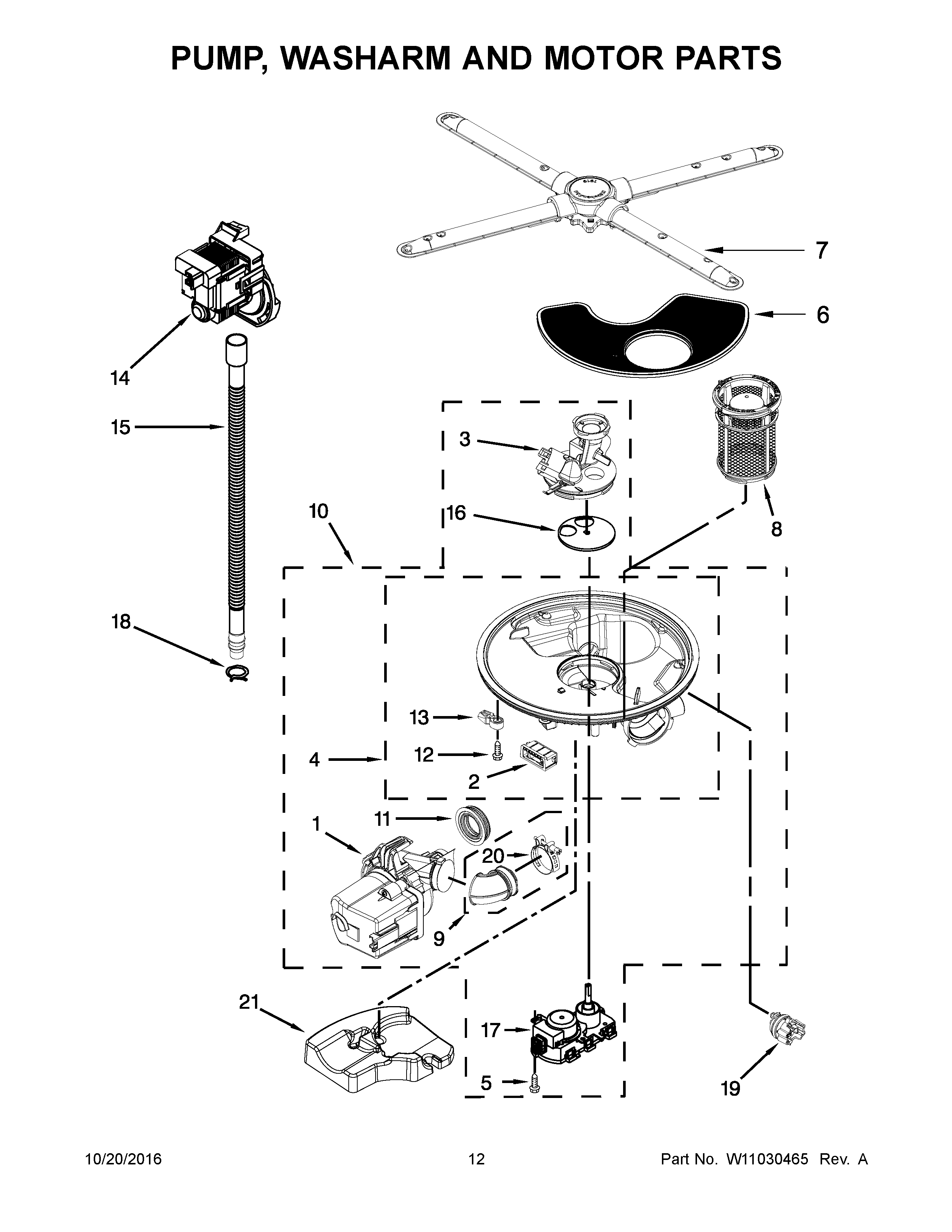

KDFE204EWH3 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
2	W11243394 Whirlpool Dishwasher Support
3	WPW10455272 Whirlpool Dishwasher Cover
4	WPW10455268 Whirlpool Sump
5	WP9741232 Whirlpool Dishwasher Screw
6	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
7	ARM-SPRAY
8	W10872845 Whirlpool Dishwasher Filter Cup Trap
9	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
10	WPW10605058 Whirlpool Dishwasher Pump and Motor
11	WPW10538166 Whirlpool Grommet Pump
12	WPW10348407 Whirlpool Dishwasher Screw
13	WPW10372113 Whirlpool Dishwasher Sump Tab
14	W10876537 Whirlpool Dishwasher Drain Pump
15	8269144A Whirlpool Dishwasher Drain Hose
16	WPW10476221 Whirlpool Dishwasher Diffuser
17	W10537869 Whirlpool Dishwasher Motor
18	WP8269146 Whirlpool Dishwasher Clamp
19	W11084121 Whirlpool Sensor Turbidity
20	W10789434 Whirlpool Dishwasher Hose Clamp
21	W10350335 Whirlpool Dishwasher Damper
