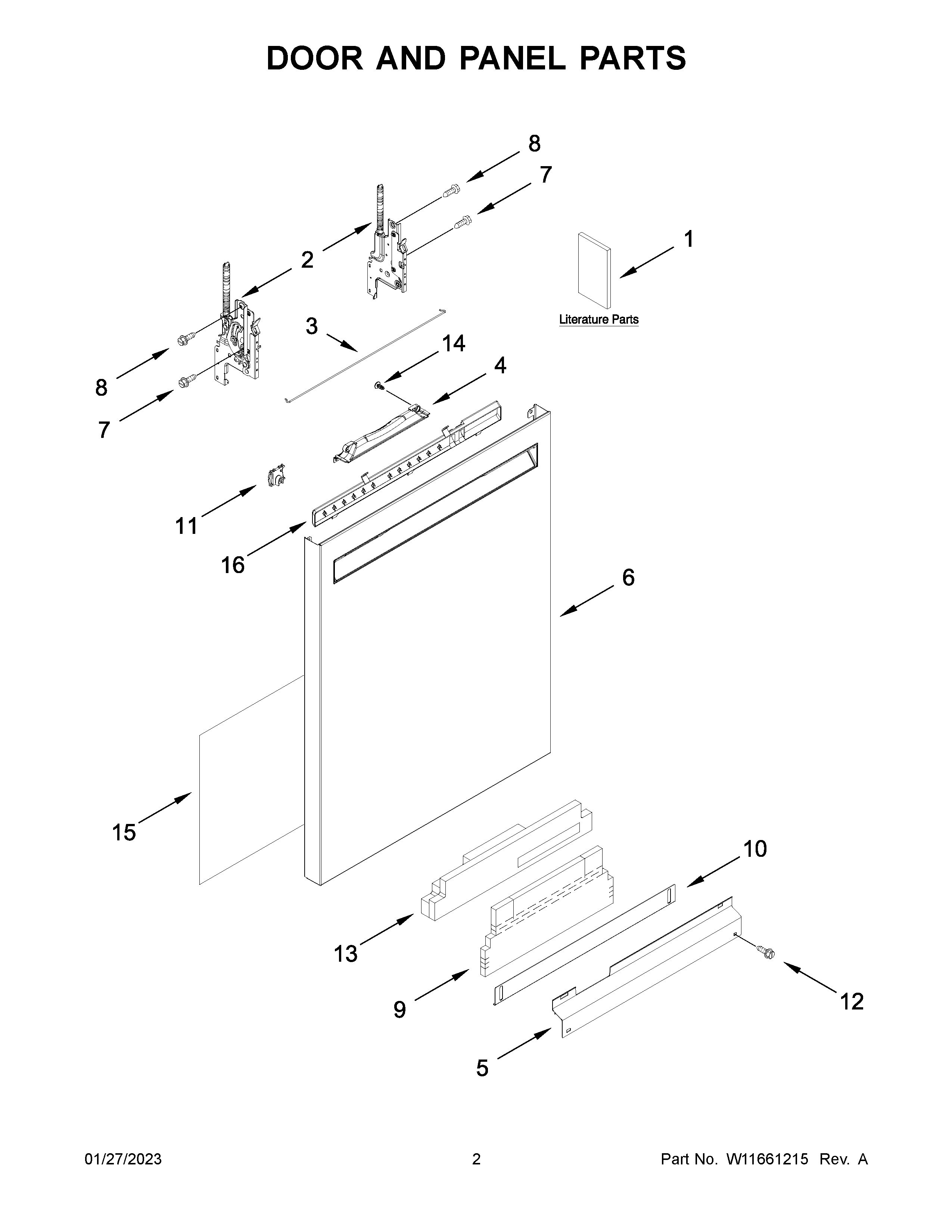

KDFE204KBL1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4AHANDLE (WHITE)
4W11242122 Whirlpool Dishwasher Handle
5W11545318 Whirlpool Toekick Plate
5AW11110746 Whirlpool Panel
6AW11672201 Whirlpool Panel
6W11672177 Whirlpool Panel
6BW11625194 Whirlpool Panel Assembly
6CW11625196 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
10AW11467726 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12ASCREW
12W11551775 Whirlpool Screw
13W11573700 Whirlpool Shield
14SCREW
15W10919861 Whirlpool Insulation Pad
16W11731850 Whirlpool Cover Assembly
