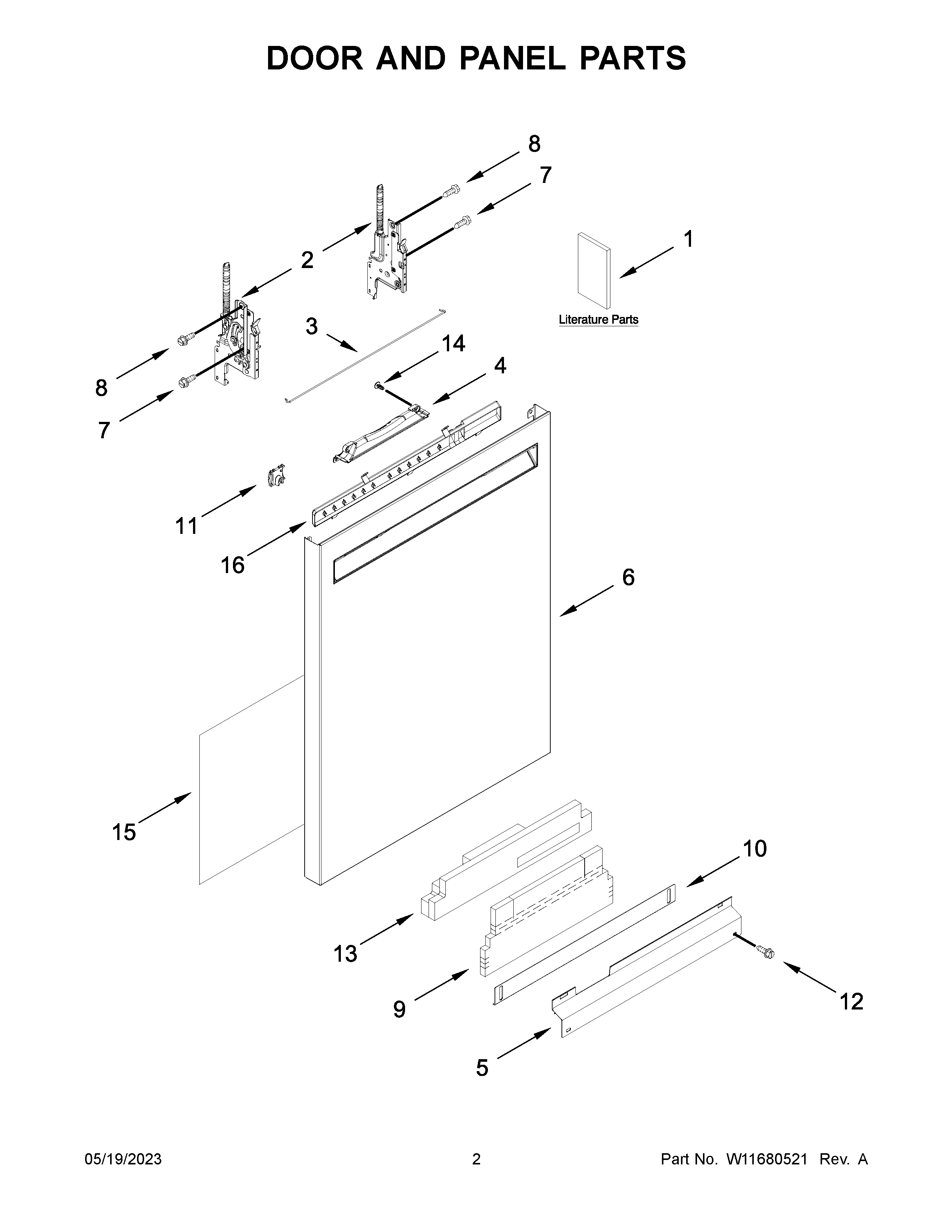

KDFE204KBL2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	OWNERS MANUAL
1A	ENERGY GUIDE
1B	TECH SHEET
2A	W11712996 Whirlpool Door Hinge
2	HINGE-DOOR
3	W11377160 Whirlpool Brace Assembly
4	W11242122 Whirlpool Dishwasher Handle
4A	HANDLE (WHITE)
5	W11545318 Whirlpool Toekick Plate
5A	W11110746 Whirlpool Panel
6C	W11625196 Whirlpool Panel
6	W11672177 Whirlpool Panel
6A	W11672201 Whirlpool Panel
6B	W11625194 Whirlpool Panel Assembly
7	W11676450 Whirlpool Screw
8	WPW10309090 Whirlpool Dishwasher Screw
9	W11573704 Whirlpool Dishwasher Shield
10	W11579528 Whirlpool Toe Panel
10A	W11467726 Whirlpool Toe Panel
11	W10692757 Whirlpool Dishwasher Nut Assembly
12A	SCREW
12	W11551775 Whirlpool Screw
13	W11573700 Whirlpool Shield
14	SCREW
15	W10919861 Whirlpool Insulation Pad
16	W11731850 Whirlpool Cover Assembly
