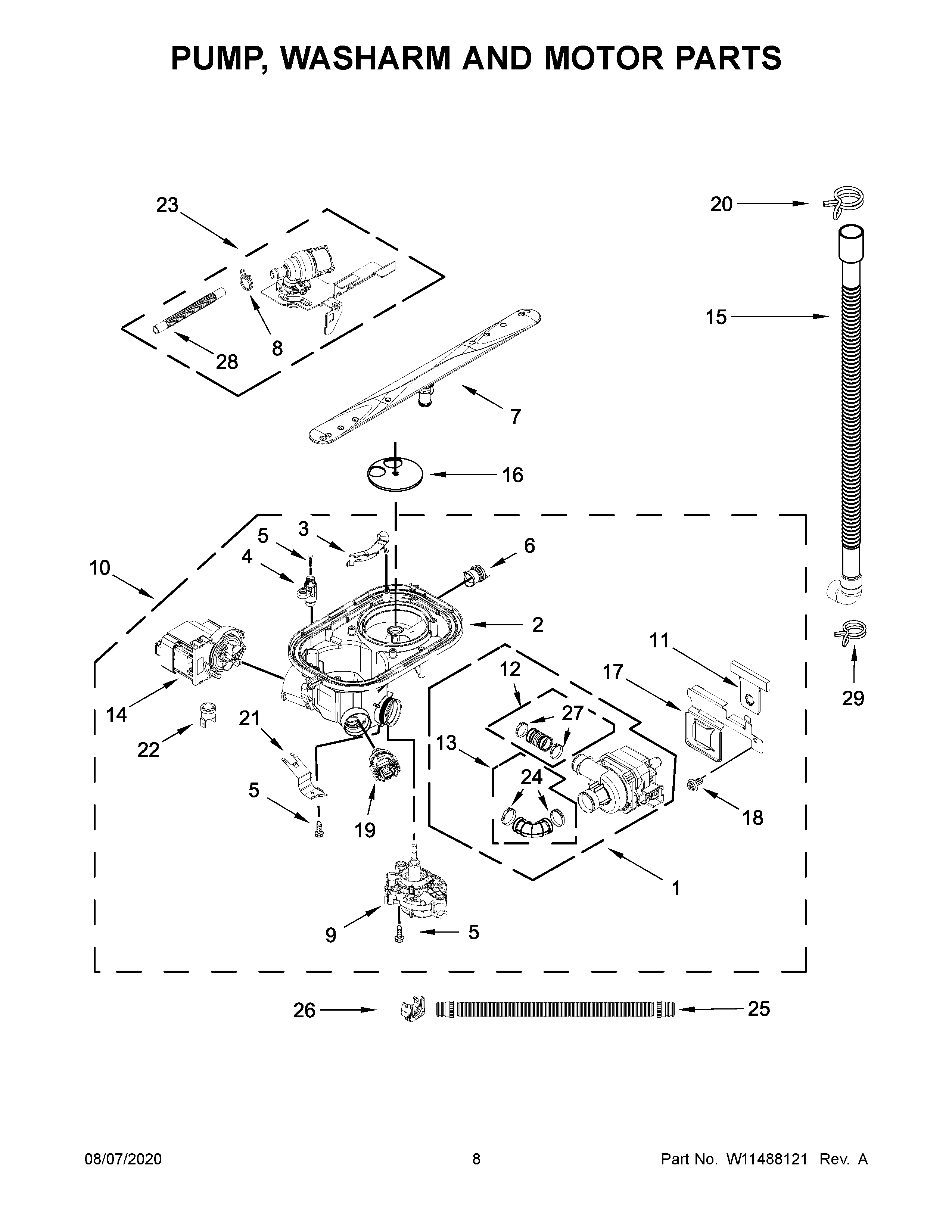

KDFE204KBS0 05 – PUMP, WASHARM AND MOTOR PARTSadmin2025-04-26T12:37:43+00:00KDFE204KBS0 05 – PUMP, WASHARM AND MOTOR PARTS ProductsPositionProduct1W11462455 Whirlpool Pump Base2W11443105 Whirlpool Sump3W10891543 Whirlpool Retainer4W11050773 Whirlpool Check Ball5WP9741232 Whirlpool Dishwasher Screw6W11622925 Whirlpool Check Valve7ARM-SPRAY8WP596669 Whirlpool Hose Clamp9CABINET (NOT A SERVICEABLE PART)10W11460946 Whirlpool Pump and Motor11ISOLATOR, REAR MOTOR12W11419334 Whirlpool Hose13W11460960 Whirlpool Hose14W11462456 Whirlpool Drain Pump15W11414944 Whirlpool Drain Hose16W11580016 Whirlpool Dishwasher Diffuser17W11497568 Whirlpool Bracket18W11104048 Whirlpool Cover19W11410464 Whirlpool Sensor20WP285655 Whirlpool Hose Clamp21W11163419 Whirlpool Bracket - Stat22W11573758 Whirlpool Thermostat23VALVE-INLT25W11614117 Whirlpool Drain Hose26W11596052 Whirlpool Clip27W10783615 Whirlpool Dishwasher Clamp28W11627534 Whirlpool Fill Hose29W11545578 Whirlpool Hose Clamp
