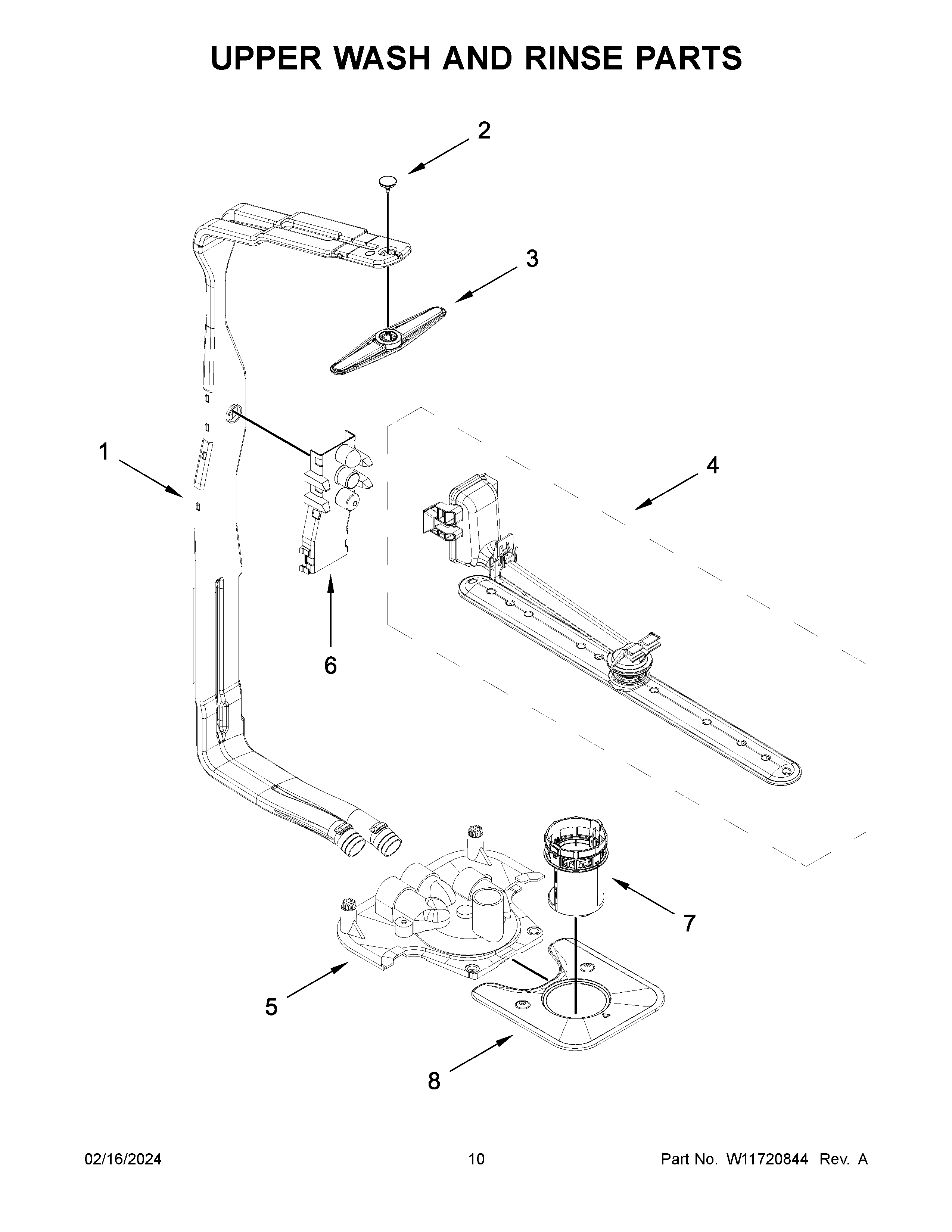

KDFE204KWH3 06 – UPPER WASH AND RINSE PARTS

KDFE204KWH3 06 – UPPER WASH AND RINSE PARTS

Written by

in

KDFE204KWH3 06 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1W11507999 Whirlpool Feed Tube
2W11590538 Whirlpool Retainer Assembly
3W11573766 Whirlpool Dishwasher Spray Arm
4MANIFOLD
5W11743983 Whirlpool Cover
6W11690647 Whirlpool Retainer Clip
7W11460958 Whirlpool Filter
8W11590541 Whirlpool Screen
