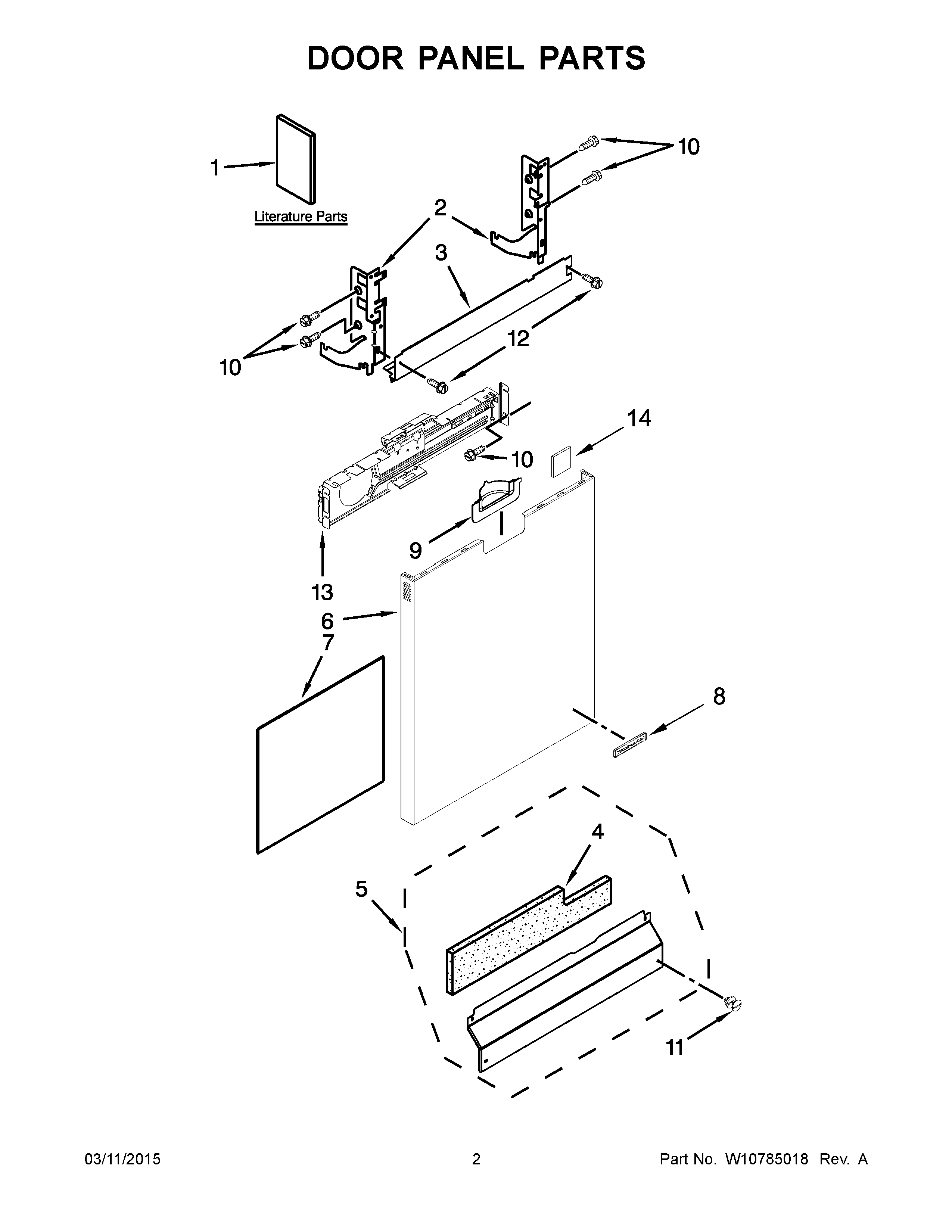

KDFE304DBL1 02 – DOOR PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1C	TECH SHEET, ENGLISH
1D	TECH SHEET, FRENCH
1A	ENERGY GUIDE
1B	USE & CARE GUIDE
2A	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	W10827631 Whirlpool Toe Panel
5A	W10827632 Whirlpool Dishwasher Control Panel
6A	WPW10751394 Whirlpool Dishwasher Panel
6B	WPW10751392 Whirlpool Dishwasher Panel
6	WPW10751393 Whirlpool Dishwasher Panel
7	WPW10073520 Whirlpool Dishwasher Insulation Pad
8A	WPW10243393 Whirlpool Dishwasher Nameplate
8	WPW10243392 Whirlpool Dishwasher Nameplate
8B	WPW10243391 Whirlpool Refrigerator Nameplate
9B	W10537398 Whirlpool Dishwasher Pocket Handle
9	W10537395 Whirlpool Dishwasher Pocket Handle
9A	W10537396 Whirlpool Dishwasher Pocket Handle
10	WP3400071 Whirlpool Screw
11A	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP489069 Whirlpool Compactor Screw
13	WPW10350242 Whirlpool Dishwasher Control Bracket
14	W10622466 Whirlpool Dishwasher Spacer
