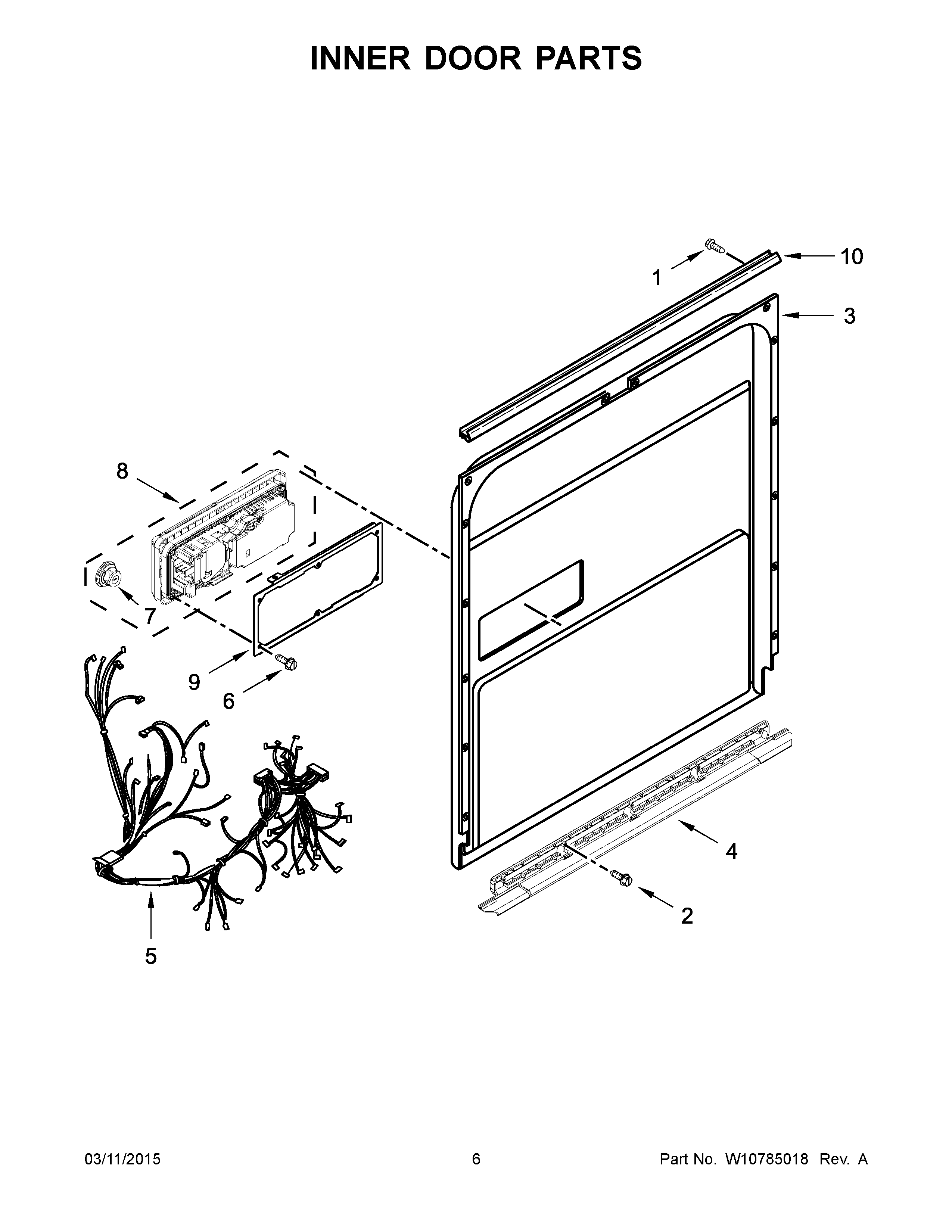

KDFE304DSS1 04 – INNER DOOR PARTS

KDFE304DSS1 04 – INNER DOOR PARTS

Written by

in

KDFE304DSS1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W10744885 Whirlpool Dishwasher Wire Harness
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10524919 Whirlpool Dishwasher Dispenser Cap
8DISPENSER (DISHWASHER)
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10WPW10195007 Whirlpool Dishwasher Seal
