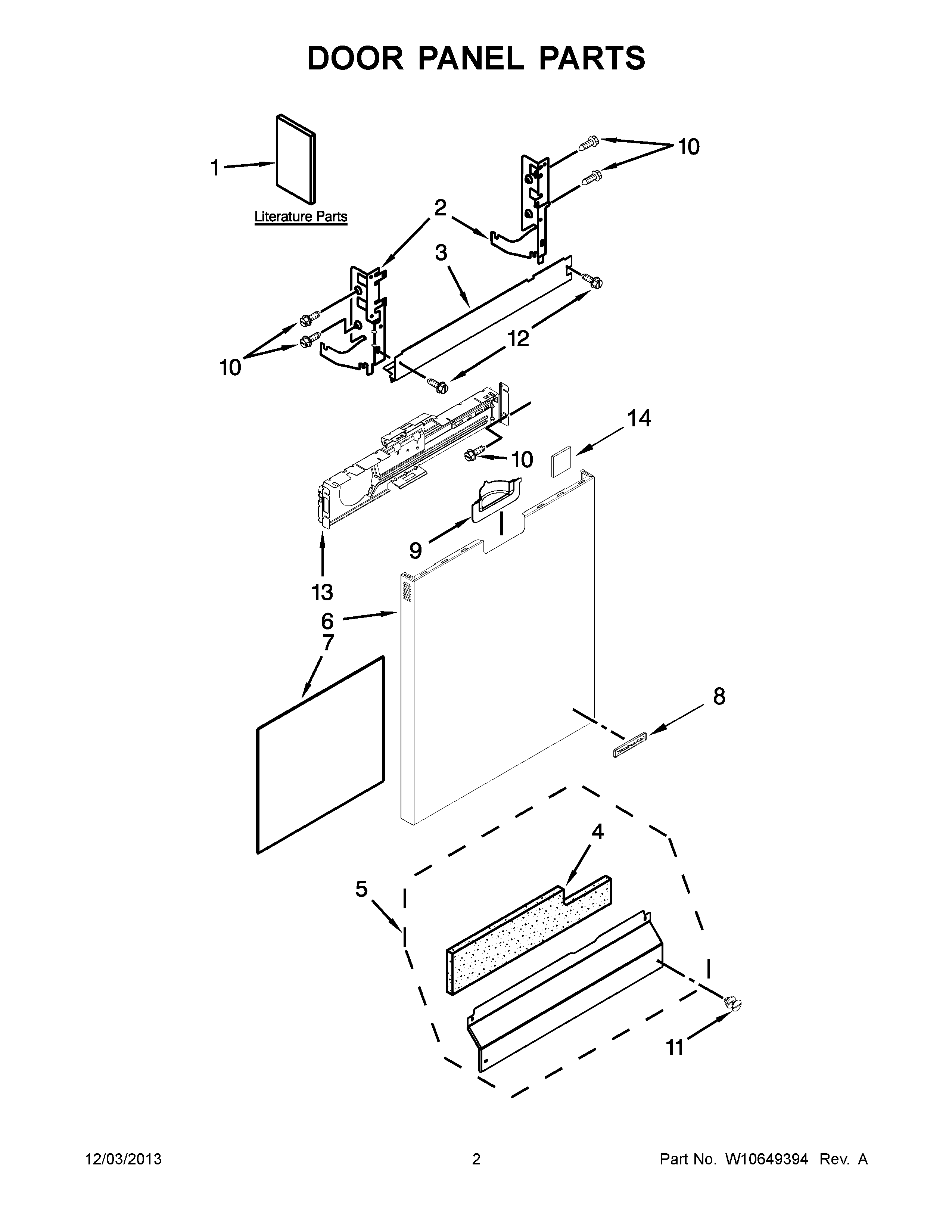

KDFE304DWH0 02 – DOOR PANEL PARTS

KDFE304DWH0 02 – DOOR PANEL PARTS

Written by

in

KDFE304DWH0 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET, ENGLISH
1TECH SHEET, FRENCH
1ENERGY GUIDE
1USE & CARE GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6WPW10751394 Whirlpool Dishwasher Panel
6WPW10751392 Whirlpool Dishwasher Panel
6WPW10751393 Whirlpool Dishwasher Panel
7WPW10073520 Whirlpool Dishwasher Insulation Pad
8WPW10243393 Whirlpool Dishwasher Nameplate
8WPW10243392 Whirlpool Dishwasher Nameplate
8WPW10243391 Whirlpool Refrigerator Nameplate
9W10537398 Whirlpool Dishwasher Pocket Handle
9W10537395 Whirlpool Dishwasher Pocket Handle
9W10537396 Whirlpool Dishwasher Pocket Handle
10WP3400071 Whirlpool Screw
11WPW10503549 Whirlpool Dishwasher Retainer Clip
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP489069 Whirlpool Compactor Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
14W10622466 Whirlpool Dishwasher Spacer
