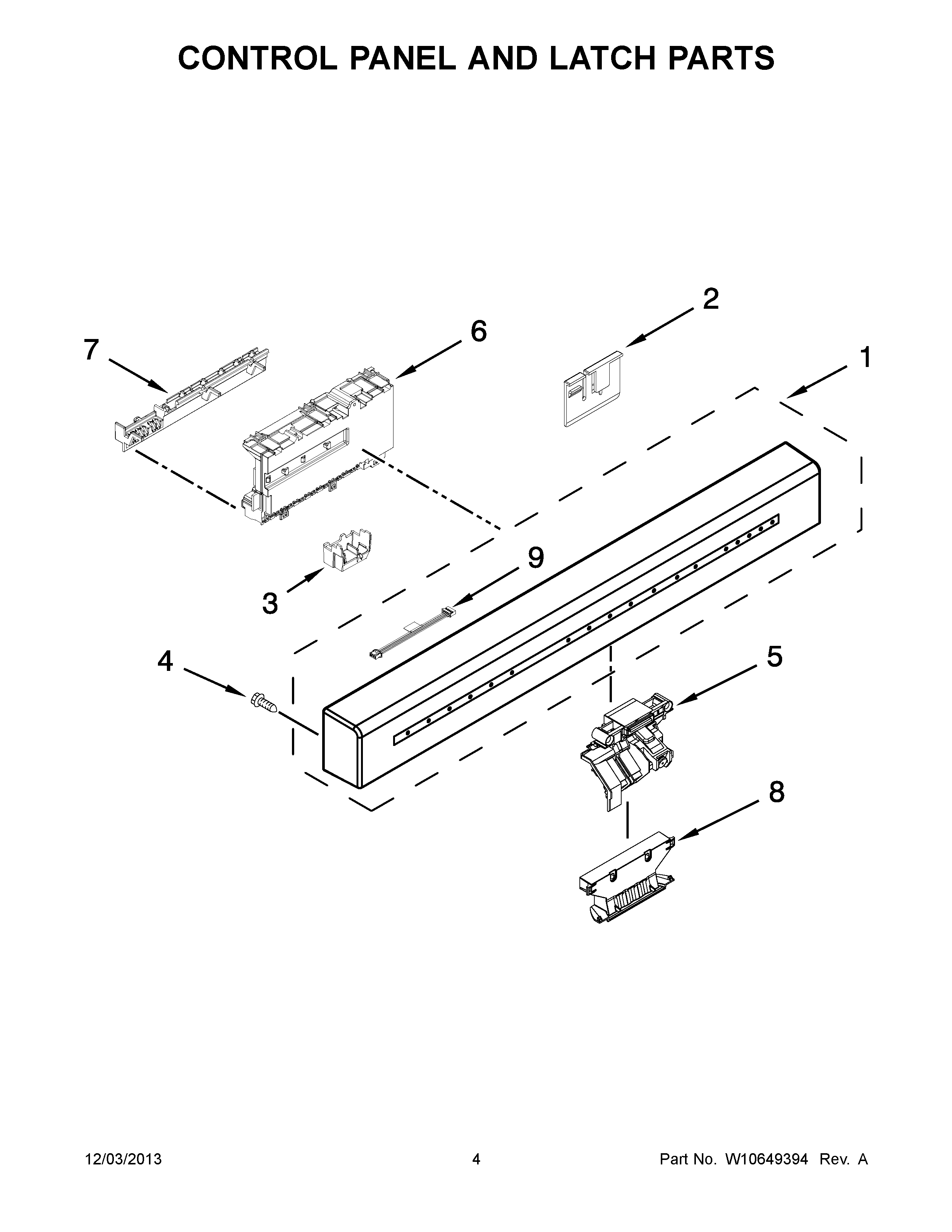

KDFE304DWH0 03 – CONTROL PANEL AND LATCH PARTS

KDFE304DWH0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDFE304DWH0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10537352 Whirlpool Dishwasher Control Panel
1WPW10537349 Whirlpool Dishwasher Control Panel
1WPW10537350 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866116 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8W10537379 Whirlpool Dishwasher Handle
9W10528492 Whirlpool Dishwasher Wire
