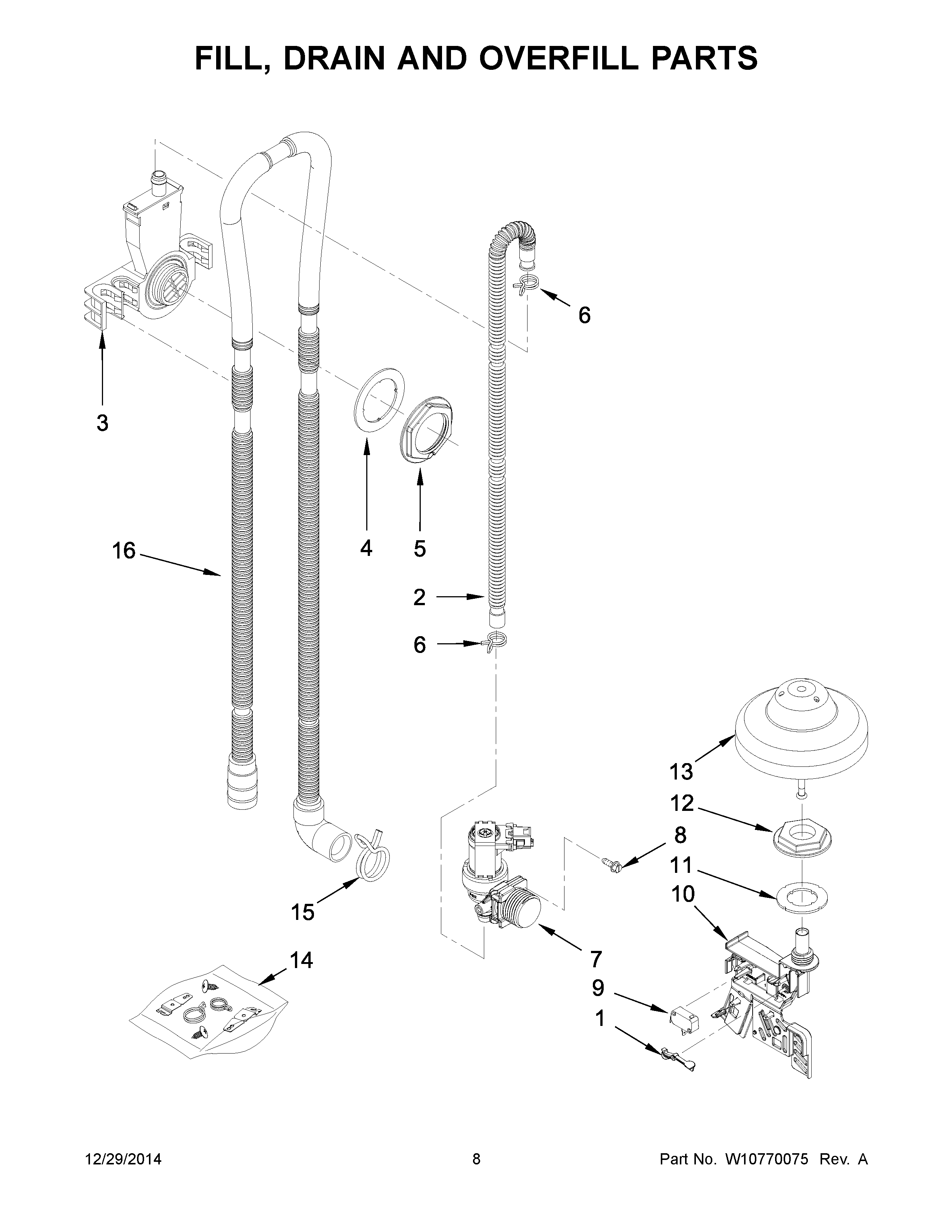

KDFE454CSS2 05 – FILL, DRAIN AND OVERFILL PARTSadmin2025-04-26T10:27:20+00:00KDFE454CSS2 05 – FILL, DRAIN AND OVERFILL PARTS ProductsPositionProduct1WPW10195037 Whirlpool Lever Assembly2W10878507 Whirlpool Inlet Hose3WPW10195536 Whirlpool Water Inlet Valve4WP8531323 Whirlpool Gasket Seal5WPW10213825 Whirlpool Dishwasher Tube Nut6WP596669 Whirlpool Hose Clamp7W10648041 Whirlpool Water Inlet Valve8WP489069 Whirlpool Compactor Screw9WPW10195039 Whirlpool Dishwasher Float Switch10W10873429 Whirlpool Housing11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket12WPW10195038 Whirlpool Dishwasher Nut13WPW10195036 Whirlpool Dishwasher Float14WPW10292152 Whirlpool Hardware Kit15WP285655 Whirlpool Hose Clamp16WPW10545278 Whirlpool Drain Hose
