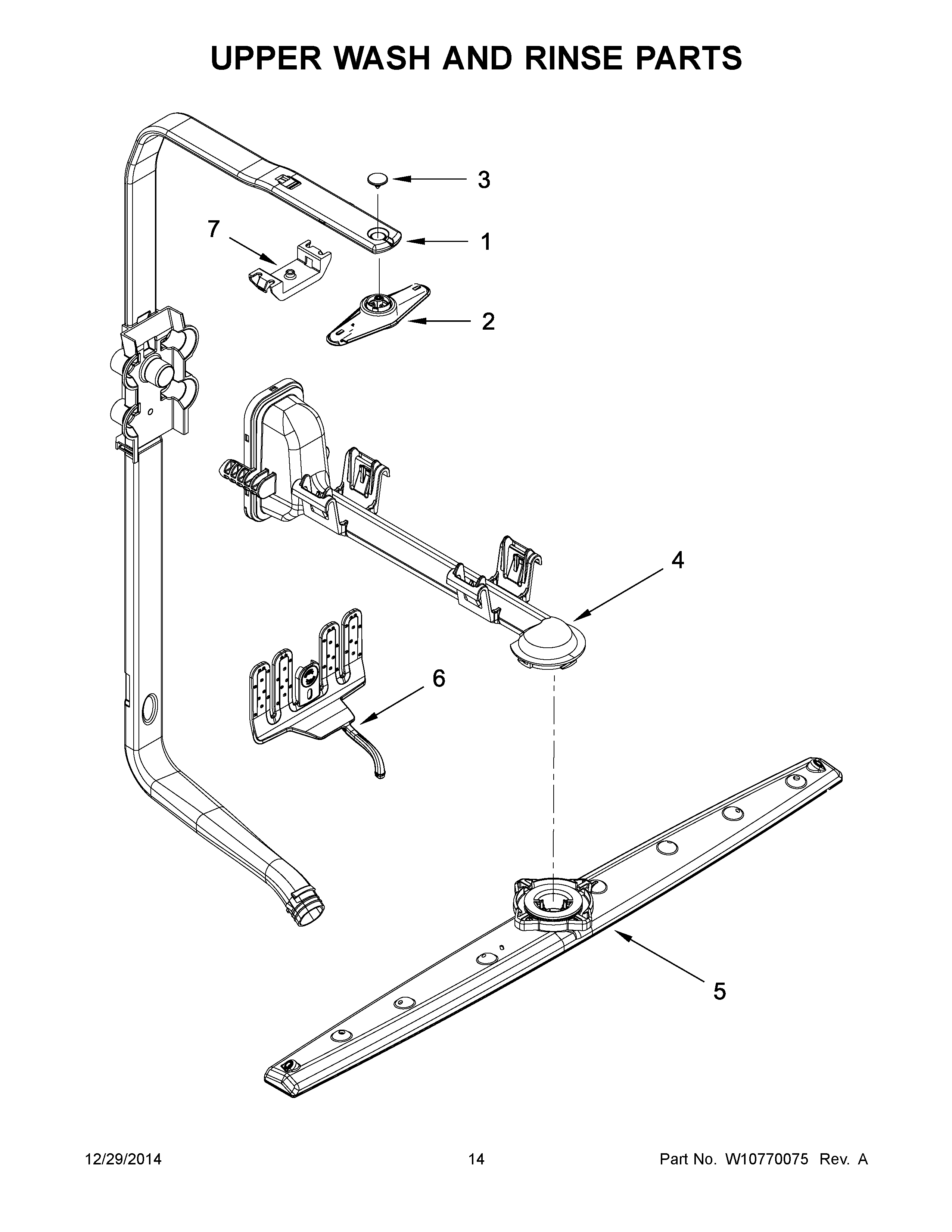

KDFE454CSS2 08 – UPPER WASH AND RINSE PARTS

KDFE454CSS2 08 – UPPER WASH AND RINSE PARTS

Written by

in

KDFE454CSS2 08 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1WPW10340745 Whirlpool Water Feed Tube
2WPW10327455 Whirlpool Dishwasher Spray Arm
3WP3400918 Whirlpool Fastener
4WPW10340542 Whirlpool Manifold
5WPW10448645 Whirlpool Dishwasher Upper Spray Arm
6WPW10353140 Whirlpool Dishwasher Manifold
7W10837623 Whirlpool Dishwasher Bracket
