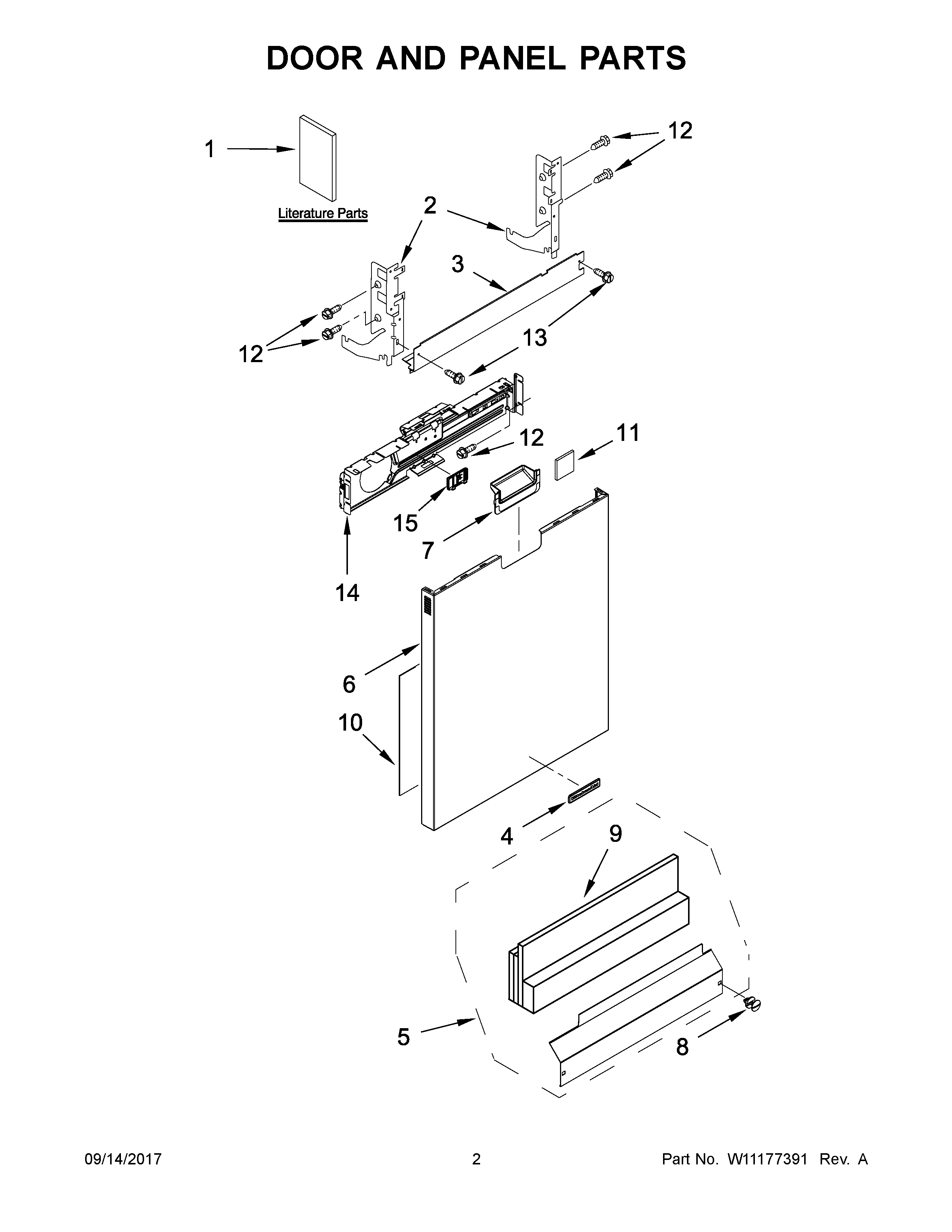

KDFE454CSS5 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10243391 Whirlpool Refrigerator Nameplate
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10195531 Whirlpool Dishwasher Panel
7W10563099 Whirlpool Dishwasher Pocket Handle
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9SHIELD
10W11126003 Whirlpool Dishwasher Insulation Pad
11BLOCK, FOAM
12WP3400071 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WPW10350242 Whirlpool Dishwasher Control Bracket
15W10463662 Whirlpool Dishwasher Spacer Plate
