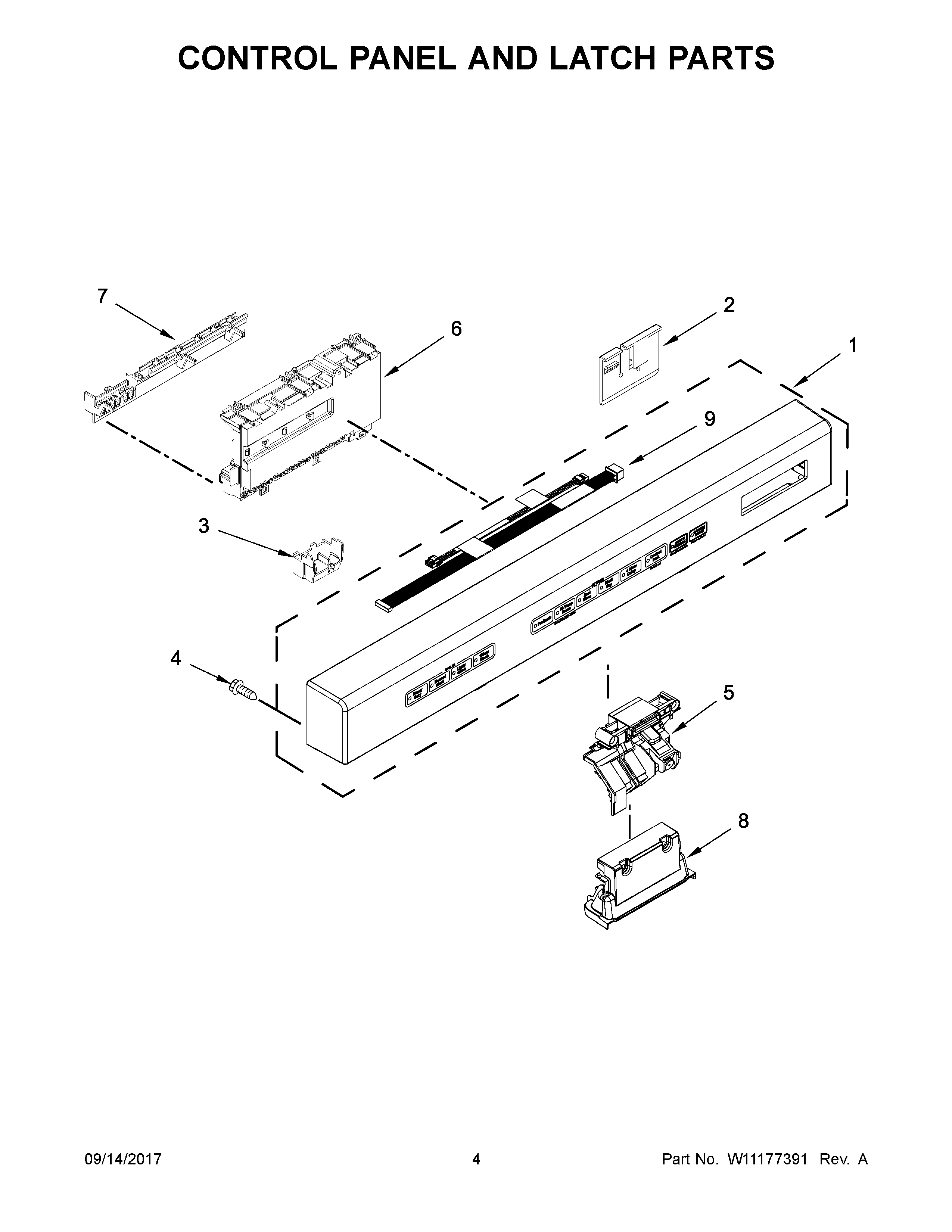

KDFE454CSS5 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	WPW10451537 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	WPW10462393 Whirlpool Dishwasher Connector
4	WPW10348408 Whirlpool Dishwasher Screw
5	WPW10653840 Whirlpool Door Latch
6	CONTROL, ELECTRONIC
7	WPW10462395 Whirlpool Dishwasher Brace
8	WPW10195718 Whirlpool Dishwasher Handle
9	JUMPER ASSEMBLY, UI
