KDFE454CSS5 09 – UPPER RACK AND TRACK PARTS

KDFE454CSS5 09 – UPPER RACK AND TRACK PARTS

Written by

in

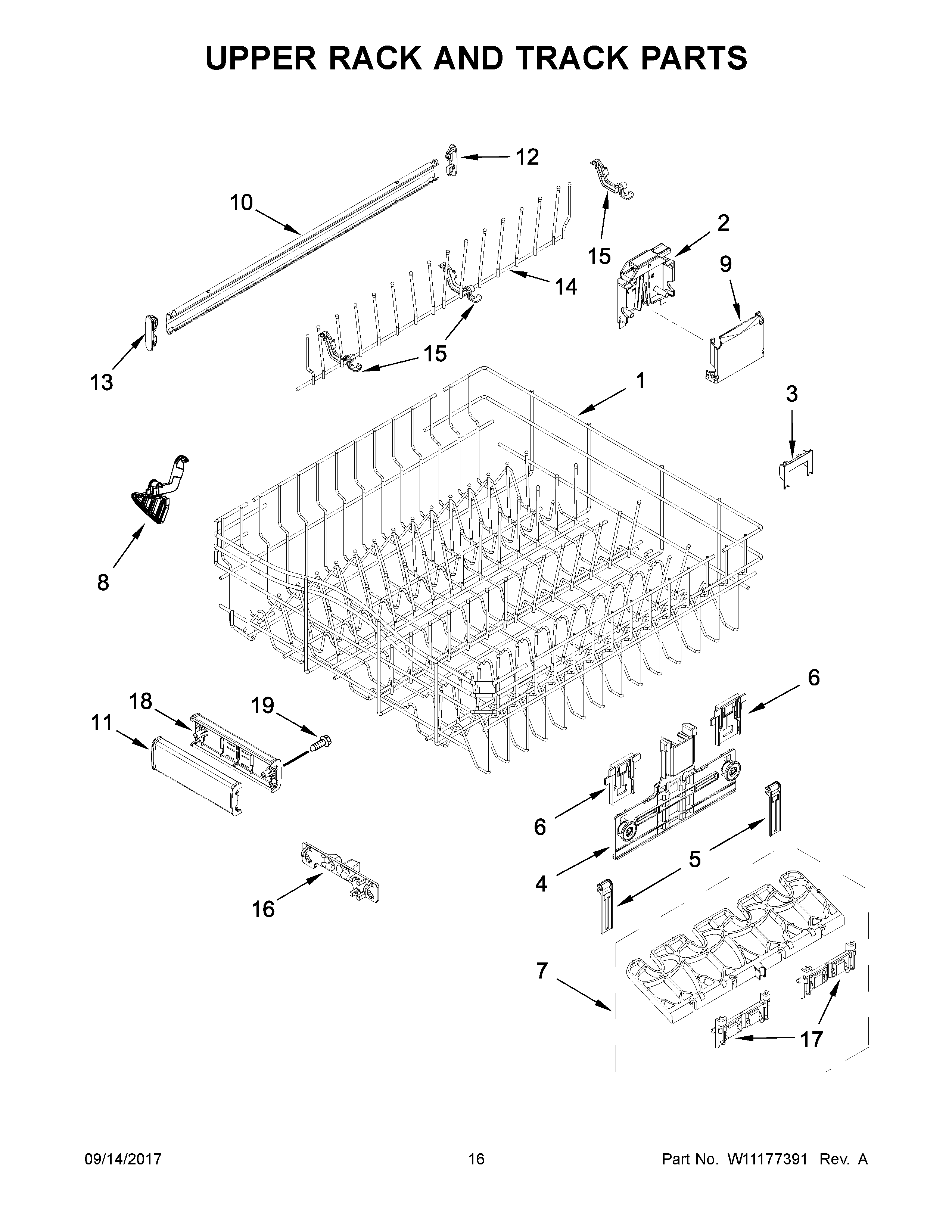

KDFE454CSS5 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2AWPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4W10712395 Whirlpool Dishwasher Dishrack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8W10919676 Whirlpool Dishwasher Dispenser Guard Clip
9COVER
10WP3385089 Whirlpool Track
12WP8565925 Whirlpool Slide Rail Stop
14W10727426 Whirlpool Dishwasher Rack Tine
15WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
16WP8539102 Whirlpool Dishwasher Positioner
17WPW10082848 Whirlpool Clip
18W11110542 Whirlpool Dishwasher Handle
19WP9741232 Whirlpool Dishwasher Screw
