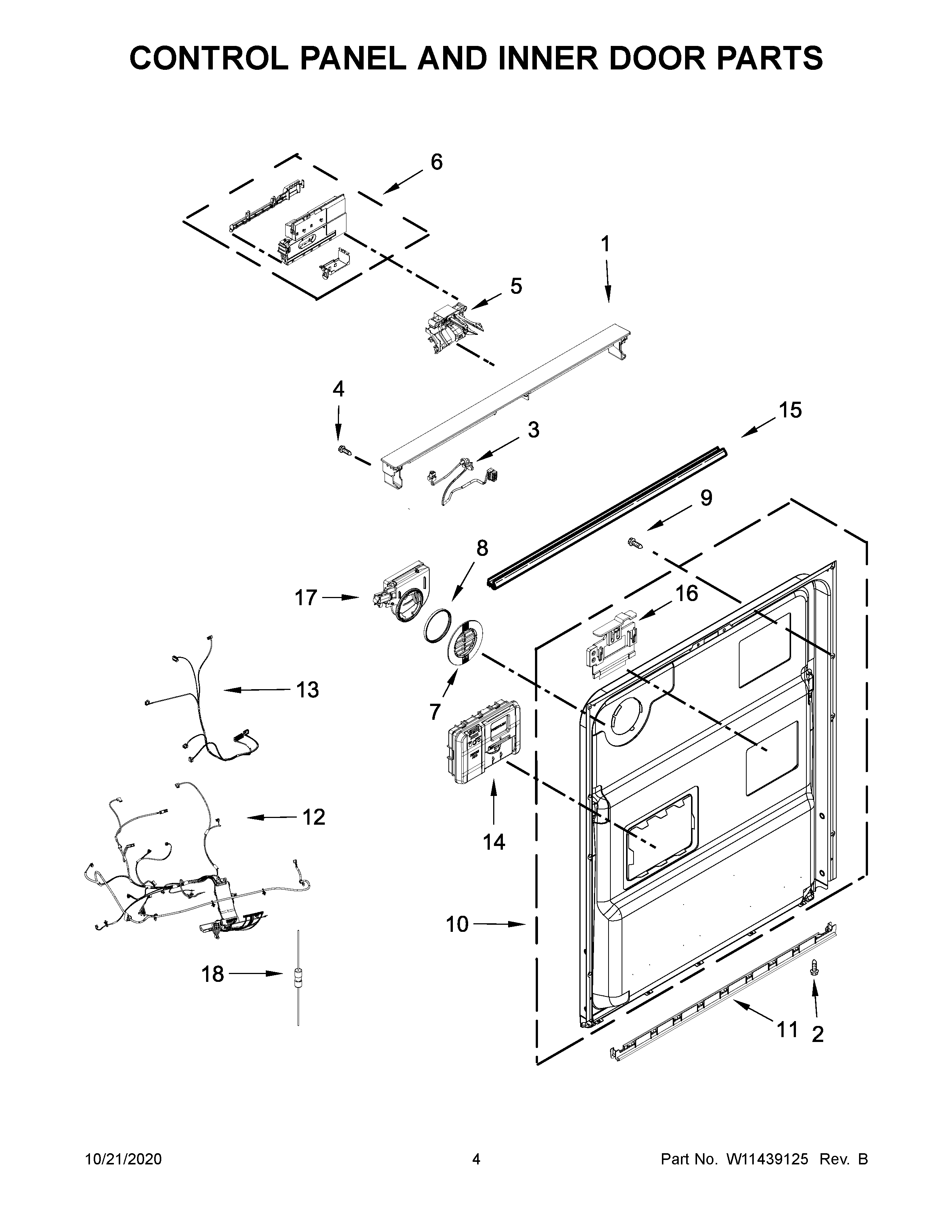

KDFM404KPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

KDFM404KPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

KDFM404KPS0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11632693 Whirlpool Dishwasher Control Panel
2W11627527 Whirlpool Screw
3W11747582 Whirlpool Wire Harness
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11410066 Whirlpool Control Board + Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12W11568793 Whirlpool Harness
13W11611303 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
