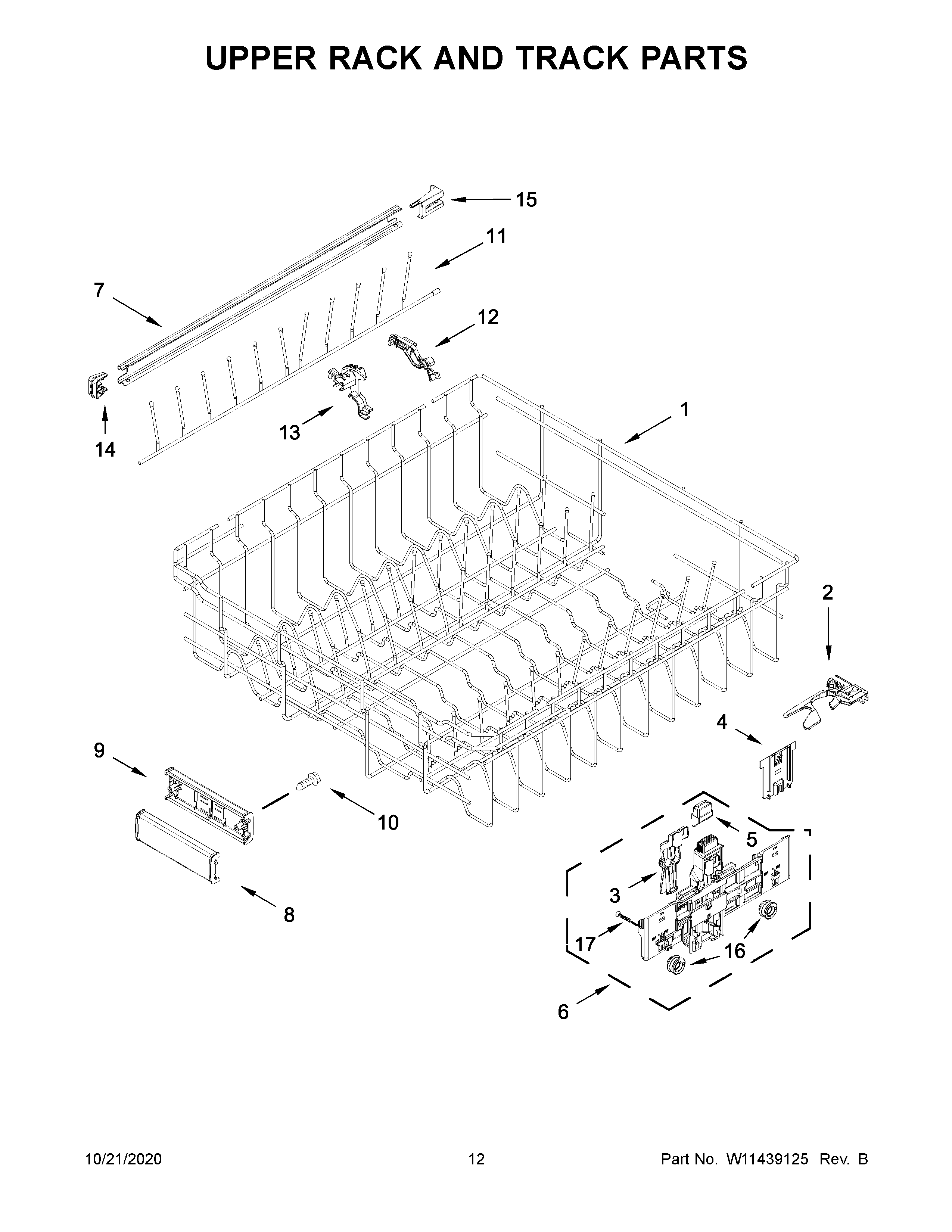

KDFM404KPS0 07 – UPPER RACK AND TRACK PARTS

KDFM404KPS0 07 – UPPER RACK AND TRACK PARTS

Written by

in

KDFM404KPS0 07 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W11672788 Whirlpool Dish Rack
2CLIP
3W11180178 Whirlpool Positioner
4W11580020 Whirlpool Positioner
5BUTTON, ADJUSTER ARM
6AW11551430 Whirlpool Adjuster
6W11551537 Whirlpool Adjuster
7W11561204 Whirlpool Track Assembly
8W11268682 Whirlpool Handle
9W11268681 Whirlpool Handle
10WP9741232 Whirlpool Dishwasher Screw
11W11727974 Whirlpool Tine Row
12W11627535 Whirlpool Tine Pivot
13W11179755 Whirlpool Clip
14W11545307 Whirlpool Dishwasher Rack Stop Clip
15W11579392 Whirlpool Stop
16W11545296 Whirlpool Roller
17W11708397 Whirlpool Screw
