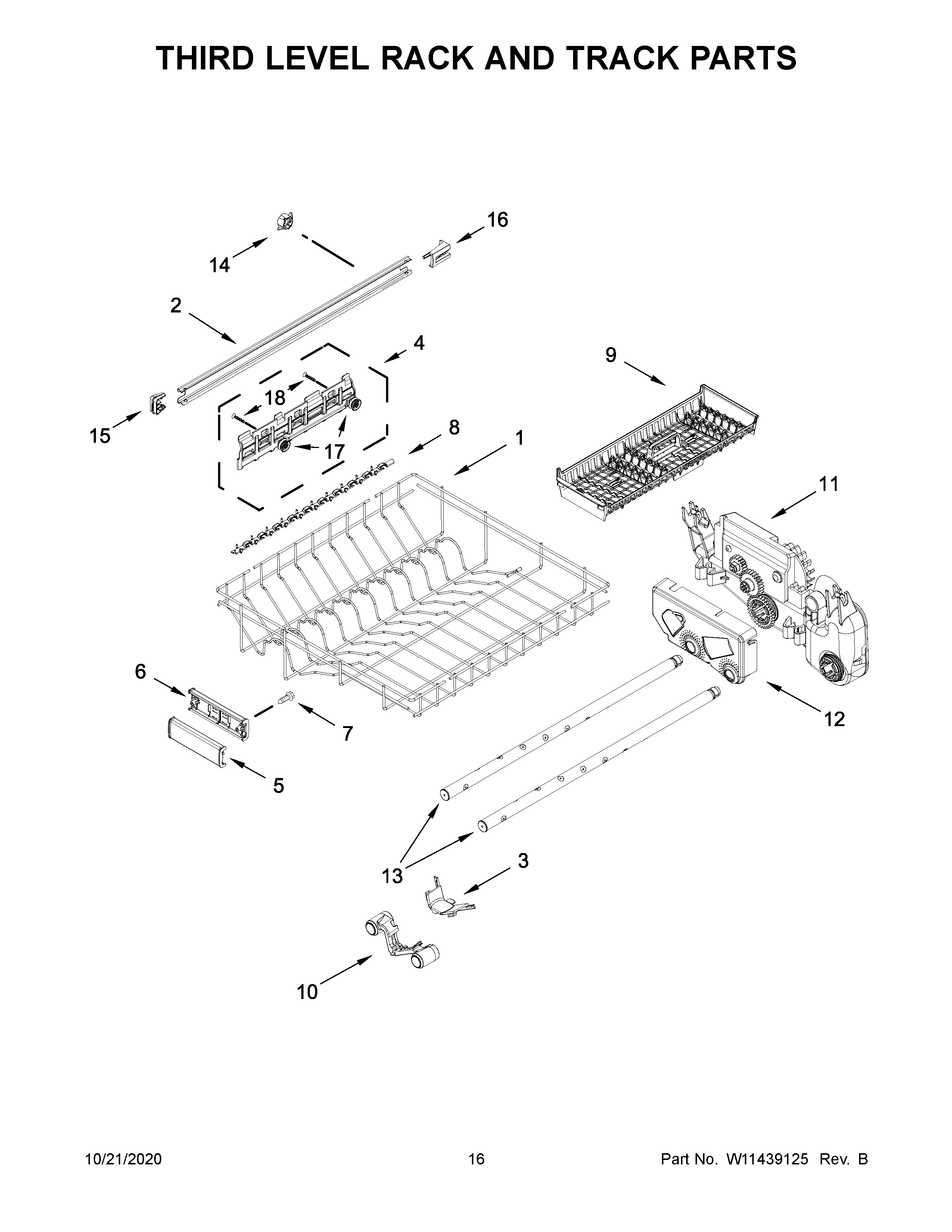

KDFM404KPS0 09 – THIRD LEVEL RACK AND TRACK PARTS
Written by
in
KDFM404KPS0 09 – THIRD LEVEL RACK AND TRACK PARTS
Products
Position
Product
1
W11690882 Whirlpool Dishwasher Rack
2
W11561204 Whirlpool Track Assembly
3
W11573754 Whirlpool Dishwasher Manifold
4A
W11569162 Whirlpool Mount
4
W11551395 Whirlpool Mounting Clip
5
W11392620 Whirlpool Dishwasher Handle
6
W11268681 Whirlpool Handle
7
WP9741232 Whirlpool Dishwasher Screw
8
W11202101 Whirlpool Clip Assembly
9
W11690650 Whirlpool Basket Ware
10
W11568642 Whirlpool Spray Tower Assembly
11
W11677712 Whirlpool Dishwasher Manifold
12
W11101860 Whirlpool Cover Assembly
13
W11679655 Whirlpool Tube Assembly
14
W11545286 Whirlpool Nut
15
W11545307 Whirlpool Dishwasher Rack Stop Clip
16
W11579392 Whirlpool Stop
17
W11545296 Whirlpool Roller
18
W11708397 Whirlpool Screw
←
