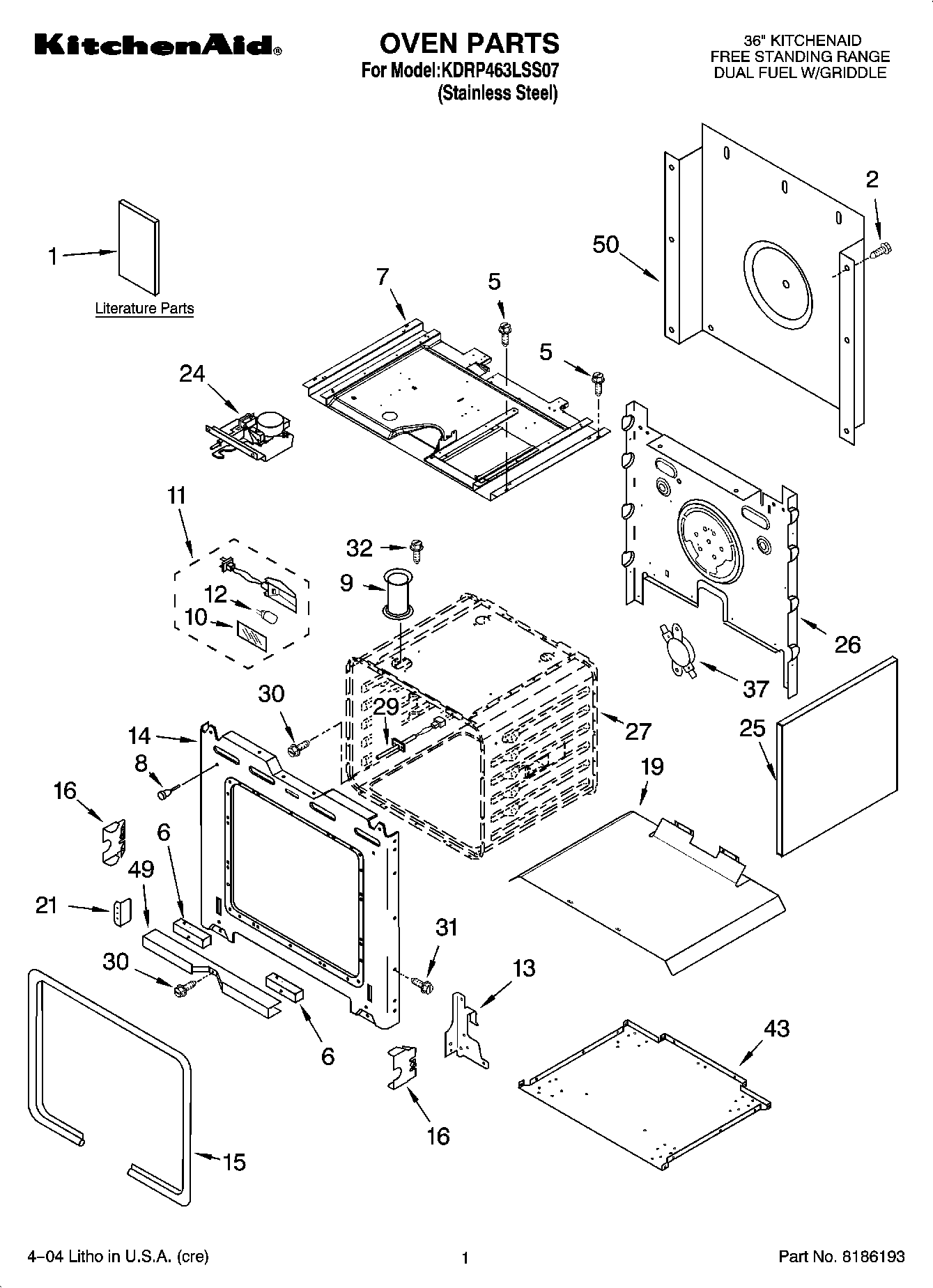

KDRP463LSS07 01 – OVEN PARTSadmin2025-04-26T10:25:59+00:00KDRP463LSS07 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | Safer Cooking Tips |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Conversion Instructions) |
| 1 | Literature Parts (Installation Instructions) |
| 2 | WP4449809 Whirlpool Screw |
| 5 | Screw |
| 6 | Spacer, Foam |
| 7 | Top, Chassis |
| 8 | 4448520 Whirlpool Oven Bumper |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 11 | WP4448972 Whirlpool Oven Light |
| 11 | 4449748 Whirlpool Oven Screw |
| 12 | WP4452164 Whirlpool 12V 5W Halogen Light Bulb |
| 13 | WP4455606 Whirlpool Right Hand Hinge |
| 13 | WP4455605 Whirlpool Left Hand Hinge |
| 14 | Frame, Front |
| 15 | W10858111 Whirlpool Door Gasket |
| 16 | 4452152 Whirlpool Oven Mounting Bracket |
| 19 | Support, Insulation |
| 21 | Bracket, Support |
| 24 | WP9760889 Whirlpool Door Latch |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 30 | WP4449154 Whirlpool Screw |
| 31 | Screw |
| 32 | SCREW |
| 37 | WP8300802 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | Insulation, Back |
| 50 | Insulation, Wrap |
| 50 | WP4451747 Whirlpool Rear Cover |
| 50 | FOLLOWING PARTS NOT ILLUSTRATED INSULATION |
