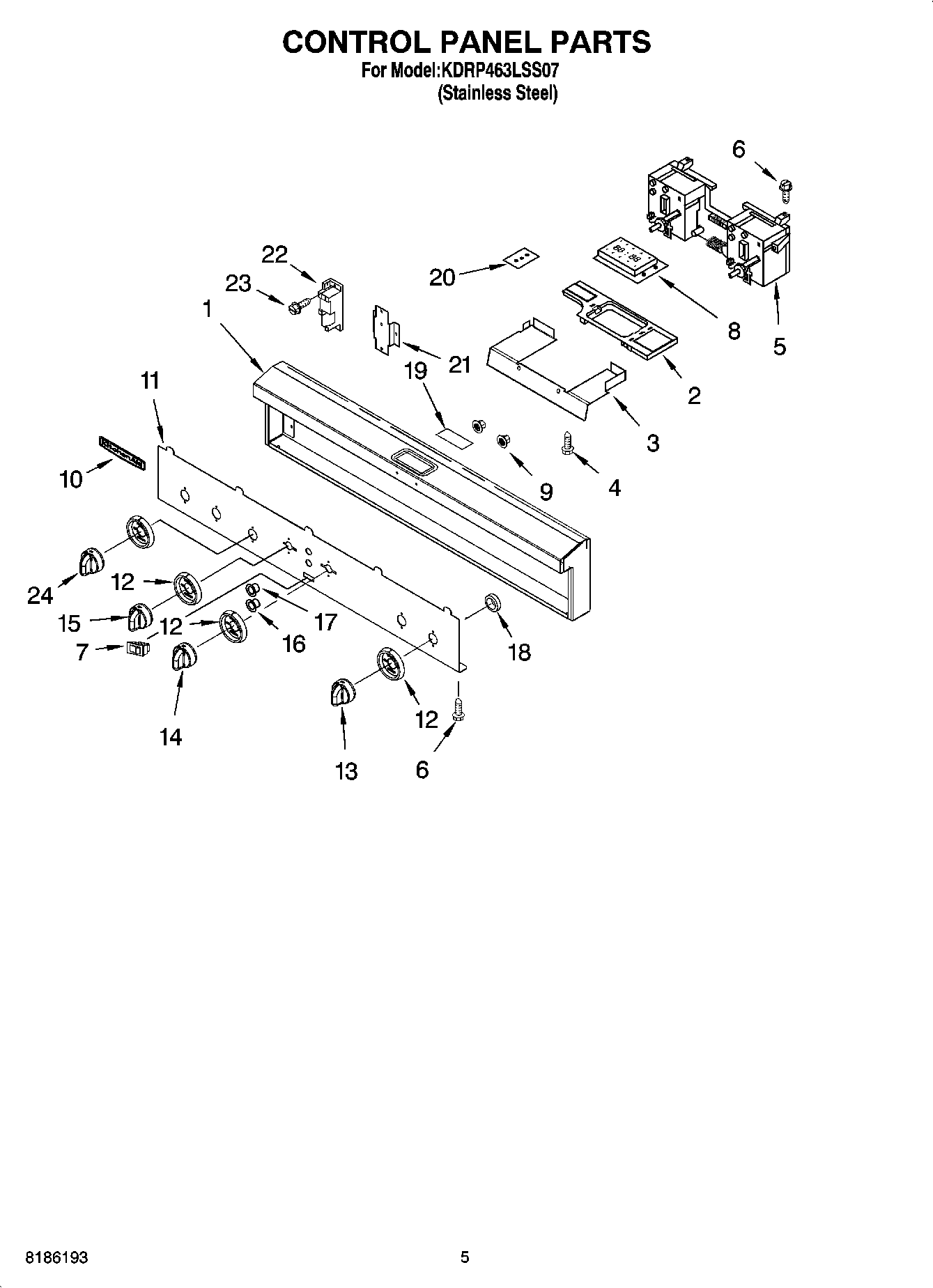

KDRP463LSS07 04 – CONTROL PANEL PARTS

KDRP463LSS07 04 – CONTROL PANEL PARTS

Written by

in

KDRP463LSS07 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control
2Bracket, Display
3Bracket, Display Mounting
4WP3196557 Whirlpool Screw
58186393 Whirlpool Control Board
6WPW10132940 Whirlpool Dishwasher Screw
7WP4452842 Whirlpool Light Switch
8WP4452999 Whirlpool Display Assembly
9WP2004333 Whirlpool Refrigerator Nut
10Nameplate (Black)
11Face, Control Panel
12Bezel, Knob
13WPW10078400 Whirlpool Knob Assembly
144455115 Whirlpool Oven Knob
154455141 Whirlpool Oven Knob
16Button, Cancel
17WP4452997 Whirlpool PB Switch
18Spacer Ring
19Glass, Display
20W10491984 Whirlpool Switch Seal
21Bracket, Spark Module
22WPW10110491 Whirlpool Spark Module
23WP12990527 Whirlpool Microwave Screw
248284743 Whirlpool Knob
