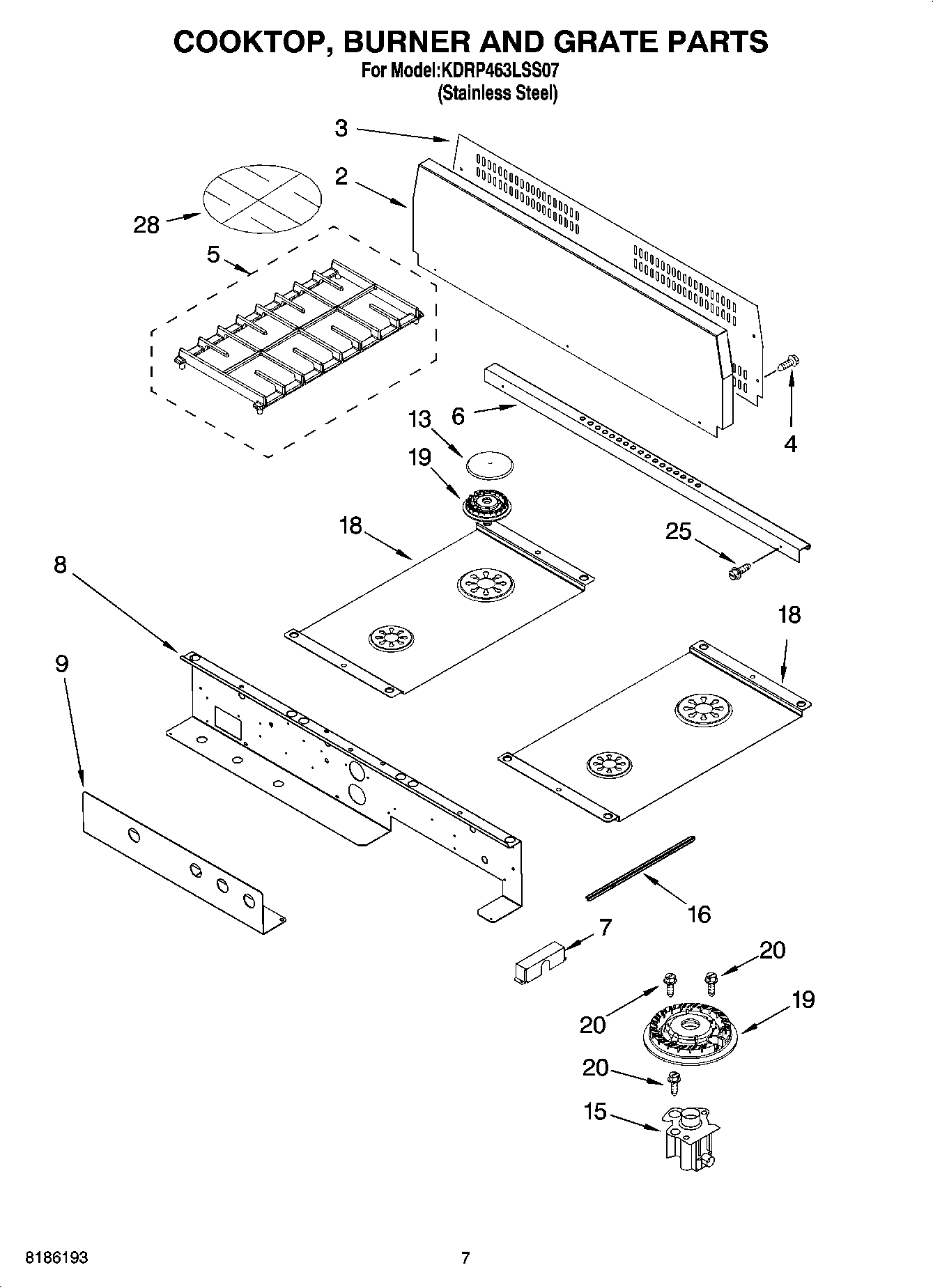

KDRP463LSS07 06 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
2Trim, Backsplash
3Support, Backsplash
4WP3196557 Whirlpool Screw
5Grate, Burner
6Trim, Island
7Cover, Burner Spud
8Support, Control Panel
9Cover, Control Panel
13Cap, Burner ((14K))
13WP8284669 Whirlpool Burner Cap
15Orifice Holder (Includes Orific & Ignitor) (Auxi)
15WPW10155786 Whirlpool Surface Burner Orifice Holder
16Rail, Support RH & LH
18Cooktop, Black
19Burner Head (Turbi)
19WP4455979 Whirlpool Range Small Burner Head
20WP3368921 Whirlpool Screw
25SCREW
28Plate, Simmer
