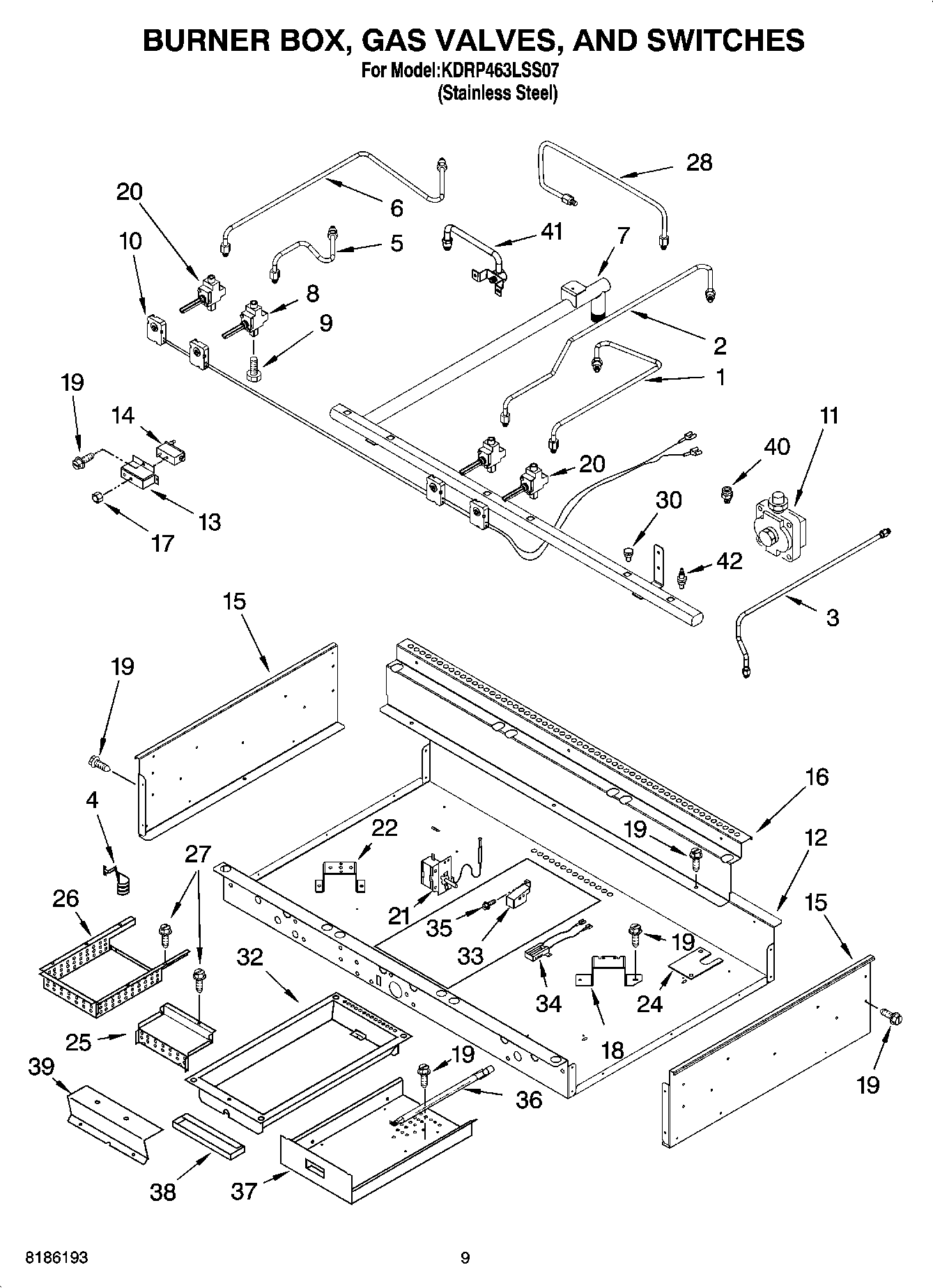

KDRP463LSS07 07 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tube, Manifold to Regulator
498005642 Whirlpool Clip
5Tubing, Gas Burner – LF
6Tubing, Gas Burner – LR
7Manifold Assembly Right Side
7WP4450118 Whirlpool Nut
7WP4449809 Whirlpool Screw
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10WP3188425 Whirlpool Seal Switch
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
13Bracket, Griddle Valve
14Valve, Griddle
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
17WP488130 Whirlpool Air Conditioner Nut
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WP4456816 Whirlpool Burner Valve
21Griddle, T-Stat
22Bracket, T-Stat
24Cover, Manifold
25Box, Rear Lower
26Box, Front Lower
27WP12990527 Whirlpool Microwave Screw
28Tube, Griddle
30Adapter (Plug, Close)
32Module, Griddle
33Bracket, Ignitor
34Ignitor, Griddle
353400855 Whirlpool Oven Screw
36Log Burner, Griddle
37Enclosure, Griddle
38Tray, Drip
39Bracket
404453115 Whirlpool Oven Adapter
404453116 Whirlpool Oven Adapter
41Assy, Outlet Tube
42Plug, Manifold (open)
