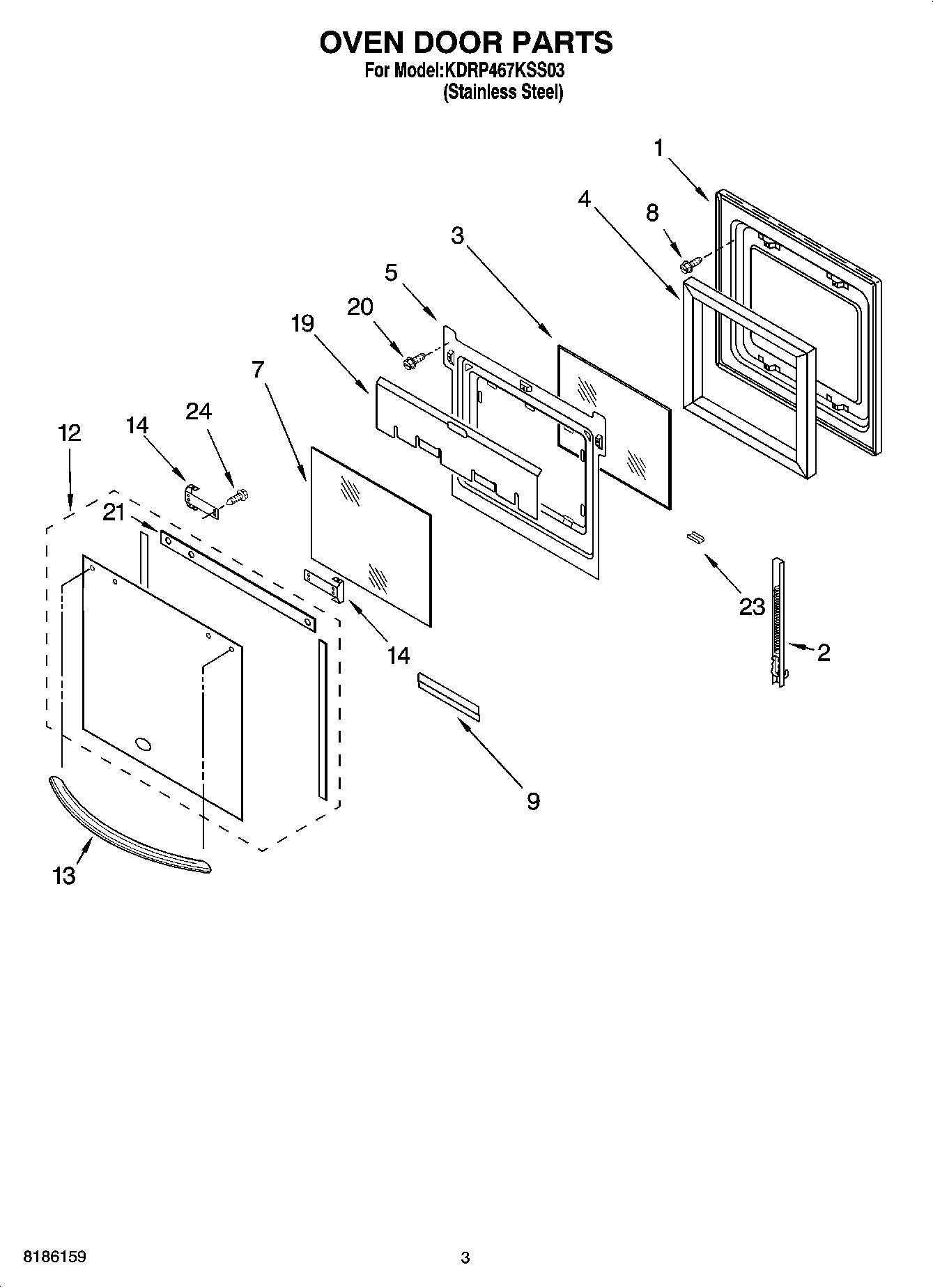

KDRP467KSS03 02 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760579 Whirlpool Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	Insulation, Door
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
9	Retainer, Glass
12	Assy, Door Glass
13	Door Handle
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	WP3400832 Whirlpool Screw
23	Retainer, Glass-Clip (Stainless Steel)
24	WPW10132940 Whirlpool Dishwasher Screw
