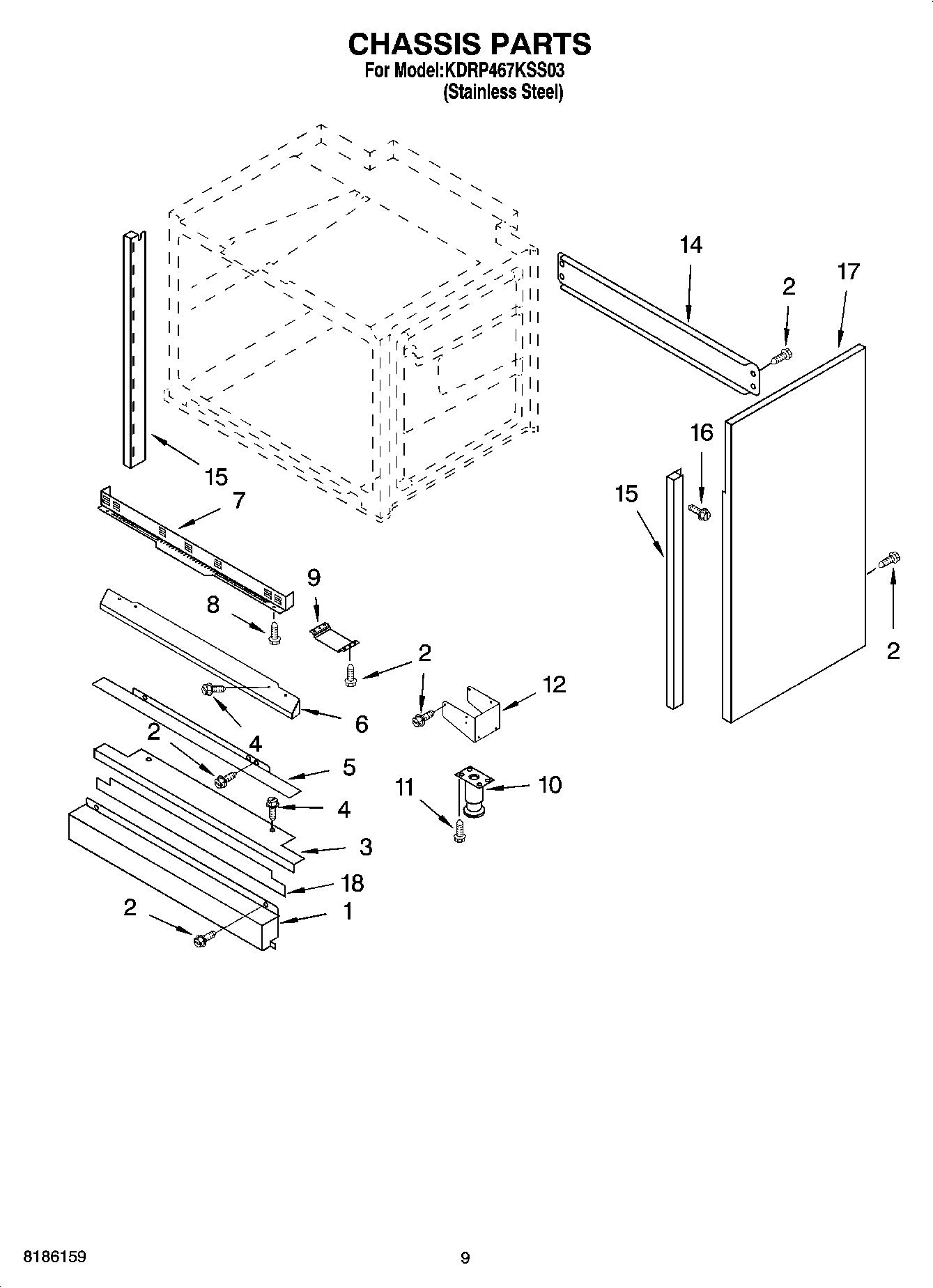

KDRP467KSS03 08 – CHASSIS PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	W10138103 Whirlpool Anti-Tip Bracket
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	Bushing
	Bushing, Fiber
	ADHESIVE, SEAL, RIBBON CABLE
	4453191 Whirlpool Seal
	Harness, Wire (Main)
	Harness, Wire Ignitor 28“
	Harness, Wire Ignitor (42“)
	Spud Kit
	Cond
	WPL 8301717
	WPL ARI81062A9
	WPL ARI81063A7
	WPL ARI81064A6
	WPL ARI81065A9
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	WP482338 Whirlpool Refrigerator Adhesive
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	814381 Whirlpool Pin
	WP4448444 Whirlpool Grommet
	Spacer, Harness
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
1	Vent, Bottom Lower
3	Backer, Trim Lower
5	Deflector, Center
6	Vent, Bottom Upper
7	WP3400805 Whirlpool Screw Assembly
7	Vent, Center
7	Gasket
9	Bracket, Mounting Regulator
10	Foot Assembly
11	3400518 Whirlpool Oven Foot Mount Screw
12	Gusset
14	Brace, Rear
15	Trim, Front (Left Side)
15	Trim, Front (Right Side)
16	WP3196557 Whirlpool Screw
17	Side Chassis (Right Side)
17	Side Chassis (Left Side)
18	Insulation, Bottom Vent
