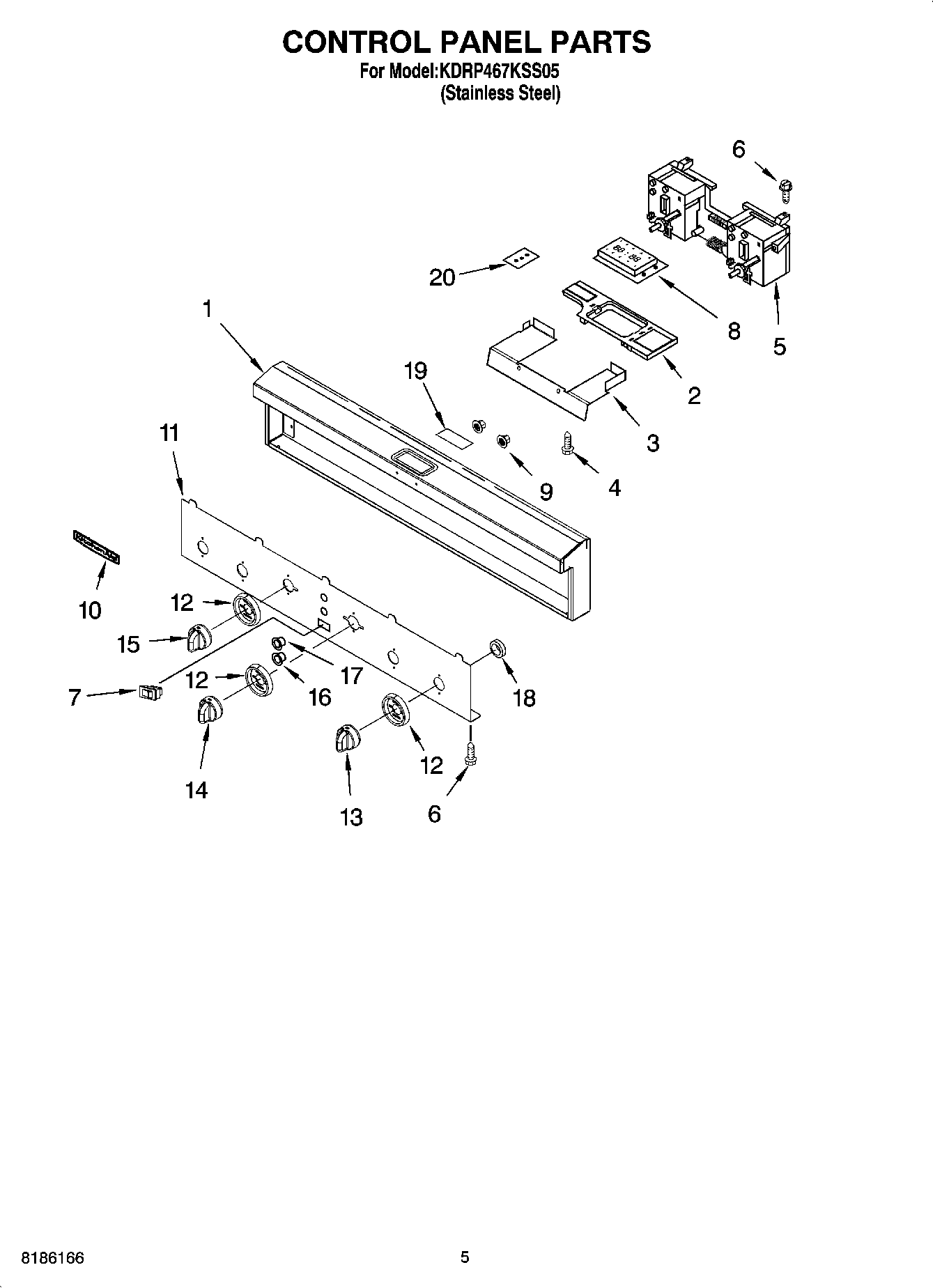

KDRP467KSS05 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	Bracket, Display
3	Bracket, Display Mounting
4	WP3196557 Whirlpool Screw
5	8186393 Whirlpool Control Board
6	Screw
7	WP4452842 Whirlpool Light Switch
8	WP4452999 Whirlpool Display Assembly
9	WP2004333 Whirlpool Refrigerator Nut
10	Nameplate (Black)
11	Face, Control Panel
12	Bezel, Knob
13	WPW10078400 Whirlpool Knob Assembly
14	4455115 Whirlpool Oven Knob
15	4455141 Whirlpool Oven Knob
16	Button, Cancel
17	WP4452997 Whirlpool PB Switch
19	Glass, Display
20	W10491984 Whirlpool Switch Seal
