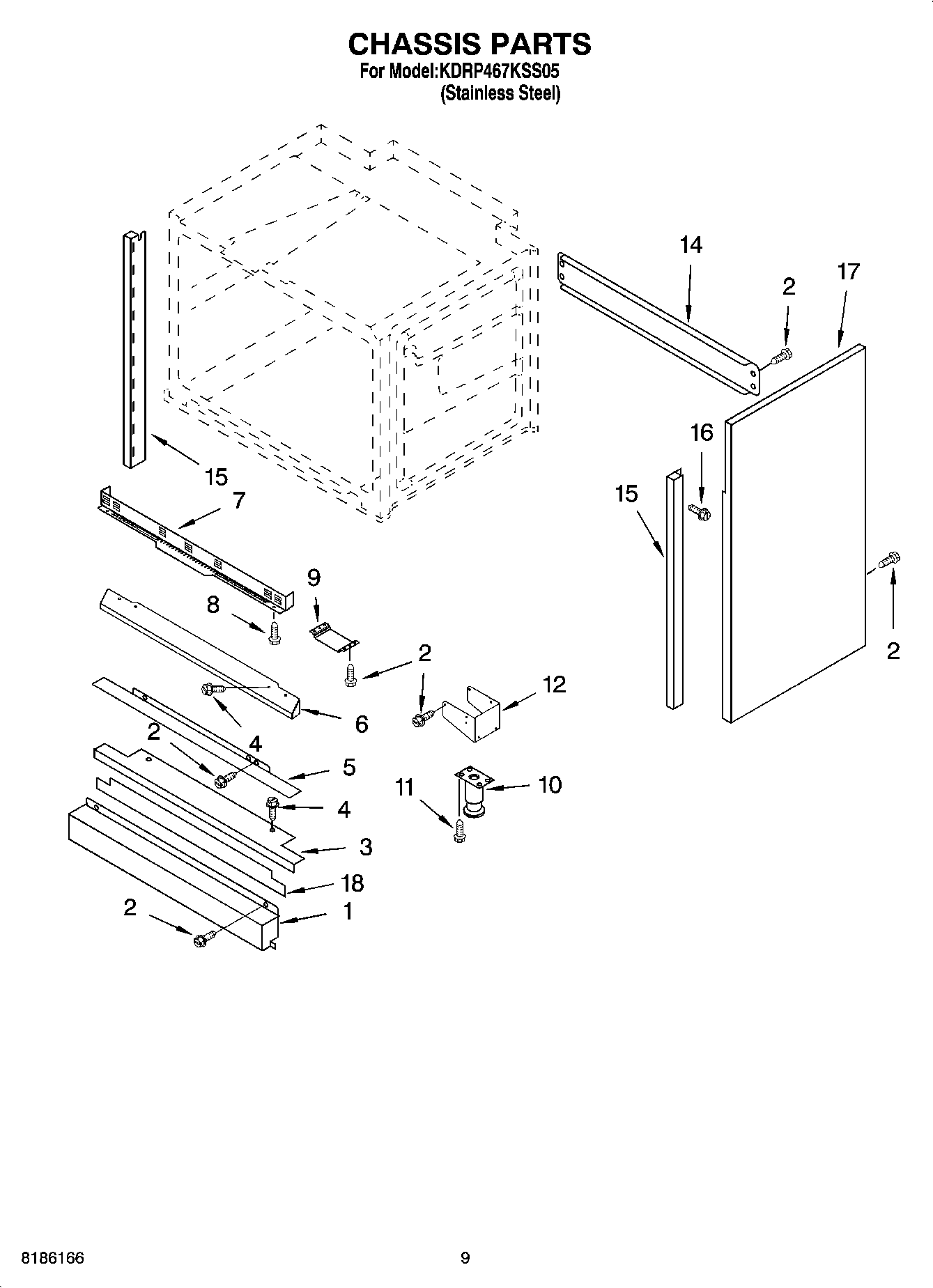

KDRP467KSS05 08 – CHASSIS PARTS, MISCELLANEOUS PARTSadmin2025-04-26T10:28:07+00:00KDRP467KSS05 08 – CHASSIS PARTS, MISCELLANEOUS PARTS
Products
| Position | Product |
|---|
| WPL ARI81078A7 |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| WPL 591014 |
| Bushing |
| Bushing, Fiber |
| Harness, Wire (Ignitor 42``) |
| ADHESIVE, SEAL, RIBBON CABLE |
| 4453191 Whirlpool Seal |
| Spud Kit |
| Cond |
| WPL ARI81079A9 |
| 4456627 Whirlpool Wire Harness |
| W10138103 Whirlpool Anti-Tip Bracket |
| Harness, Wire (Spark Module) |
| Harness, Wire (Main) |
| WPL ARI81076A7 |
| WPL ARI81077A2 |
| 18 Ga. 80~c Rating (Red) |
| Wire (12 Ga. 150 c Black) |
| WPW10339879 Whirlpool Wire Tie |
| 4450800 Whirlpool Oven Screw |
| Wire, 25`` Roll (White 14 GA.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25` Roll (Black 14 Ga.) |
| 814381 Whirlpool Pin |
| WP4448444 Whirlpool Grommet |
| Spacer, Harness |
| 242831 Whirlpool Oven Wire |
| Wire (14 Ga. 150 c Yellow) |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| WP4449809 Whirlpool Screw |
| WP482338 Whirlpool Refrigerator Adhesive |
| WP112432 Whirlpool Nut Assembly |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| 1 | Vent, Bottom Lower |
| 3 | Backer, Trim Lower |
| 5 | Deflector, Center |
| 6 | Vent, Bottom Upper |
| 7 | WP3400805 Whirlpool Screw Assembly |
| 7 | Gasket |
| 7 | Vent, Center |
| 9 | Bracket, Mounting Regulator |
| 10 | Foot Assembly |
| 11 | 3400518 Whirlpool Oven Foot Mount Screw |
| 12 | Gusset |
| 14 | Brace, Rear |
| 15 | Trim, Front (Right Side) |
| 15 | Trim, Front (Left Side) |
| 16 | WP3196557 Whirlpool Screw |
| 17 | Side Chassis (Left Side) |
| 17 | Side Chassis (Right Side) |
| 18 | Insulation, Bottom Vent |
