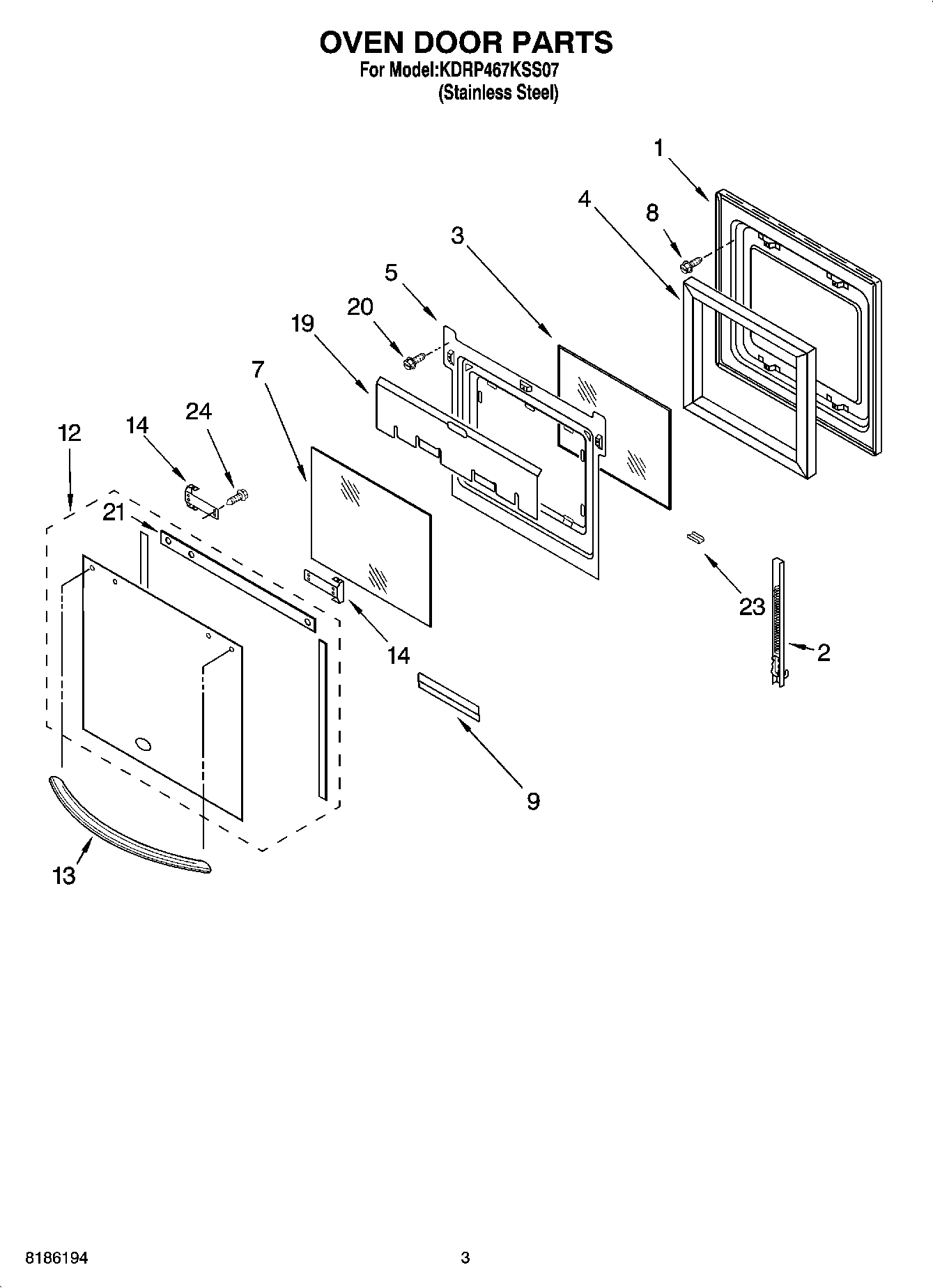

KDRP467KSS07 02 – OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2WP9760579 Whirlpool Right Door Hinge
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4Insulation, Door
5Retainer, Glass
7WP4449263 Whirlpool Inner Door Glass
8WP4449743 Whirlpool Screw
9Retainer, Glass
12Assy, Door Glass
13Door Handle
144455803 Whirlpool Oven Bracket
14Bracket, Handle (L.Hand)
19Shield, Heat
20WP4449809 Whirlpool Screw
21Seal, Door Top
23WP3400832 Whirlpool Screw
23Retainer, Glass-Clip (Stainless Steel)
24WPW10132940 Whirlpool Dishwasher Screw
