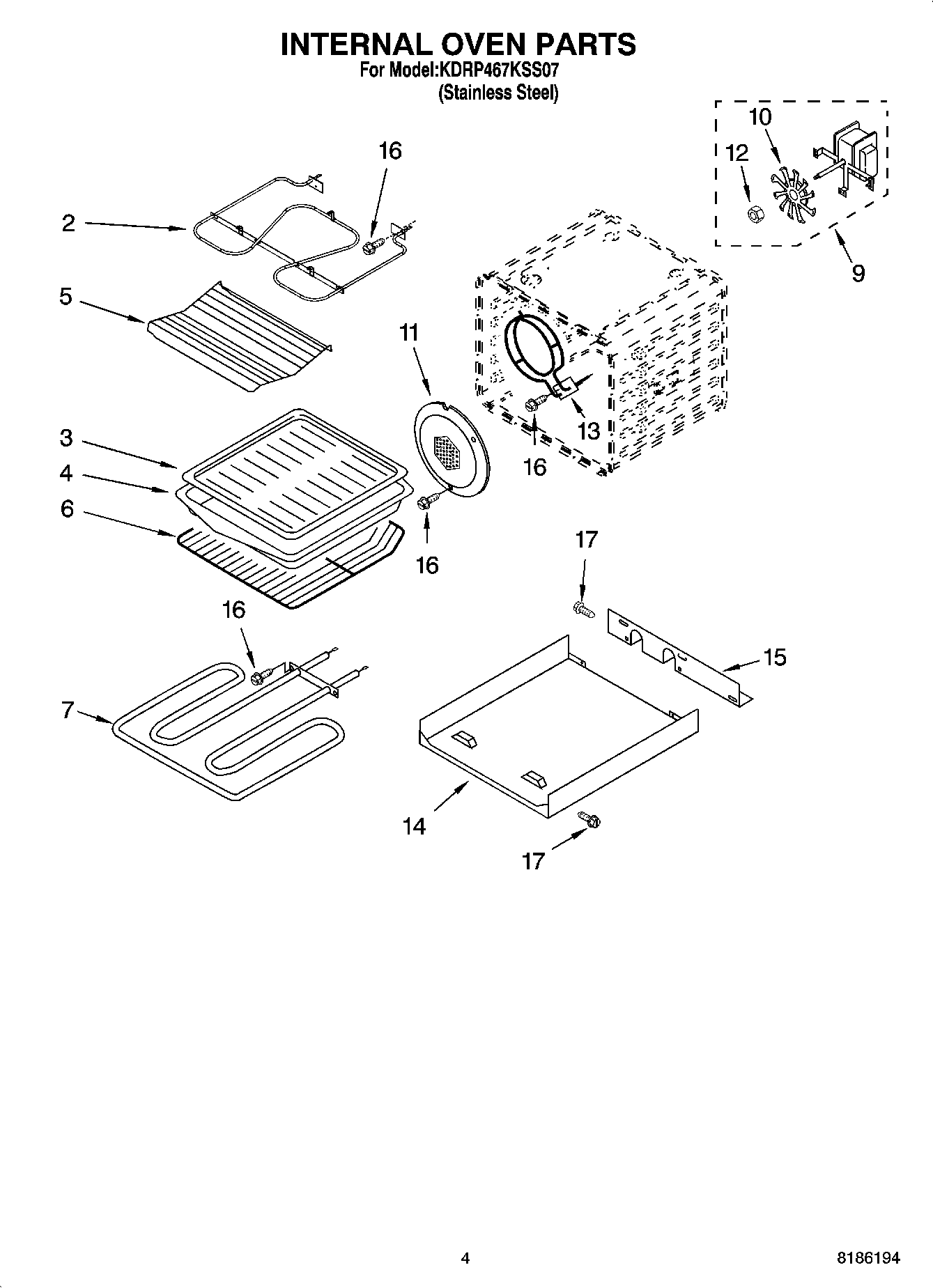

KDRP467KSS07 03 – INTERNAL OVEN PARTS

Products

PositionProduct
29760773 Whirlpool Oven Broil Element
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
5Rack, Roasting
6Rack, Oven
7Element, Hidden Bake
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WPW10160821 Whirlpool Fan Cover
12Nut
13WP9760769 Whirlpool Element Assembly
14Tray, Hidden Bake
15Cover, Access
16WP4449154 Whirlpool Screw
17WP4449809 Whirlpool Screw
