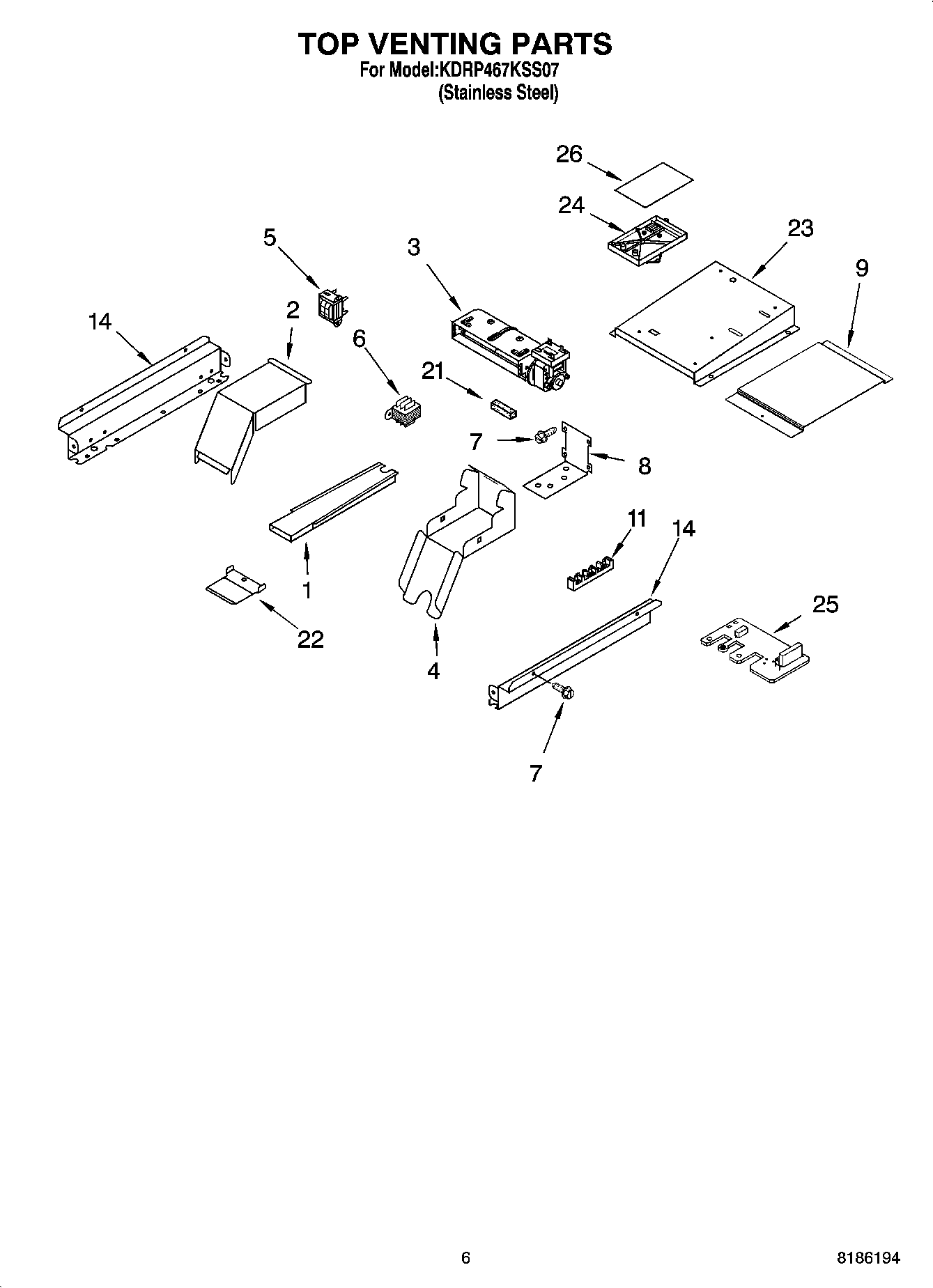

KDRP467KSS07 05 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP3400015 Whirlpool Screw
3	W10810687 Whirlpool Blower Assembly
4	4455177 Whirlpool Oven Bottom Elbow
5	WP9760588 Whirlpool Transformer
6	Transformer, Control
7	WP4449809 Whirlpool Screw
8	WP4455352 Whirlpool Mounting Bracket
9	Bracket, Control Mounting Bottom
11	WP8203546 Whirlpool Terminal Block
14	Side, Control Top (R.Hand)
21	W10491987 Whirlpool Foam Seal
22	W10145009 Whirlpool Vent Deflector
23	Bracket, Control Mounting
24	Control, Zodiac
25	WP4451985 Whirlpool Noise Filter Board
25	Screw
26	Insulator, Control Board
