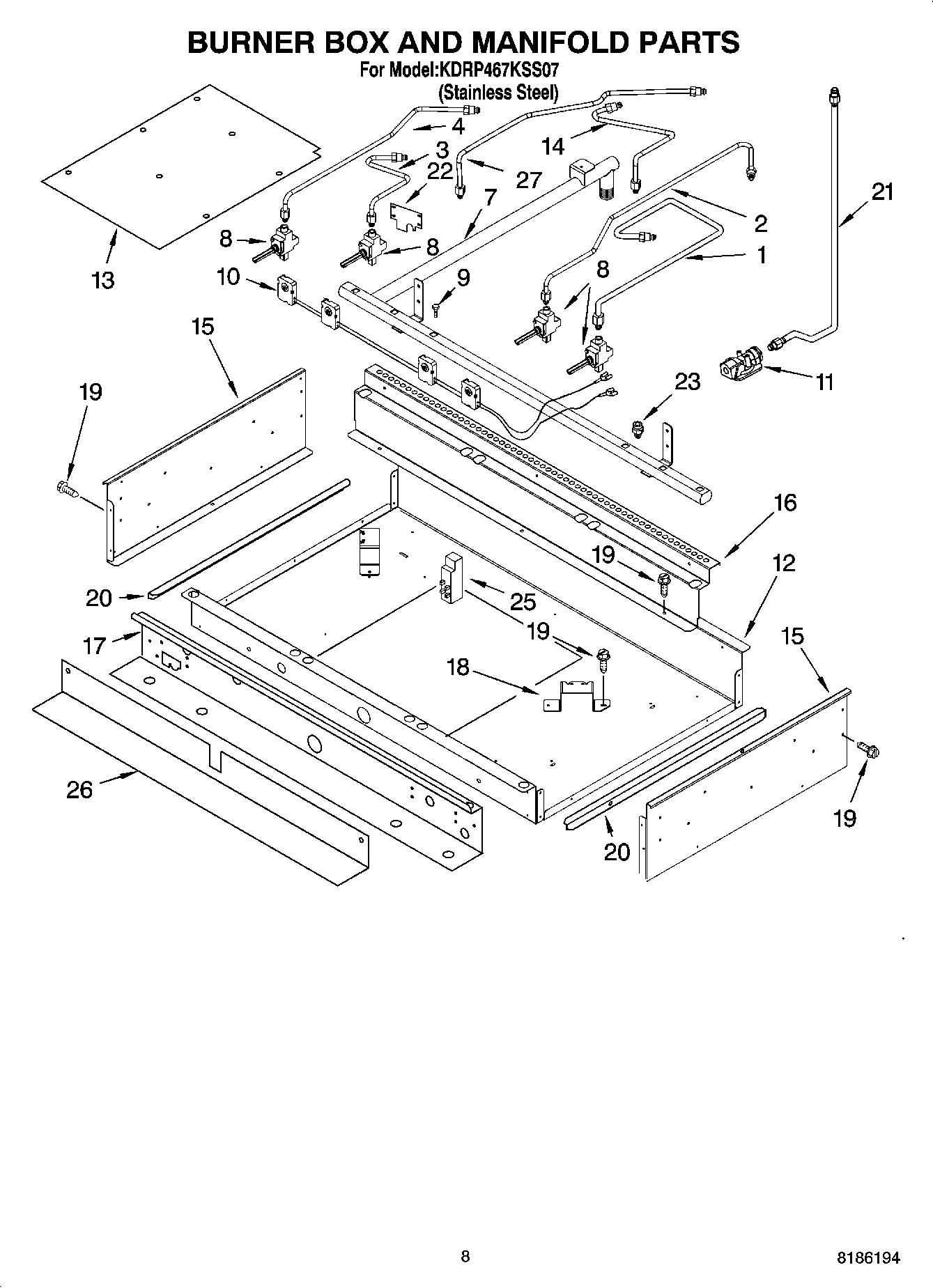

KDRP467KSS07 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – LF
4Tubing, Gas Burner – LR
7Manifold Assembly Right Side
8WP4456816 Whirlpool Burner Valve
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10Burner Switch & Harness Assembly
10WP3188425 Whirlpool Seal Switch
11WP9759091 Whirlpool Regulator
12Box, Burner
13Plate, Burner Holder
14Tubing, Gas Burner – CF
15Side, Burner Box (Right Side)
15Side, Burner Box (Left Side)
16Support, Rear
17Support, Cooktop
18Bracket, Burner
19WP3177991 Whirlpool Screw
20Rail, Support RH & LH
21Tube, Manifold
22Cover, Manifold
23Adapter (Plug, Close)
234453115 Whirlpool Oven Adapter
23WP4450118 Whirlpool Nut
234453116 Whirlpool Oven Adapter
25WPW10110486 Whirlpool Spark Module
26Cover
27Tubing, Gas Burner – CR
