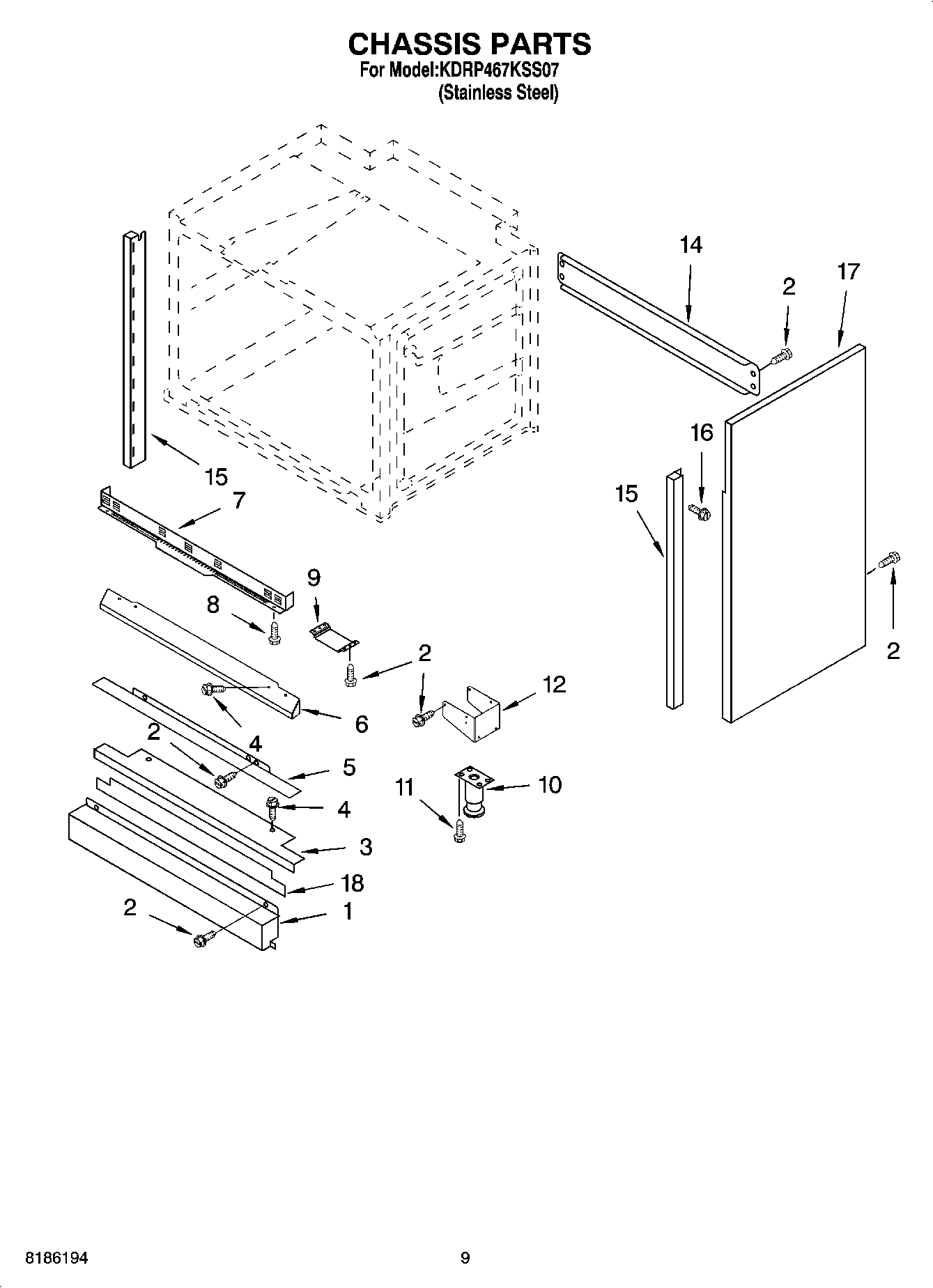

KDRP467KSS07 08 – CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI81085A6
Wire (14 Ga. 200 c Brown)
1
WPL 591014
Bushing
Bushing, Fiber
Harness, Wire (Ignitor 42“)
ADHESIVE, SEAL, RIBBON CABLE
4453191 Whirlpool Seal
WPL 8301282
WPL ARI81086A4
4456627 Whirlpool Wire Harness
W10138103 Whirlpool Anti-Tip Bracket
Conduit
Harness, Wire (Spark Module)
WPL 8302209
WPL ARI81083A4
WPL ARI81084A1
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
WP4448444 Whirlpool Grommet
Spacer, Harness
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WP4449809 Whirlpool Screw
Wire (14 Ga. 150 c Brown)
1Vent, Bottom Lower
3Backer, Trim Lower
5Deflector, Center
6Vent, Bottom Upper
7Gasket
7WP3400805 Whirlpool Screw Assembly
7Vent, Center
9Bracket, Mounting Regulator
10Foot Assembly
113400518 Whirlpool Oven Foot Mount Screw
12Gusset
14Brace, Rear
15Trim, Front (Right Side)
15Trim, Front (Left Side)
16WP3196557 Whirlpool Screw
17Side Chassis (Left Side)
17Side Chassis (Right Side)
18Insulation, Bottom Vent
