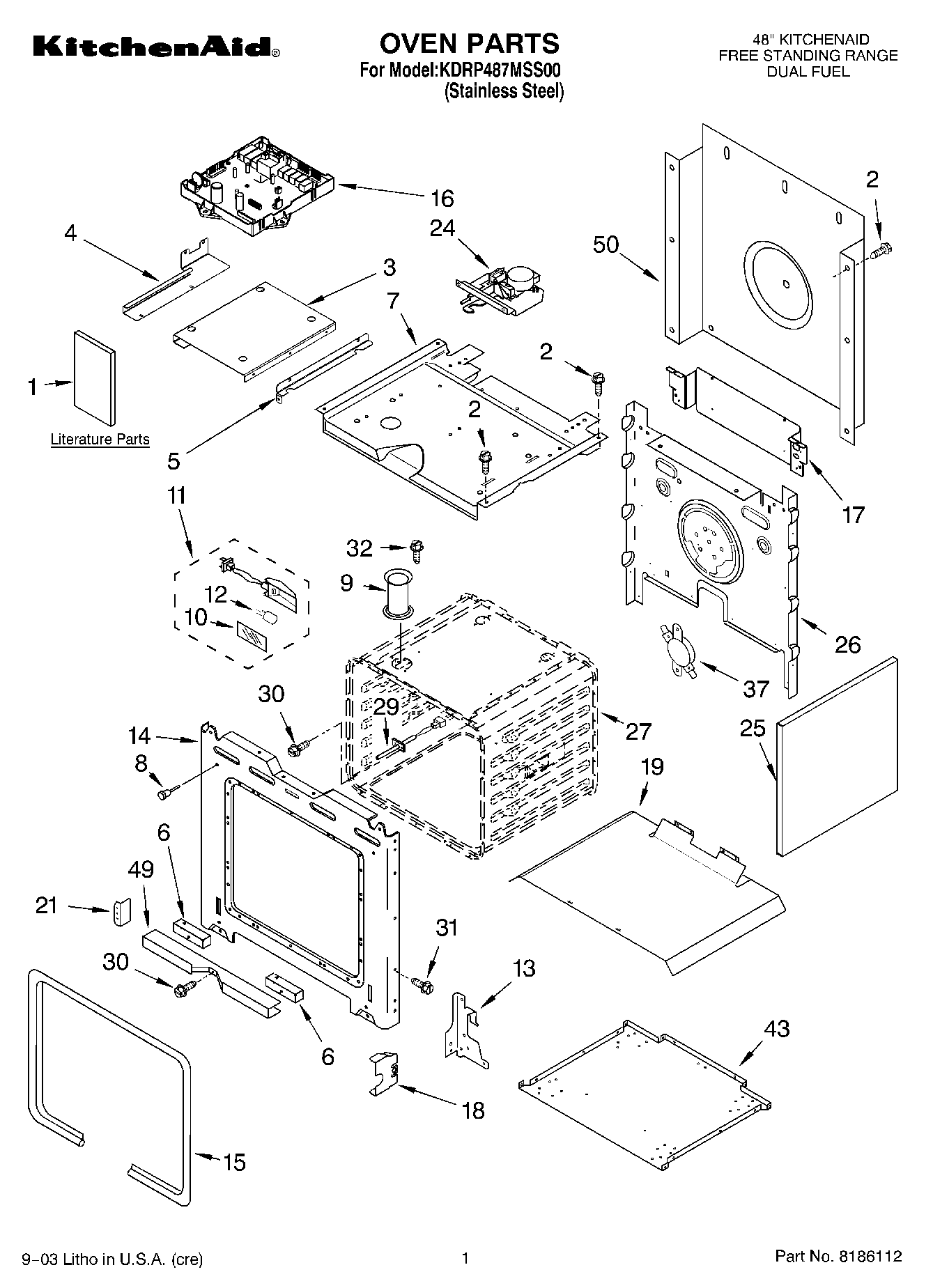

KDRP487MSS00 01 – OVEN PARTS

KDRP487MSS00 01 – OVEN PARTS

Written by

in

KDRP487MSS00 01 – OVEN PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Safer Cooking Tips
1Literature Parts (Conversion Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
2WP4449809 Whirlpool Screw
3Bracket, Control Support
4Bracket, Control (Left Side)
5Bracket, Control (Right Side)
6Spacer, Foam
7Top, Chassis
84448520 Whirlpool Oven Bumper
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WP4455606 Whirlpool Right Hand Hinge
13WP4455605 Whirlpool Left Hand Hinge
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
16Control, Zodiac (Assist Lft Side)
16Control, Zodiac (Assist, Rt Side)
17Filler, Rear
184452152 Whirlpool Oven Mounting Bracket
194451476 Whirlpool Support
21Bracket, Support
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4449154 Whirlpool Screw
31Screw
32SCREW
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4449314 Whirlpool Insulation
50WP4450363 Whirlpool Insulation
50WP4451747 Whirlpool Rear Cover
50FOLLOWING PARTS NOT ILLUSTRATED INSULATION
