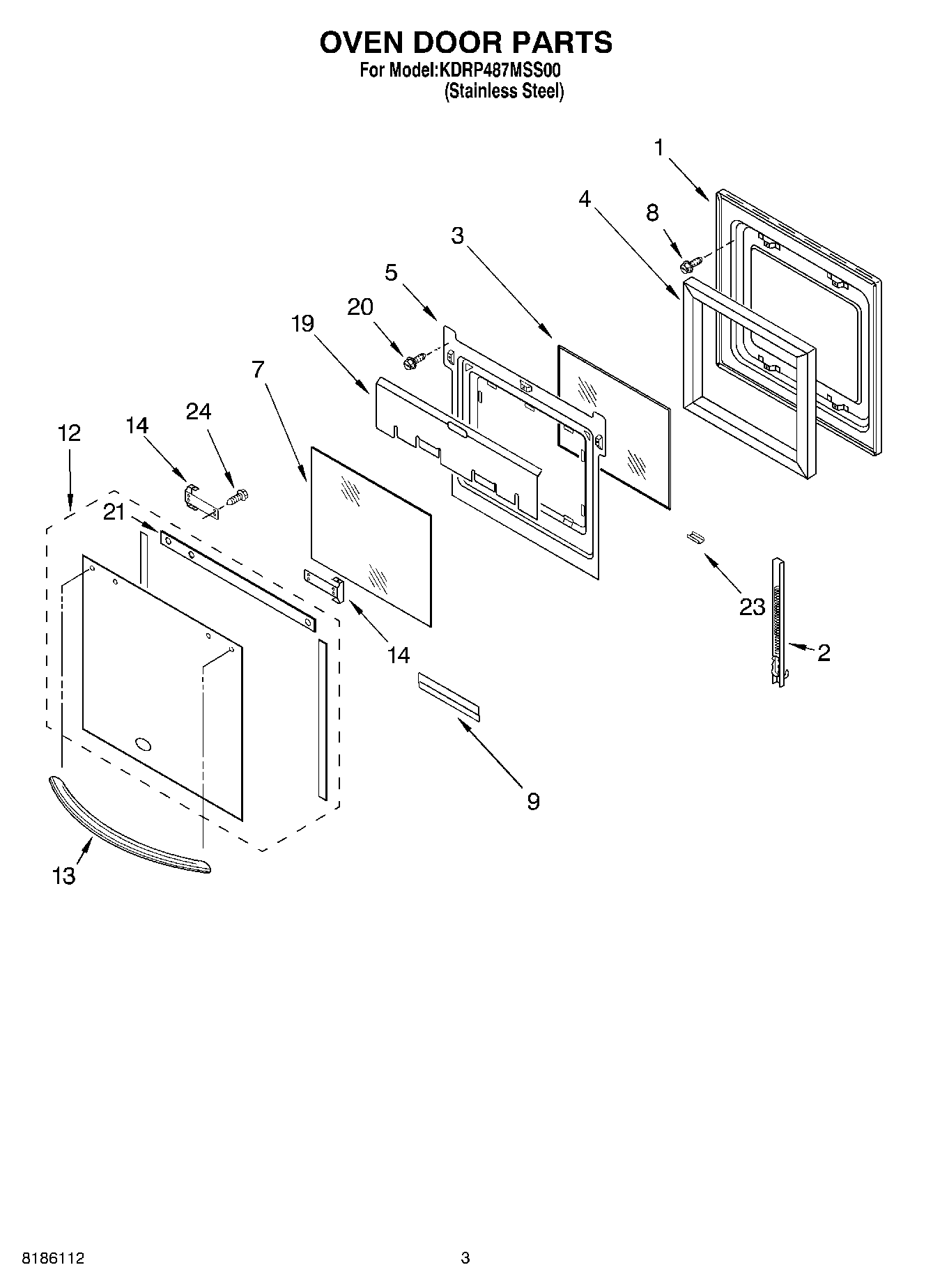

KDRP487MSS00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
3	Glass, Inner
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	WP4449247 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
9	Retainer, Glass
12	Assy, Door Glass
13	Door Handle (S.Steel)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
21	Seal, Door
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
24	WPW10132940 Whirlpool Dishwasher Screw
