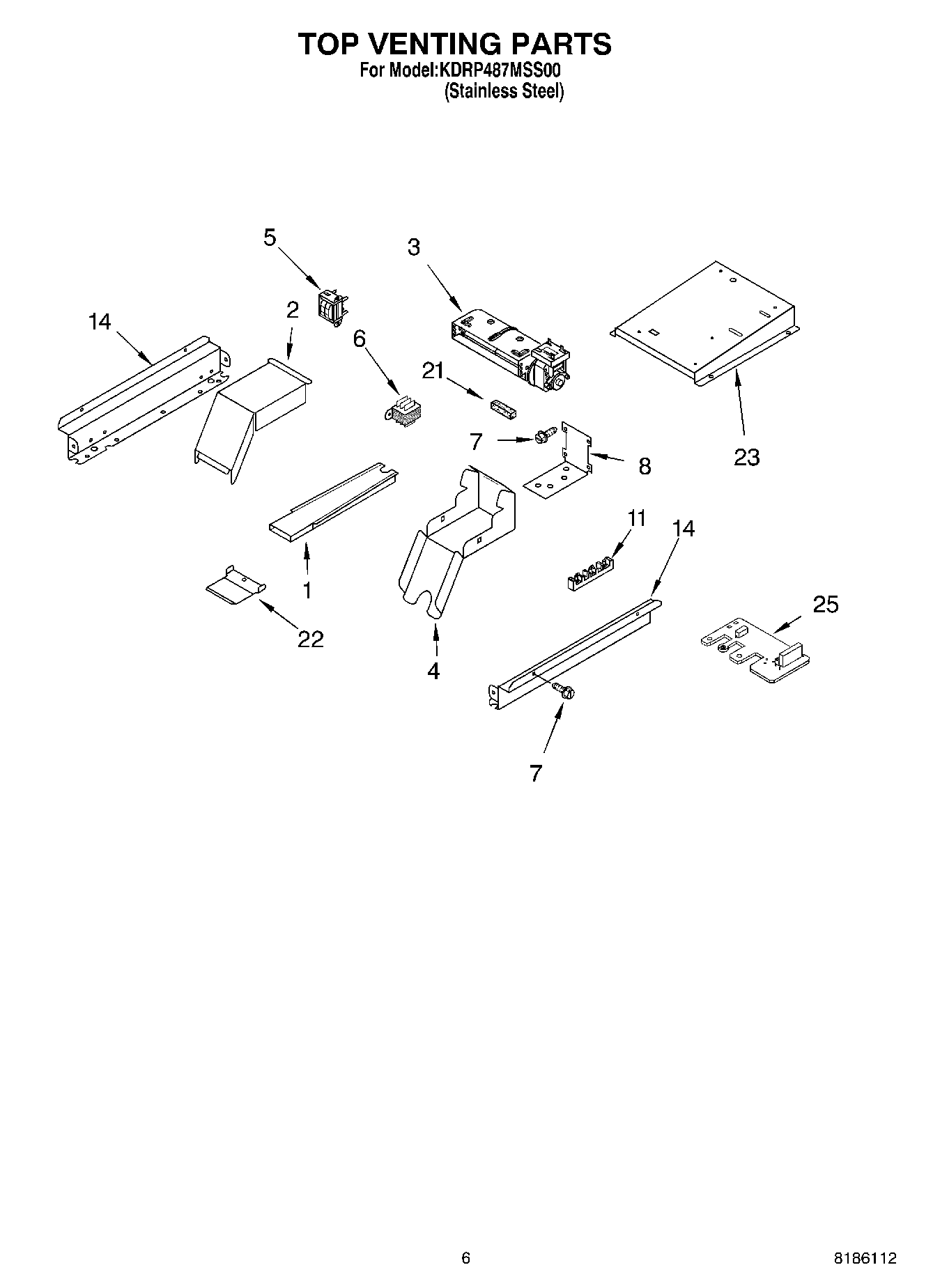

KDRP487MSS00 05 – TOP VENTING PARTS

KDRP487MSS00 05 – TOP VENTING PARTS

Written by

in

KDRP487MSS00 05 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP3400015 Whirlpool Screw
3W10810687 Whirlpool Blower Assembly
44455177 Whirlpool Oven Bottom Elbow
5WP9760588 Whirlpool Transformer
6Transformer, Control
7WP4449809 Whirlpool Screw
8WP4455352 Whirlpool Mounting Bracket
11WP8203546 Whirlpool Terminal Block
14Side, Control Top (R.Hand)
21W10491987 Whirlpool Foam Seal
22W10145009 Whirlpool Vent Deflector
23Bracket, Control Mounting
25Screw
25WP4451985 Whirlpool Noise Filter Board
