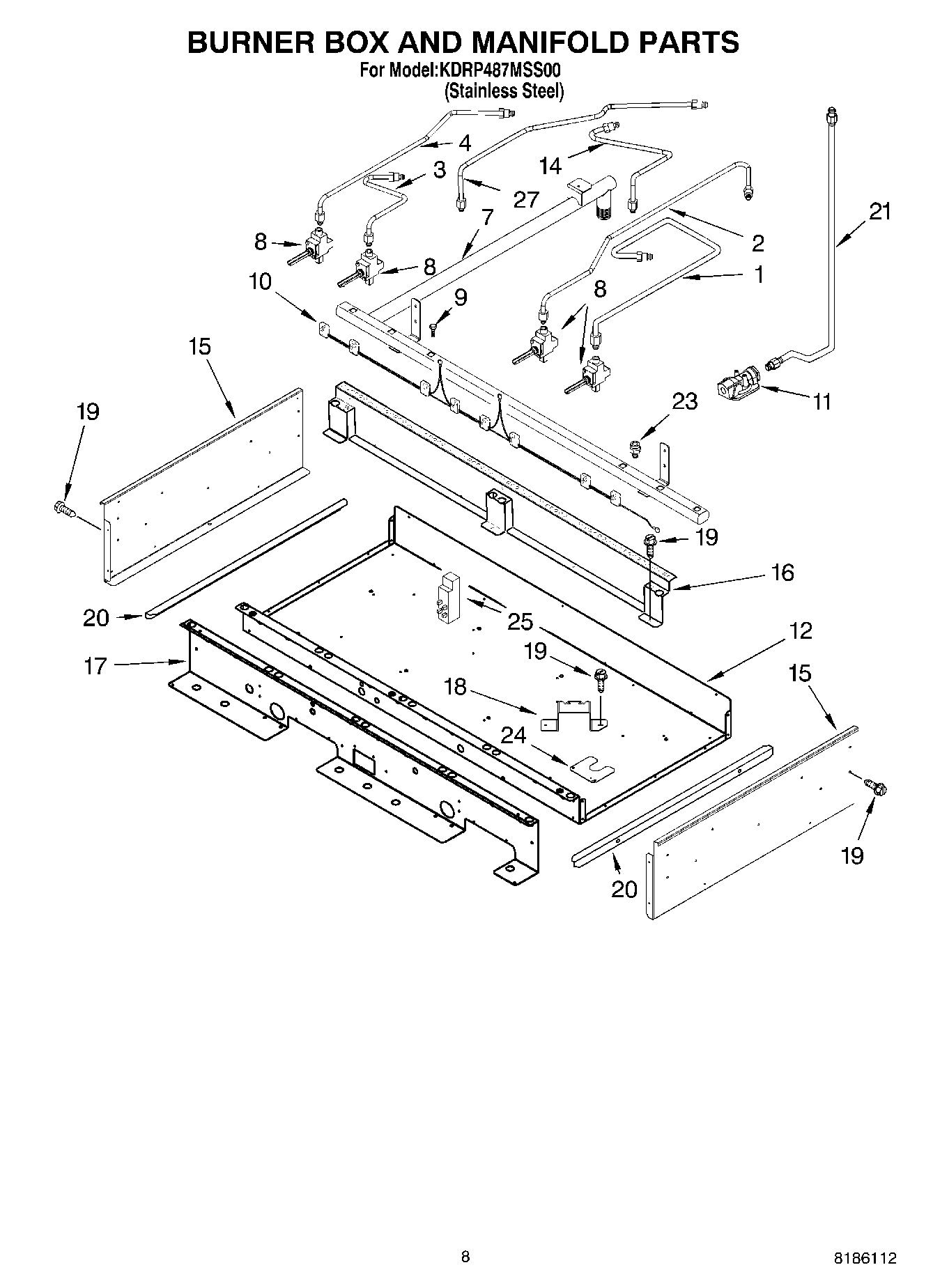

KDRP487MSS00 07 – BURNER BOX AND MANIFOLD PARTS

Products

Position	Product
1	Tubing, Gas (Burner – RF)
1	Tubing, Gas (Center Right)
1	Tubing, Gas (30“)
2	Tubing, Gas Burner – RR
3	Tubing, Gas Burner – LF
4	Tubing, Gas Burner – LR
7	Manifold Assembly Right Side
8	Valve, Burner (Small (1))
8	Valve, Burner (Silver)
9	Bolt (Gas Valve)
10	WP3188425 Whirlpool Seal Switch
10	Burner Switch & Harness Assembly
11	WP9759091 Whirlpool Regulator
12	8186270 Whirlpool Oven Burner Box
14	Tubing, Gas Burner – CF
15	Side, Burner Box (Left Side)
15	Side, Burner Box (Right Side)
16	Support, Rear
17	Support, Cooktop
18	Bracket, Burner
19	WP3177991 Whirlpool Screw
20	Rail, Support RH & LH
21	Tube, Manifold
23	4453115 Whirlpool Oven Adapter
23	WP4450118 Whirlpool Nut
23	4453116 Whirlpool Oven Adapter
24	Cover, Manifold Slot
25	WPW10110491 Whirlpool Spark Module
27	Tubing, Gas Burner – CR
