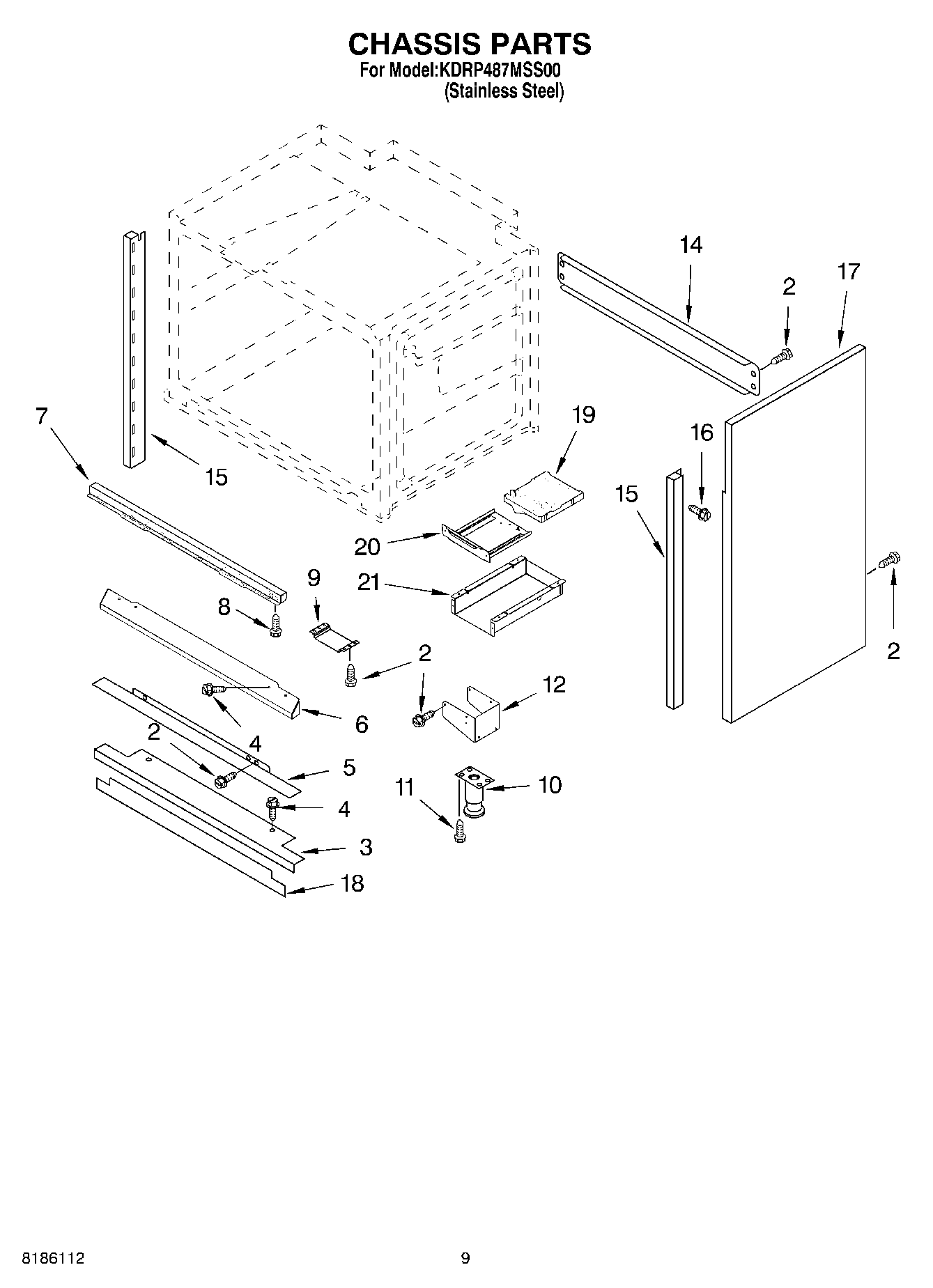

KDRP487MSS00 08 – CHASSIS PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI81099A3
	WPL 8301582
	4453191 Whirlpool Seal
	WPL 8301196
	ADHESIVE, SEAL, RIBBON CABLE
	Bushing, Fiber
	Bushing
	WPL 591014
	1
	Spud Kit
	W10138103 Whirlpool Anti-Tip Bracket
	WPL ARI81098A1
	WPL ARI81097A4
	WPL ARI81096A5
	WPL 8302377
	WPL 8302203
	WPL 8301264
	WPL 8284772
	Harness,
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25` Roll (Red 14 Ga.)
	WP4449809 Whirlpool Screw
	28“
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	WP482338 Whirlpool Refrigerator Adhesive
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	814381 Whirlpool Pin
	WP4448444 Whirlpool Grommet
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Spacer, Harness
3	Backer, Trim Lower
5	Deflector, Center
6	Vent, Bottom Upper
7	Gasket
7	Vent, Center
7	WP3400805 Whirlpool Screw Assembly
9	Bracket, Mounting Regulator
10	Foot Assembly
11	3400518 Whirlpool Oven Foot Mount Screw
12	Gusset
14	Brace, Rear
15	Trim, Front (Left Side)
15	Trim, Front (Right Side)
16	WP3196557 Whirlpool Screw
17	Side Chassis (Right Side)
17	Side Chassis (Left Side)
18	Insulation, Bottom Vent
19	Control, Master
20	Box, Control
21	Bracket, Control Box
