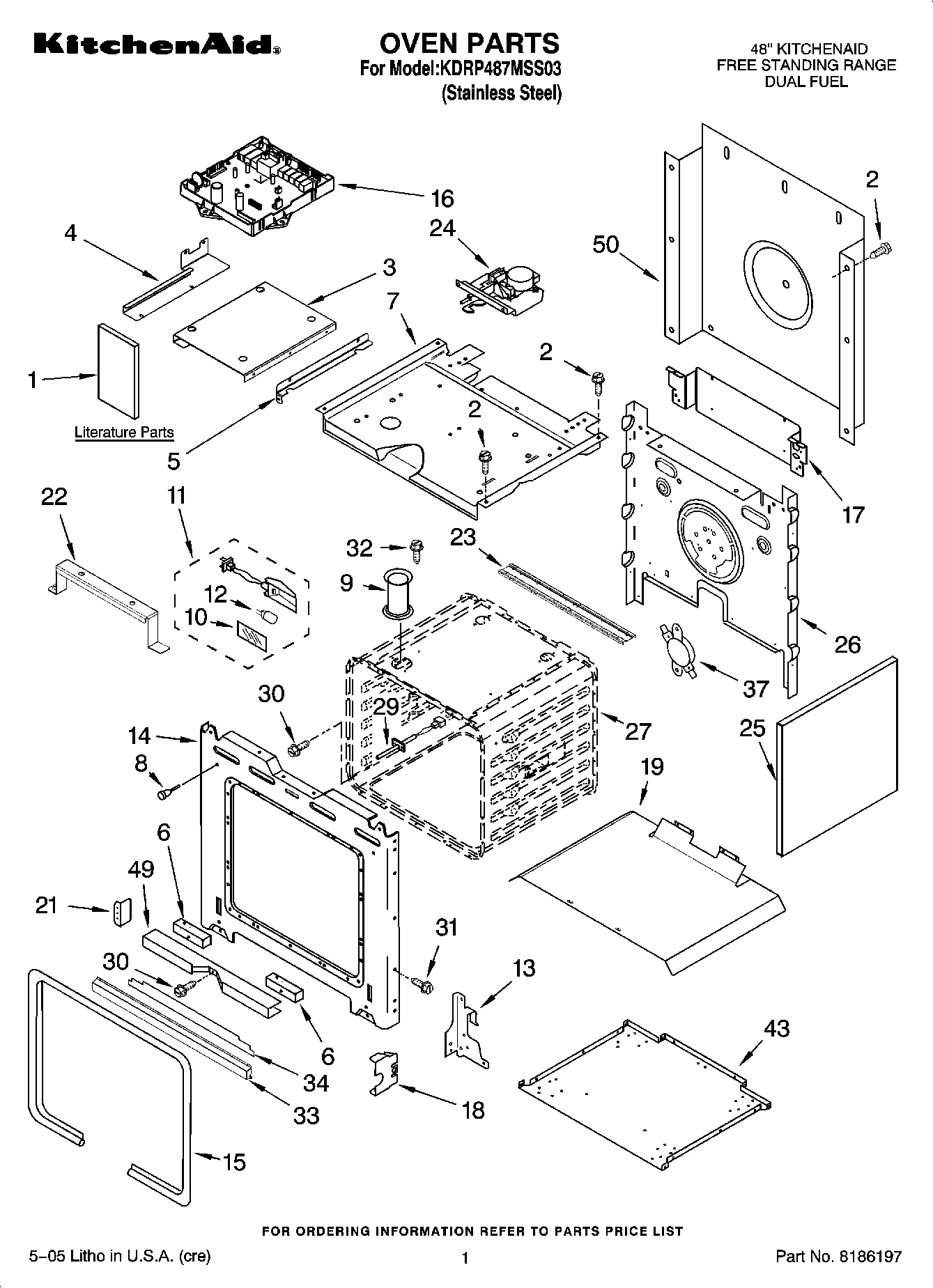

KDRP487MSS03 01 – OVEN PARTS

Products

Position	Product
1	Conversion Instructions
1	Installation Instructions
1	Safe Cooking Tips
1	Use & Care Guide
1	Tech Sheet
3	Bracket, Control Support
4	Bracket, Control (Left Side)
5	Bracket, Control (Right Side)
6	Spacer, Foam
7	Top, Chassis
8	4448520 Whirlpool Oven Bumper
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	WP4455606 Whirlpool Right Hand Hinge
13	WP4455605 Whirlpool Left Hand Hinge
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
16	Control, Zodiac (Assist, Rt Side)
16	Control, Zodiac (Assist Lft Side)
17	Filler, Rear
18	4452152 Whirlpool Oven Mounting Bracket
19	4451476 Whirlpool Support
21	Bracket, Support
22	Screw
22	Support, Wiring
23	Channel, Support
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	Screw
32	SCREW
33	Vent, Bottom Lower
33	WP4449809 Whirlpool Screw
34	Insulation, Bottom Vent
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
50	WP4449314 Whirlpool Insulation
50	WP4450363 Whirlpool Insulation
50	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
