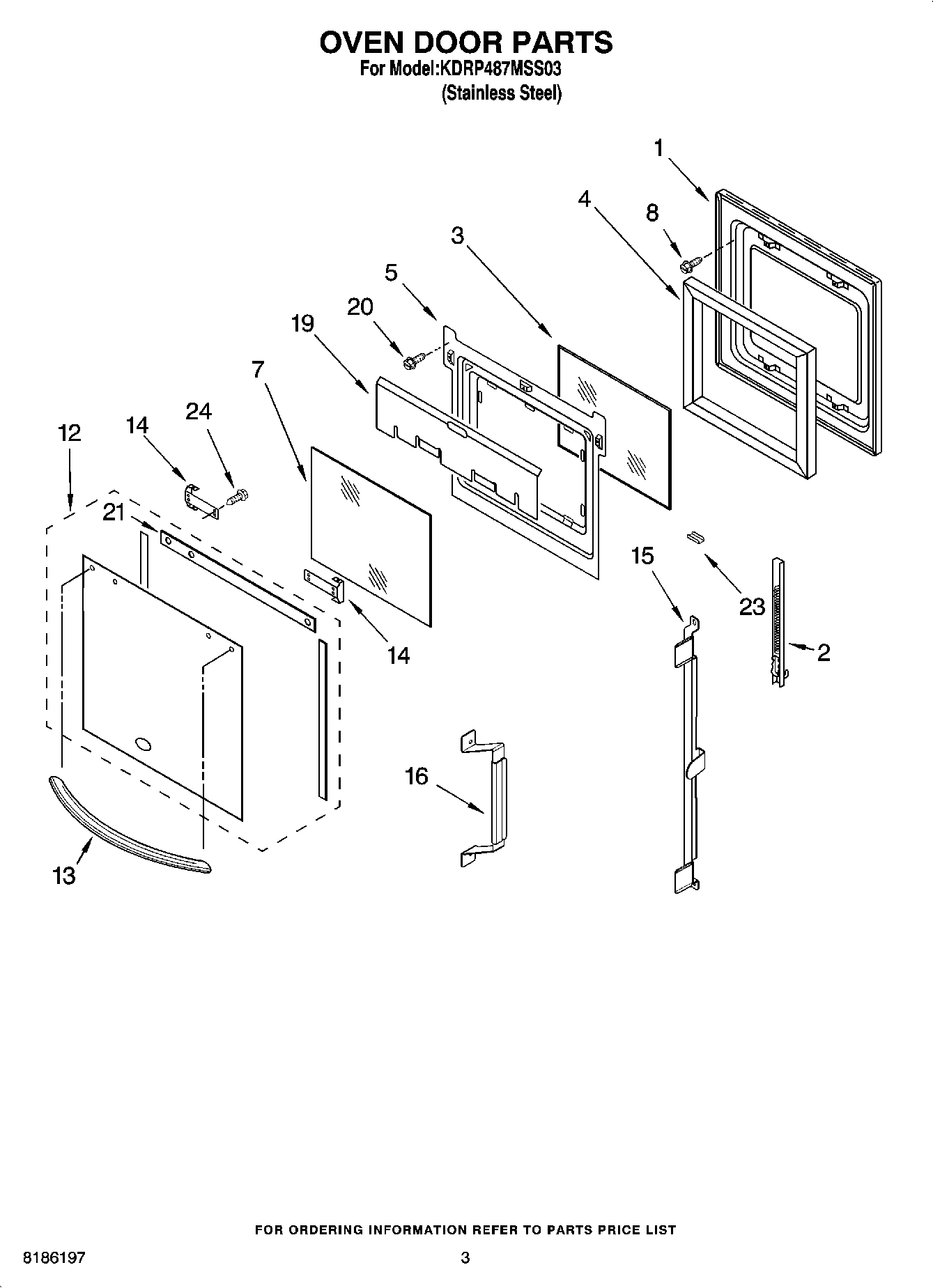

KDRP487MSS03 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
3	Glass, Inner
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	WP4449247 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
12	Door Glass, Assy (S.Steel)
13	Door Handle (Stainless)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket, Central
19	Shield, Heat
20	WP4449809 Whirlpool Screw
21	Seal, Door
23	Retainer, Glass-Clip (Stainless Steel)
23	WP3400832 Whirlpool Screw
24	WPW10132940 Whirlpool Dishwasher Screw
