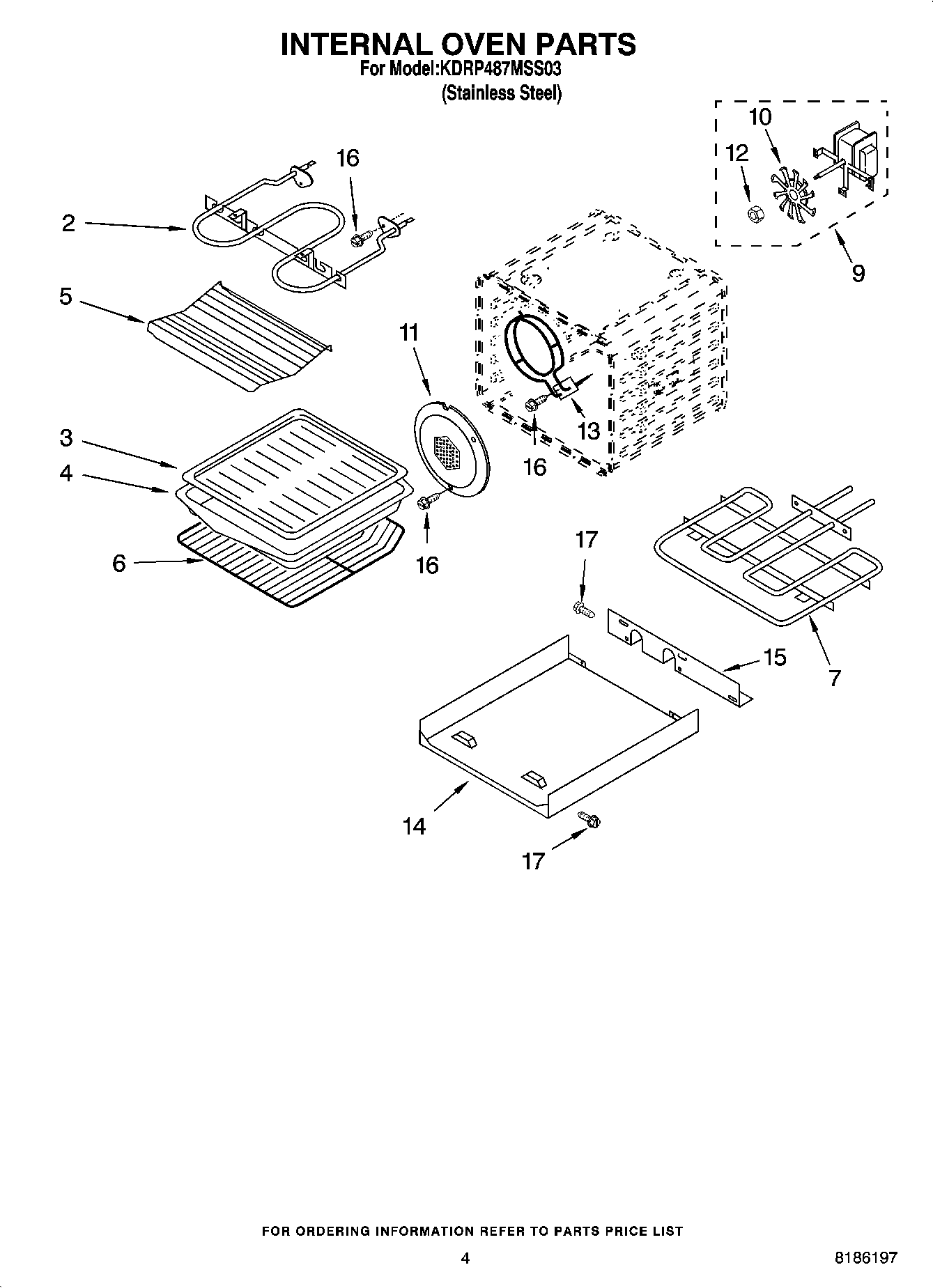

KDRP487MSS03 03 – INTERNAL OVEN PARTS

KDRP487MSS03 03 – INTERNAL OVEN PARTS

Written by

in

KDRP487MSS03 03 – INTERNAL OVEN PARTS

Products

PositionProduct
2WP9760771 Whirlpool Electric Oven Broil Element
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
5Rack, Roasting
64448716 Whirlpool Oven Rack 24"
74451175 Whirlpool Bake Element
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WPW10160821 Whirlpool Fan Cover
12Nut
13WP9760769 Whirlpool Element Assembly
144455035 Whirlpool Bake Tray
154450039 Whirlpool Oven Access Cover
16WP4449154 Whirlpool Screw
17WP4449809 Whirlpool Screw
