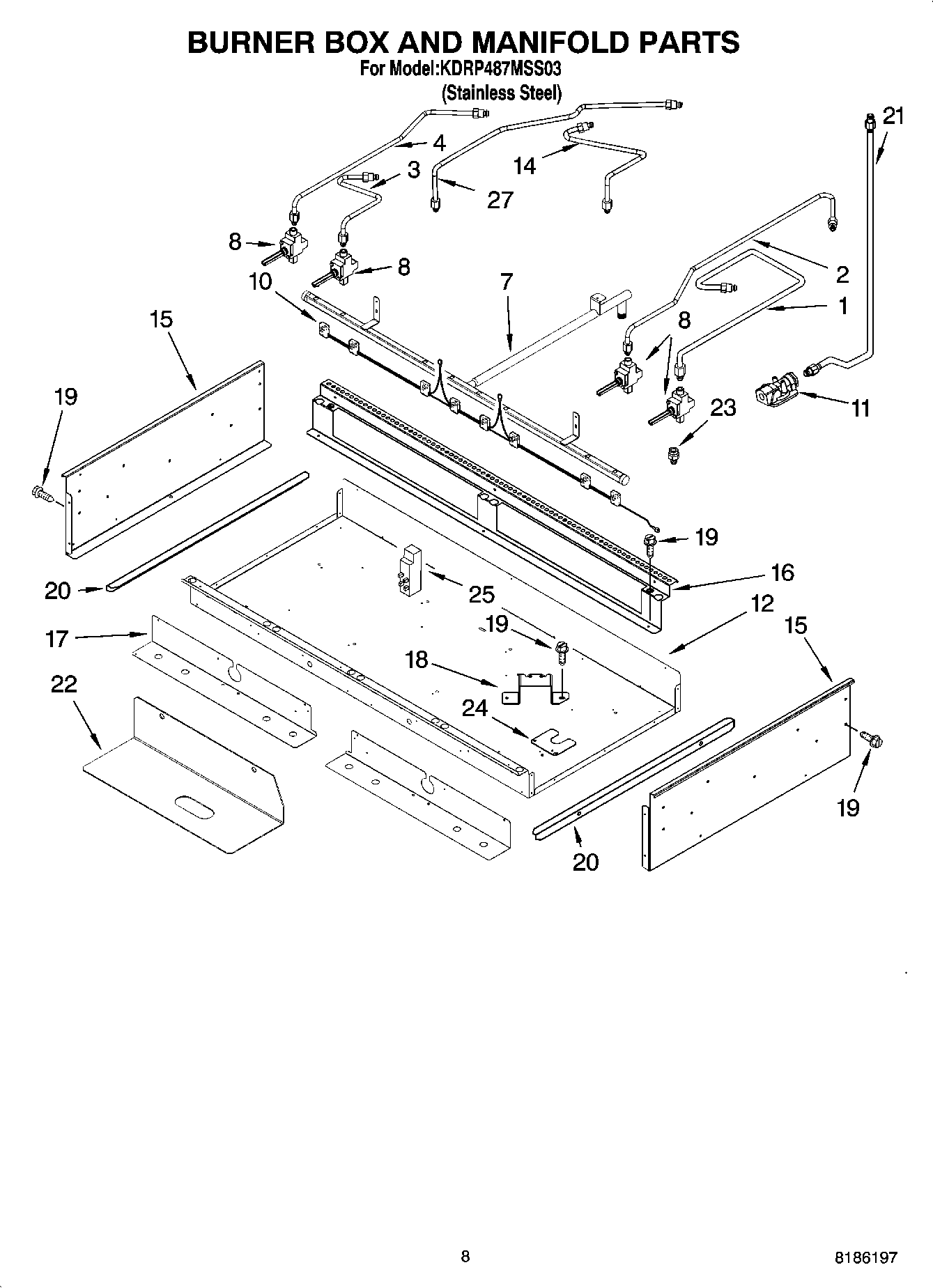

KDRP487MSS03 07 – BURNER BOX AND MANIFOLD PARTS

KDRP487MSS03 07 – BURNER BOX AND MANIFOLD PARTS

Written by

in

KDRP487MSS03 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Tubing, Gas (Center Right)
1Tubing, Gas Burner – RF
1Tubing, Gas (30“)
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – LF
4Tubing, Gas Burner – LR
7Manifold Assembly Right Side
8WP4456816 Whirlpool Burner Valve
8WP3186217 Whirlpool Screw
8Valve, Burner (Bronze)
10Burner Switch & Harness Assembly
10WP3188425 Whirlpool Seal Switch
11WP9759091 Whirlpool Regulator
12Box, Burner
14Tubing, Gas Burner – CF
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
17Support, Cooktop (R.Side)
17Support, Cooktop (L.Side)
18Bracket, Burner
20Rail, Support RH & LH
21Tube, Manifold
22WP3177991 Whirlpool Screw
22Bracket, Control Panel
234453116 Whirlpool Oven Adapter
234453115 Whirlpool Oven Adapter
23WP4450118 Whirlpool Nut
24Cover, Manifold Slot
25WPW10110491 Whirlpool Spark Module
27Tubing, Gas Burner – CR
