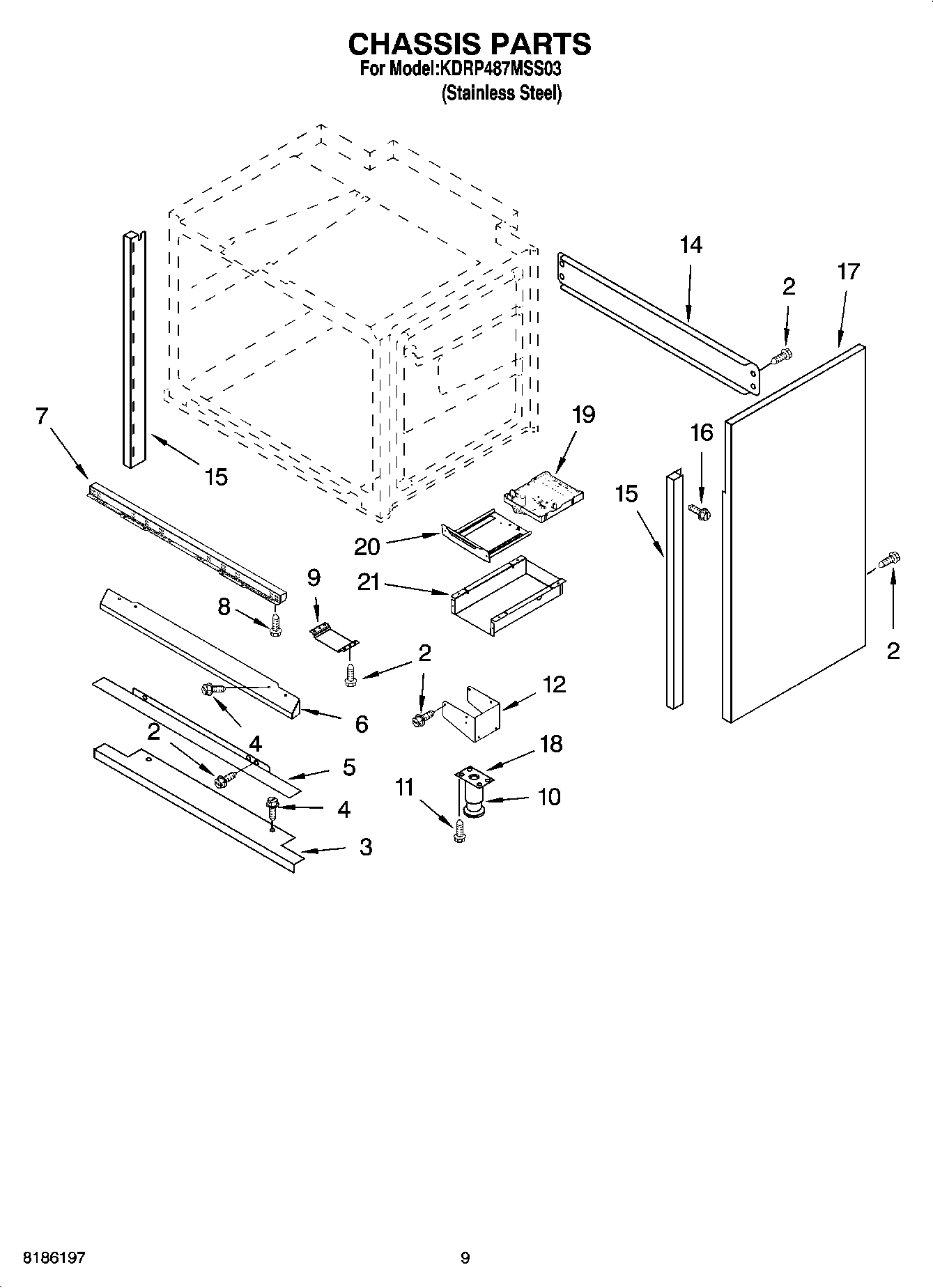

KDRP487MSS03 08 – CHASSIS PARTS, OPTIONAL PARTS

Products

Position	Product
	4456627 Whirlpool Wire Harness
	4453191 Whirlpool Seal
	WPL 8301196
	ADHESIVE, SEAL, RIBBON CABLE
	Harness, Wire (Ignitor 42“)
	Bushing, Fiber
	Bushing
	4396096RB Whirlpool Griddle
	WPL 8302551
	WPL 8301282
	WPL 8301582
	WPL 8301939
	W10138103 Whirlpool Anti-Tip Bracket
	WPL ARI81118A6
	WPL ARI81117A8
	WPL ARI81116A6
	WPL ARI81115A3
	WPL 8302555
	WPL 8302552
	WPL 8302522
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	WP4448444 Whirlpool Grommet
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	Spacer, Harness
	242831 Whirlpool Oven Wire
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
3	Backer, Trim Lower
5	Deflector, Center
6	Vent, Bottom Upper
7	Vent, Center
7	Gasket
8	WP3196557 Whirlpool Screw
9	Bracket, Mounting Regulator
10	WP9759117 Whirlpool Leveling Foot
11	3400518 Whirlpool Oven Foot Mount Screw
12	Gusset
14	Brace, Rear
15	Trim, Front (Left Side)
15	Trim, Front (Right Side)
16	WP3400805 Whirlpool Screw Assembly
17	Side Chassis (Right Side)
17	Side Chassis (Left Side)
18	WP9759118 Whirlpool Mounting Plate
19	Control, Master
20	Box, Control
21	Bracket, Control Box
