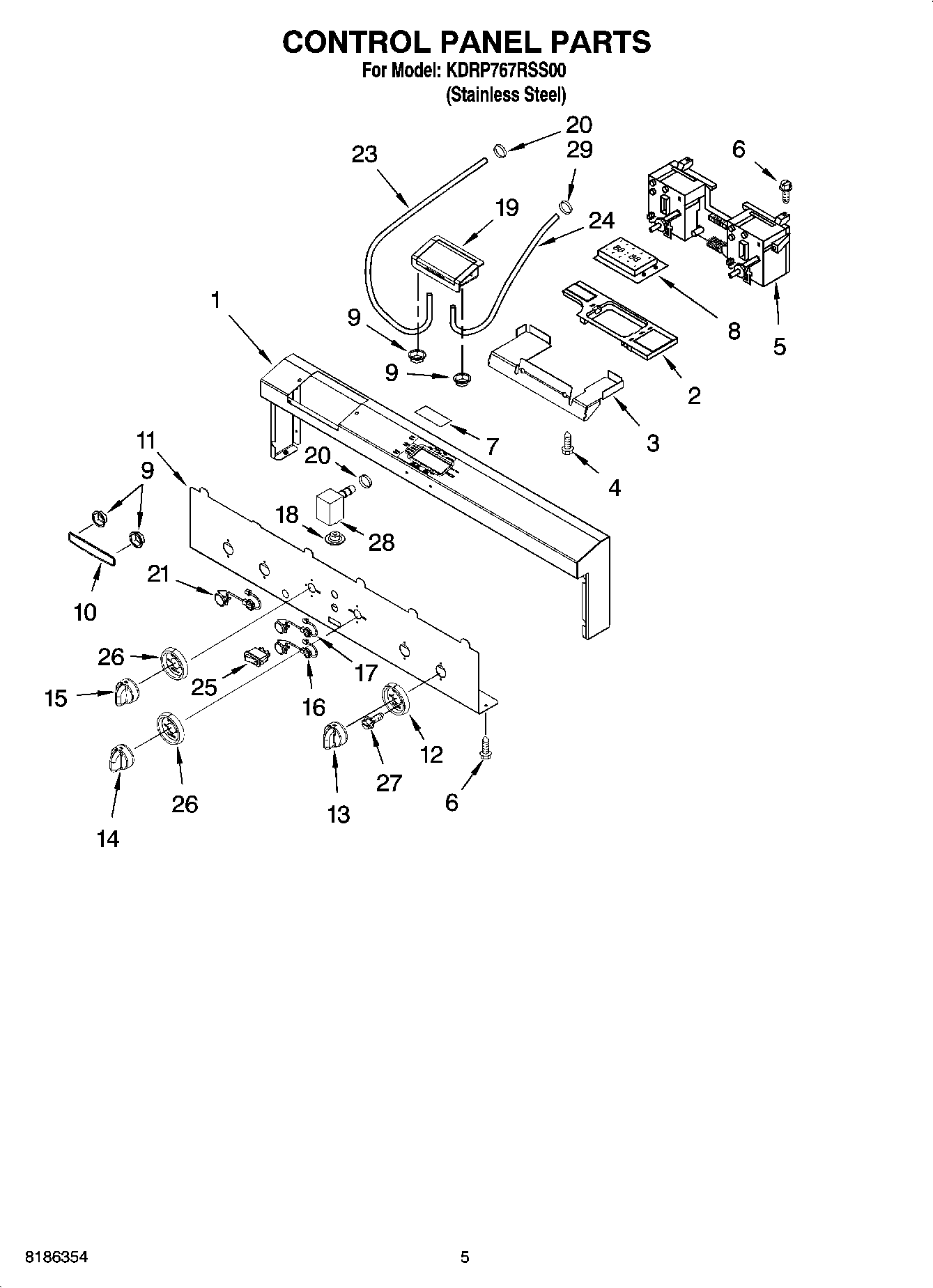

KDRP767RSS00 04 – CONTROL PANEL PARTS

KDRP767RSS00 04 – CONTROL PANEL PARTS

Written by

in

KDRP767RSS00 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Inc. Nuts, Clamps)
2Bracket, Display
3Bracket, Display Mounting
4WP3196557 Whirlpool Screw
5Control, Zodiac
6WPW10132940 Whirlpool Dishwasher Screw
7Glass, Display
8Module, Display
9WP2004333 Whirlpool Refrigerator Nut
10Nameplate (Black)
11Face, Control Panel
12Bezel, Knob
13WPW10078400 Whirlpool Knob Assembly
144455115 Whirlpool Oven Knob
15Knob, Selector
16Wire, Jumper
17WP4452997 Whirlpool PB Switch
18Button, Drain
19Water, Inlet (Inc. Nuts, Clamps)
20WP489503 Whirlpool Refrigerator Clamp
21Button, Cancel
238186364 Whirlpool Oven Hose
248186362 Whirlpool Oven Hose
25WP4452842 Whirlpool Light Switch
26Bezel, T-Stat
27SCREW
28Fitting, Drain (Includes Clamp)
