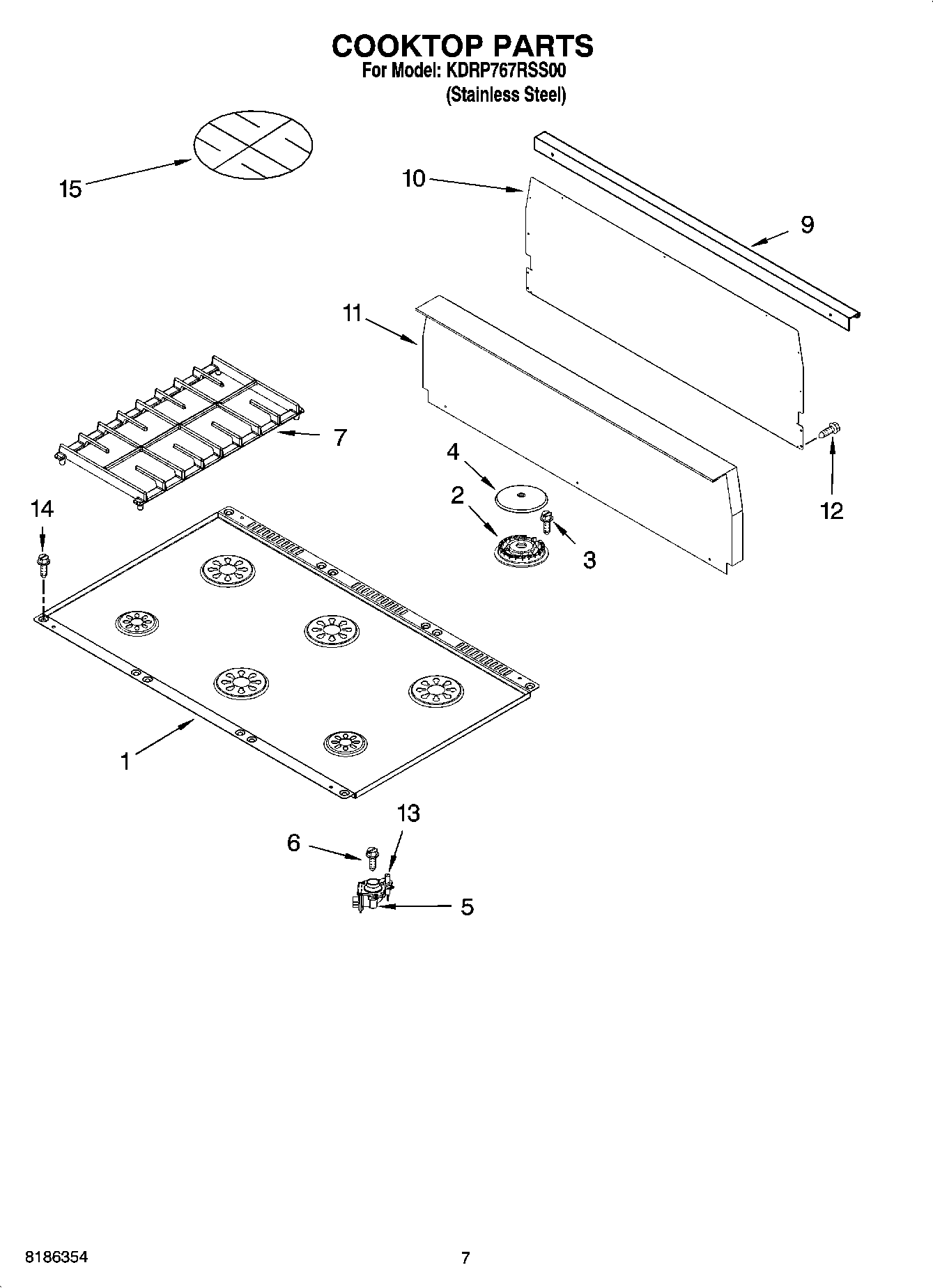

KDRP767RSS00 06 – COOKTOP PARTS

Products

Position	Product
1	Cooktop
2	WP4455979 Whirlpool Range Small Burner Head
2	Burner Head (Turbi)
3	WP3368921 Whirlpool Screw
4	WP8284669 Whirlpool Burner Cap
4	Cap, Burner ((14K))
5	WPW10155786 Whirlpool Surface Burner Orifice Holder
6	WP3177991 Whirlpool Screw
7	Grate, Burner (3)
9	Trim, Island
10	Support, Backsplash
11	Trim, Backsplash
12	WP3400805 Whirlpool Screw Assembly
13	WP9782116 Whirlpool Surface Igniter
14	WP4449743 Whirlpool Screw
15	Plate, Simmer
