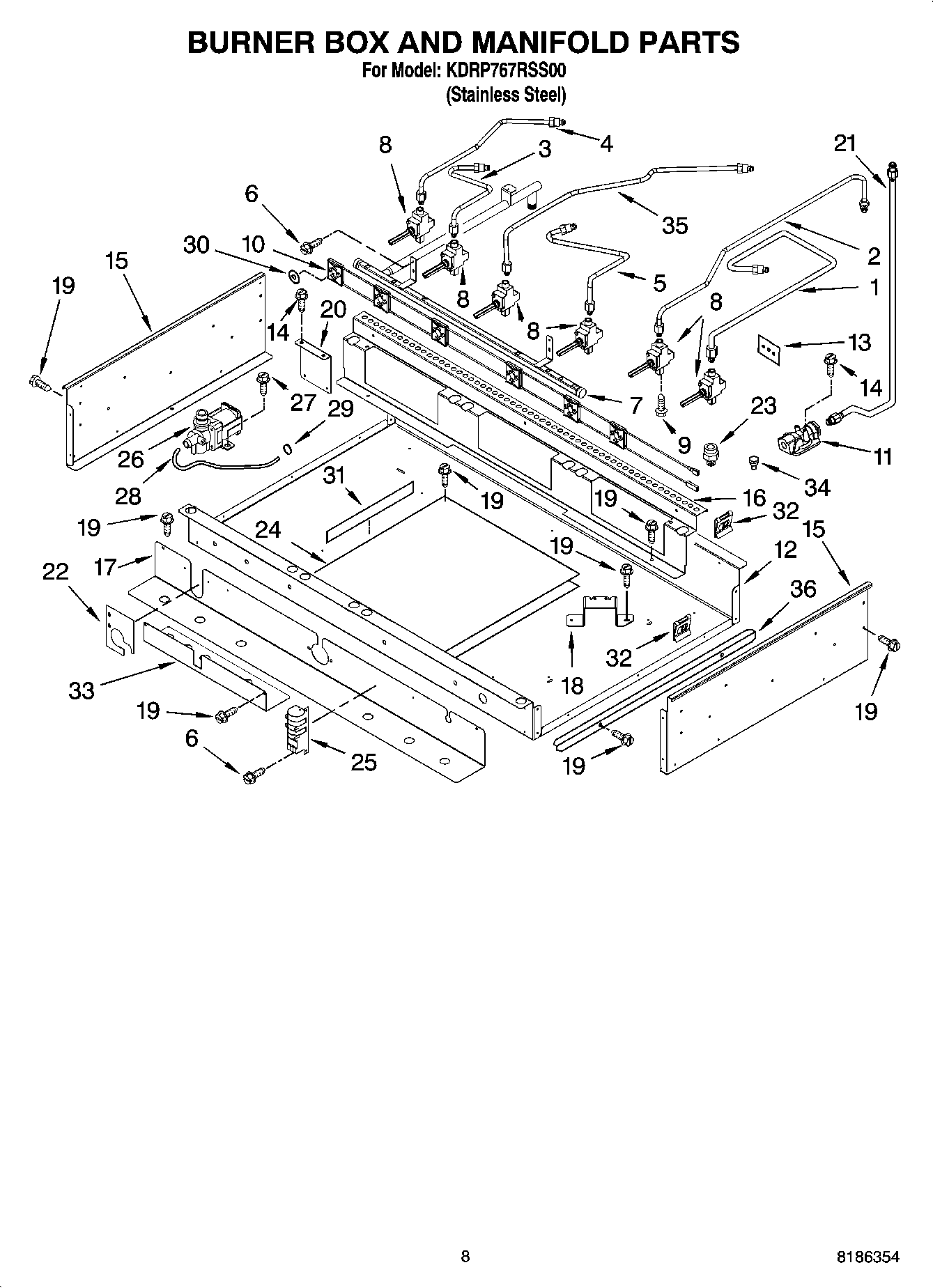

KDRP767RSS00 07 – BURNER BOX AND MANIFOLD PARTS

KDRP767RSS00 07 – BURNER BOX AND MANIFOLD PARTS

Written by

in

KDRP767RSS00 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – LF
4Tubing, Gas Burner – LR
5Tubing, Gas Burner – CF
6WP12990527 Whirlpool Microwave Screw
7Manifold
8WP4456816 Whirlpool Burner Valve
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Box, Burner
13W10491984 Whirlpool Switch Seal
14WP4449809 Whirlpool Screw
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
17Support, Cooktop
18Bracket, Burner
19WP3177991 Whirlpool Screw
20Bracket, Valve
21Tube, Manifold
22Cover, Manifold
234453116 Whirlpool Oven Adapter
234453115 Whirlpool Oven Adapter
24Plate, Burner Holder
25WPW10110486 Whirlpool Spark Module
268186361 Whirlpool Oven Valve Assembly
27WPW10132940 Whirlpool Dishwasher Screw
288186363 Whirlpool Oven Hose
29WP489503 Whirlpool Refrigerator Clamp
30WP3188425 Whirlpool Seal Switch
314453191 Whirlpool Seal
32Nut, Tinnerman (2)
33Cover
34Adapter (Plug, Close)
35Tubing, Gas Burner – CR
36Rail, Support RH & LH
