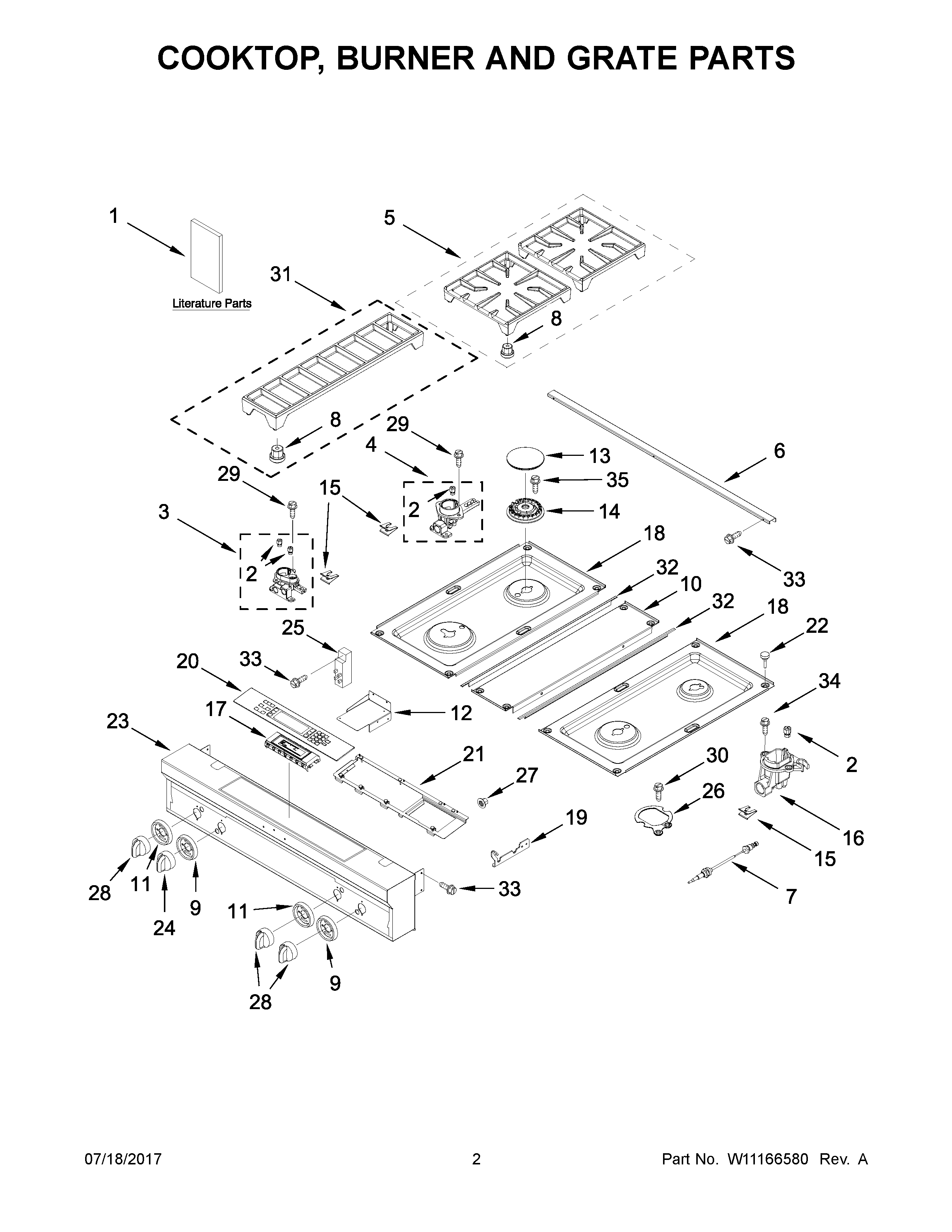

KDRS407VMW01 02 – COOKTOP, BURNER AND GRATE PARTS

KDRS407VMW01 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRS407VMW01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIW10780278 Whirlpool Wire Harness
NIWPL W10283996
NIWPL 8010P08660
NIWPL 8019P01360
NIWP9759877 Whirlpool Retainer
NI8287106 Whirlpool Clip Assembly
NIW10338986 Whirlpool Wire Harness
NIW10494088 Whirlpool Wire Harness
NICORD-POWER
NIW10726866 Whirlpool Wire Harness
NIW10763500 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NIWPL W10766100
NIWP112432 Whirlpool Nut Assembly
NISCREW, ANTI-TIP KIT
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIW10503778 Whirlpool Wire Harness
NIW11544575 Whirlpool Anti-Tip Bracket
NI9757778 Whirlpool Oven Bushing
NI16515 Whirlpool Clip
1CSHEET, TECH (FRENCH)
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH (ENGLISH)
1DINSERT, GRILL PAN
2BW11051480 Whirlpool Orifice Assembly
2CW10791075 Whirlpool Orifice Spud
2W10657945 Whirlpool Orifice Spud
2AW10819958 Whirlpool Orifice Spud
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269218 Whirlpool Trim Top
7W10854967 Whirlpool Surface Igniter
88186321 Whirlpool Range Foot Pads Set of 4
9BEZEL, FRONT
10W10189105 Whirlpool Cooktop
11BEZEL, REAR
12BRACKET, SPARK MODULE
13ACAP-BURNER
13CAP-BURNER
13BCAP-BURNER
14BBURNR-HEAD
14W11106799 Whirlpool Range Burner Base Surface
14ABURNR-HEAD
15A8286863 Whirlpool Oven Clip
15W11684564 Whirlpool Clip Assembly
16W10883622 Whirlpool Orifice Holder
17WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18W10352969 Whirlpool Cooktop Assembly
18AW10352968 Whirlpool Cooktop
19W10130760 Whirlpool Bracket Mounting
19AW10130759 Whirlpool Mounting Bracket
20WPW10116104 Whirlpool Membrane Switch
21W10250476 Whirlpool Mounting Bracket
224448520 Whirlpool Oven Bumper
23WPW10115889 Whirlpool Control Panel
24W11103350 Whirlpool Knob
25WPW10475147 Whirlpool Spark Module
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11103351 Whirlpool Knob Assembly
29WP3177991 Whirlpool Screw
30W10491985 Whirlpool Screw
31W11241670 Whirlpool Grill Grate
32W10271524 Whirlpool Trim Top
33SCREW
34W11676349 Whirlpool Screw
35W11241230 Whirlpool Screw
