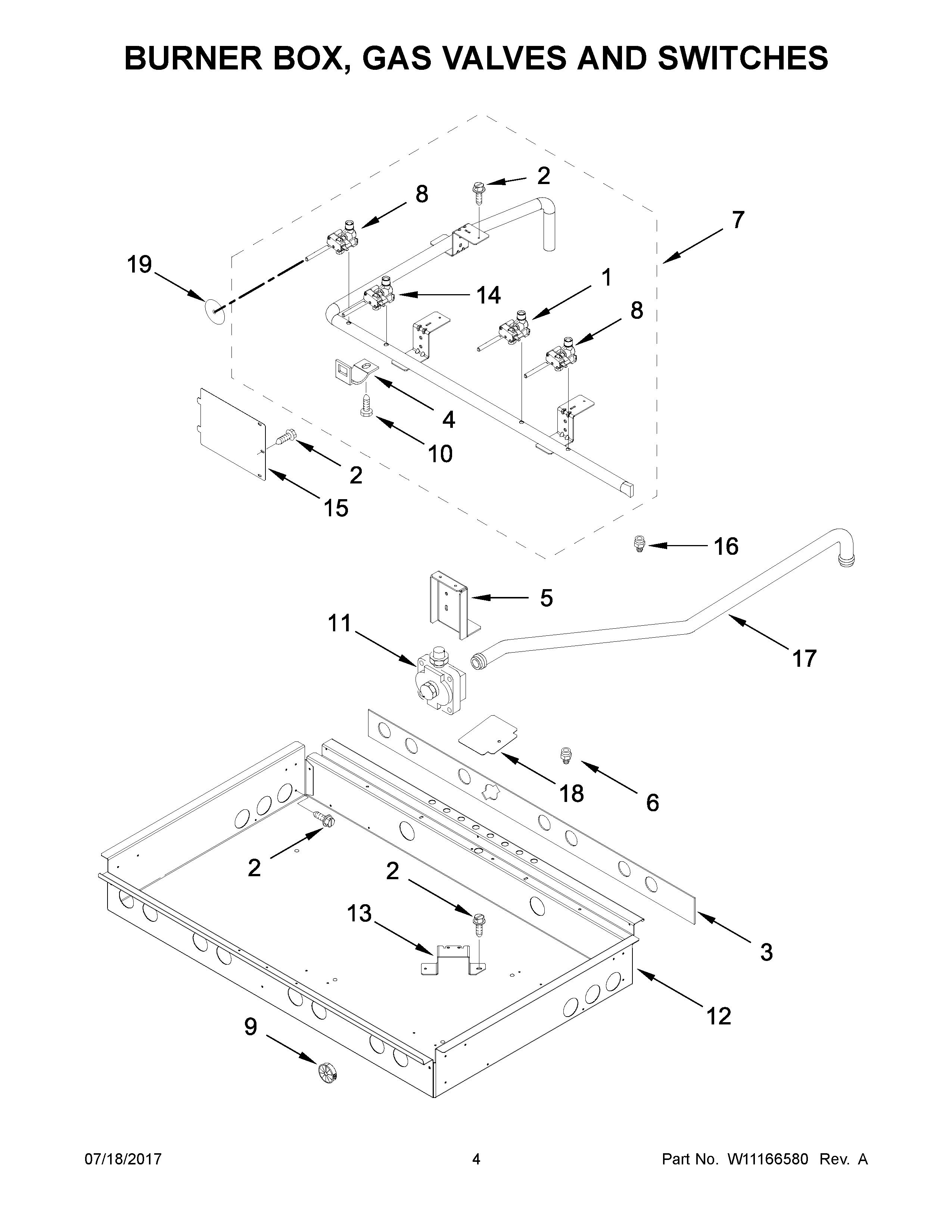

KDRS407VMW01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NIWPW10353133 Whirlpool Gas Tubing
NICABINET (NOT A SERVICEABLE PART)
NIW10353154 Whirlpool Gas Tubing
NIW10353152 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10280797 Whirlpool Gas Tubing
1WPW10385583 Whirlpool Burner Valve
2SCREW
3INSULATION, BURNER BOX
4BRACKET, VALVE
5W10115850 Whirlpool Mounting Bracket
64453115 Whirlpool Oven Adapter
7W10402609 Whirlpool Manifold
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10449141 Whirlpool Regulator
12BOX, BURNER
13W10560553 Whirlpool Mounting Bracket
14WPW10371235 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
164453116 Whirlpool Oven Adapter
17W10452066 Whirlpool Gas Tubing
18W10287036 Whirlpool Access Cover
19W10189177 Whirlpool Seal Switch
